Splitters & T-Connectors—3 · 4 · 5 pin
M12 / 7-8 T-Connector
Download the complete PDF catalogue for full specifications and ordering details.
Part Numbers
M12TF05-7/8F05-7/8M05
7/8T-M03/2F03
7/8T-M04/2F04
7/8T-M05/2F05
Standard cable length 2m (cordsets) / 0.5m (flanges); custom lengths available. B or D coding available on request — replace M12A with M12B or M12D in the part number. Cable jacket (PVC / PUR / High-Flexible / Anti-Welding) and color (GY / BK / OG) options as listed; contact us to confirm stock for a specific configuration.
Technical Parameters
| Rated Voltage | 2500V (M12-7/8) · 600V (7/8-7/8) AC/DC |
| Rated Current | max. 4-13A |
| Cable Connection | Metal nut |
| IP Rating | IP67 (EN 60529) |

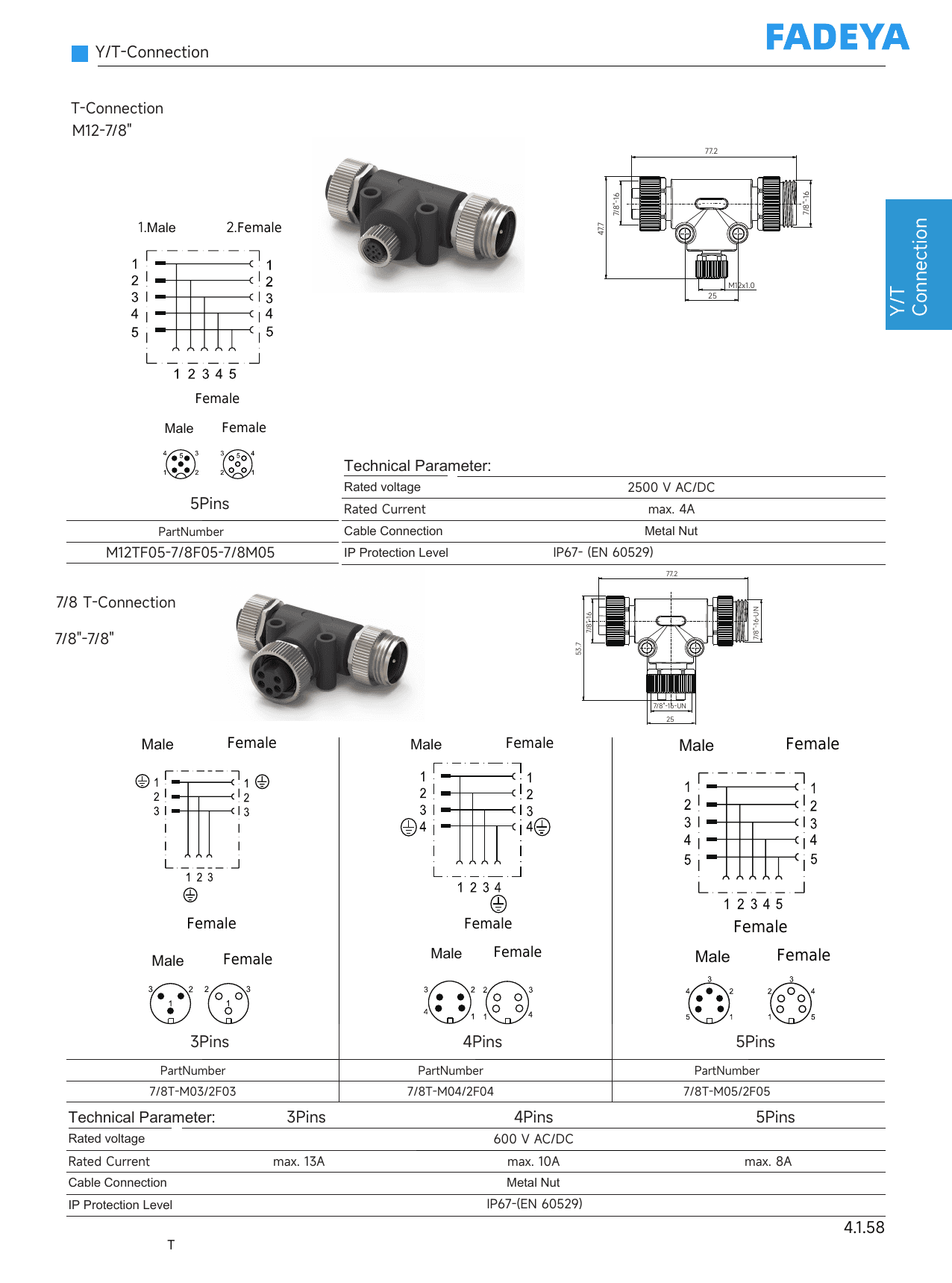

Datasheet
