Field-Wireable ConnectorsA-Coded3 · 4 pin
Field-Wireable Connectors (Screw Type)
On-site assembled M8 connectors, male and female, straight or right-angle, with screw cable clamp.
Download the complete PDF catalogue for full specifications and ordering details.
Part Numbers
M8-M03S
M8-M04S
M8-F03S
M8-F04S
M8-M03A
M8-M04A
M8-F03A
M8-F04A
Cable length is customizable (unit: cm); standard stock lengths 2 m / 5 m. Jackets: PVC, PUR, HF (High-Flex), AW (Anti-Weld). Colors: GR/GY Gray, BK Black, OG/OR Orange, YE Yellow. All ratings per page datasheet.
Technical Parameters
| Rated Voltage | 60 V (3-pin) / 30 V (4-pin) |
| Cross Section | 0.14 ... 0.5 mm² |
| Cable O.D. | 3.5 ... 5 mm |
| Cable Connection | Screw terminals (field-wireable) |
| Locking | Metal knurled nut |
| IP Rating | IP67 |

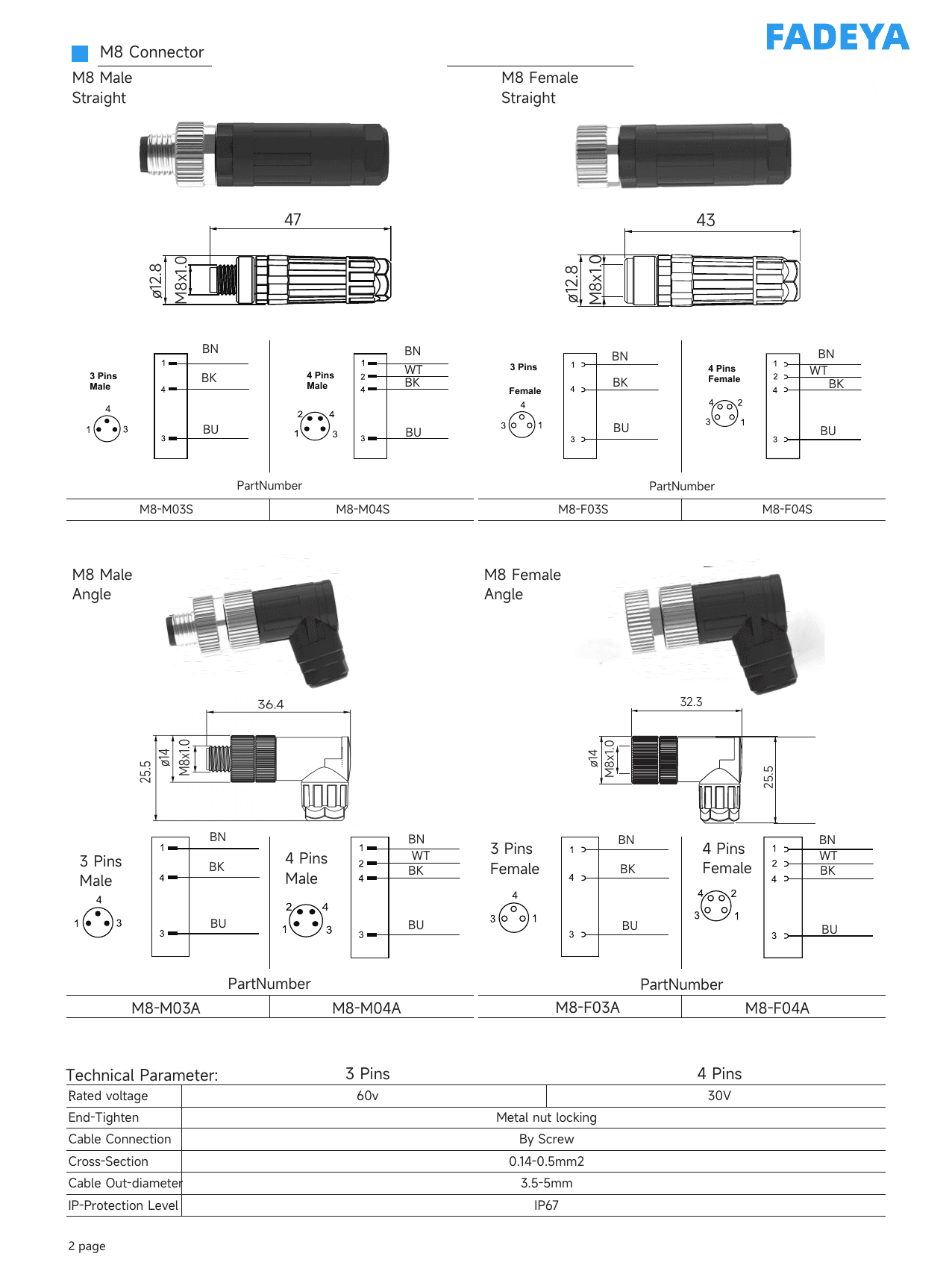

Datasheet
