Field-Wireable ConnectorsA-Coded3 · 4 pinShielded
Field-Wireable Connectors, Shielded
Shielded metal-body M8 field connectors for EMC-sensitive runs, straight, screw-clamp.
Download the complete PDF catalogue for full specifications and ordering details.
Part Numbers
M8SH-M03S
M8SH-M04S
M8SH-F03S
M8SH-F04S
Cable length is customizable (unit: cm); standard stock lengths 2 m / 5 m. Jackets: PVC, PUR, HF (High-Flex), AW (Anti-Weld). Colors: GR/GY Gray, BK Black, OG/OR Orange, YE Yellow. All ratings per page datasheet.
Technical Parameters
| Rated Voltage | 60 V (3-pin) / 30 V (4-pin) |
| Cross Section | 0.25 mm² (AWG24) |
| Cable Connection | Screw terminals, shielded body |
| Locking | Metal knurled nut |
| IP Rating | IP67 |

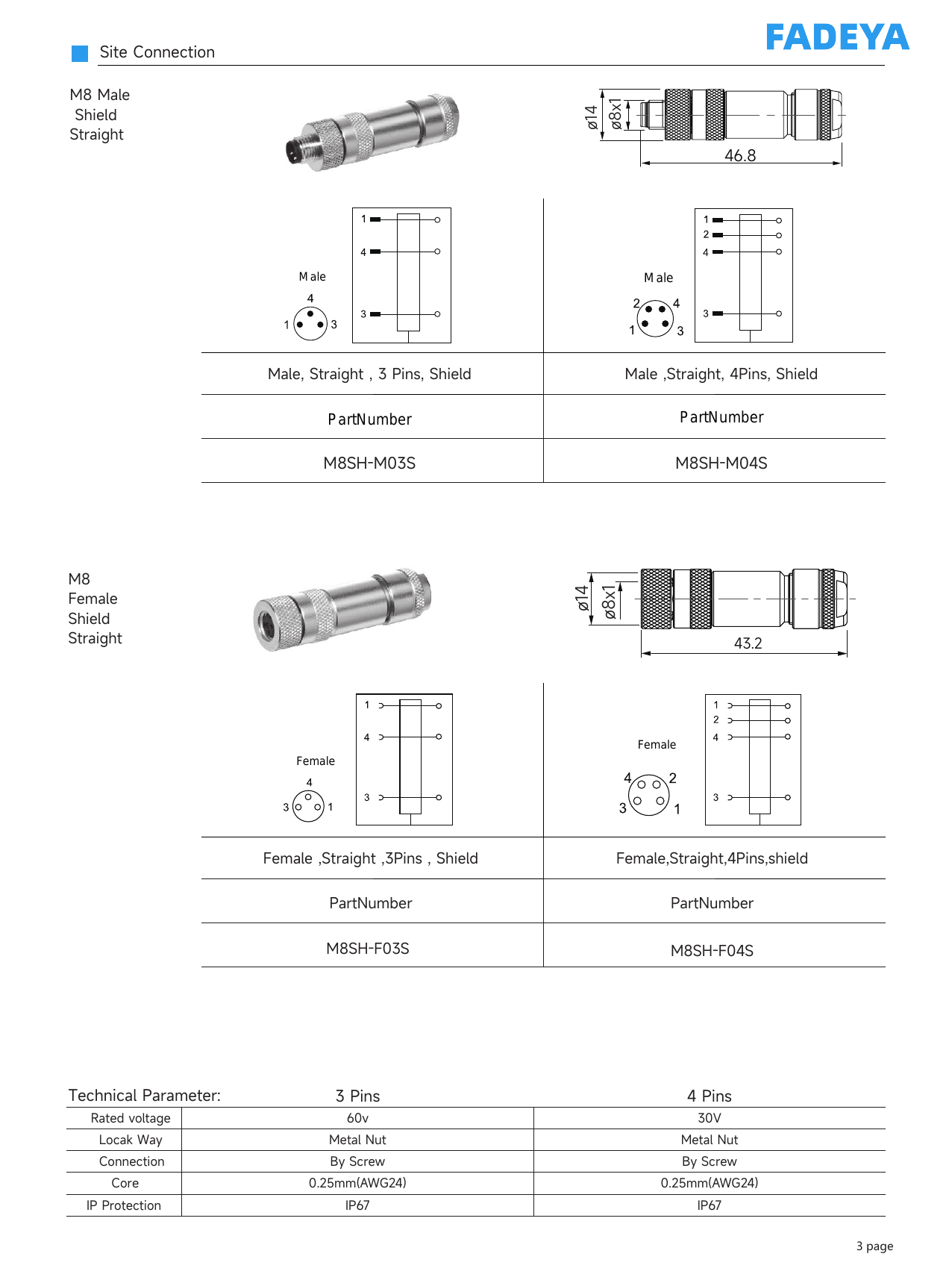

Datasheet
