Panel-Mount Flange & ReceptaclesA-Coded3 · 4 pin
Panel-Mount Flange, Front Mounting (FLF)
Front-mounting M8 panel receptacles, solder (HB) or factory pre-wired in five lead lengths.
Download the complete PDF catalogue for full specifications and ordering details.
Part Numbers
FLF-M8-M03(M8)-HB
FLF-M8-M04(M8)-HB
FLF-M8-F03(M8)-HB
FLF-M8-F04(M8)-HB
FLF-M8-M03(M8)-0.2
FLF-M8-M03(M8)-0.3
FLF-M8-M03(M8)-0.5
FLF-M8-M03(M8)-1.0
FLF-M8-M03(M8)-2.0
FLF-M8-M04(M8)-0.2
FLF-M8-M04(M8)-0.3
FLF-M8-M04(M8)-0.5
Cable length is customizable (unit: cm); standard stock lengths 2 m / 5 m. Jackets: PVC, PUR, HF (High-Flex), AW (Anti-Weld). Colors: GR/GY Gray, BK Black, OG/OR Orange, YE Yellow. All ratings per page datasheet.
Technical Parameters
| Rated Voltage | 60 V AC/DC |
| Rated Current | 4 A max. |
| IP Rating | IP67 (IEC 60529) |
| Operating Temp. | -25 °C ... +85 °C |
| Lead Lengths | HB (solder) / 0.2 · 0.3 · 0.5 · 1.0 · 2.0 m pre-wired |

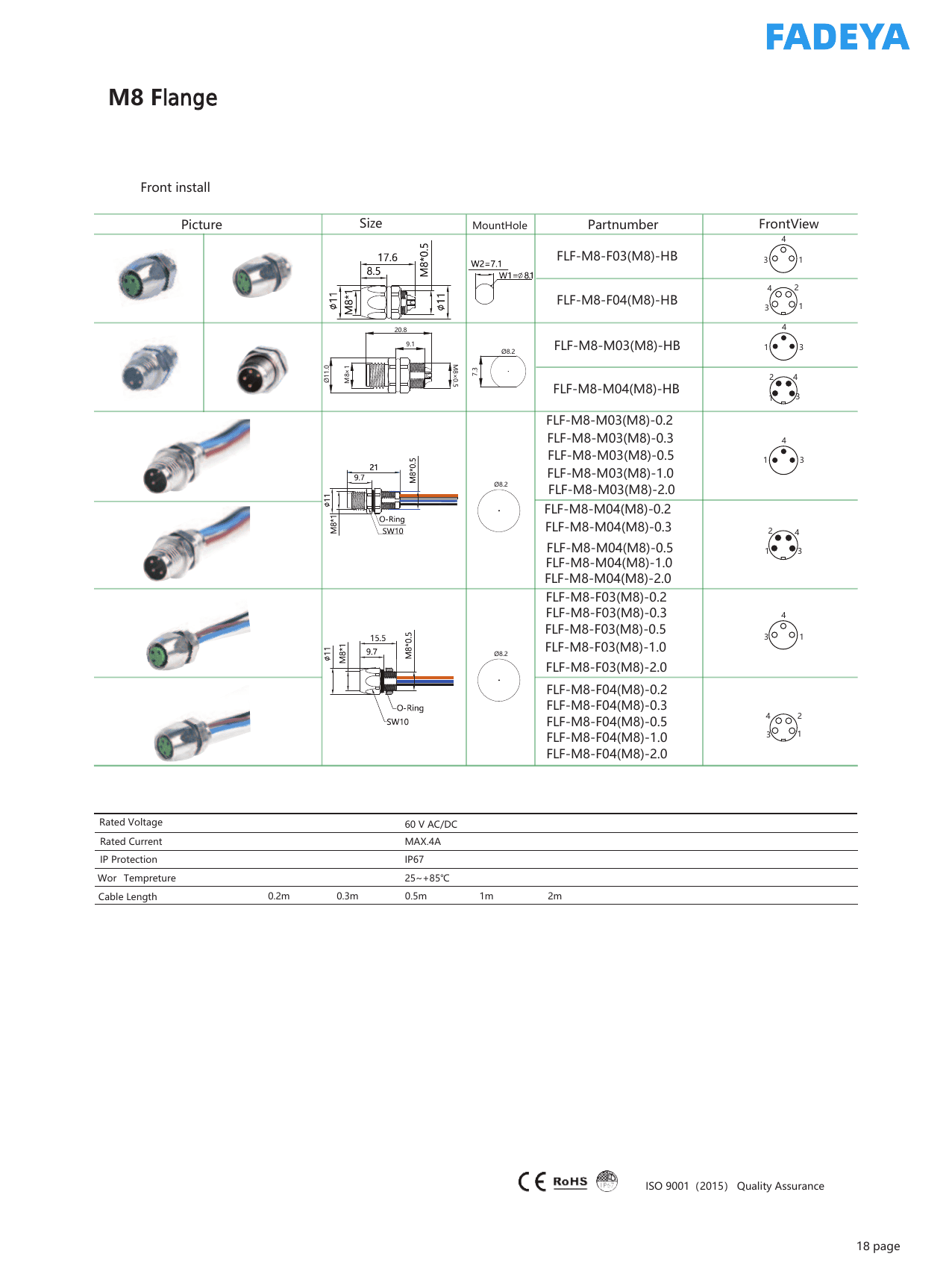

Datasheet
