Panel-Mount Flange & ReceptaclesA-Coded3 · 4 pin
Panel-Mount Flange (FL), Y-Type Receptacle & Metal Spares
Double-ended panel flanges, panel Y-type receptacles, and metal connector body / cover spares.
Download the complete PDF catalogue for full specifications and ordering details.
Part Numbers
FL-M8-M03/F03(M10)
FL-M8-M04/F04(M10)
Y-M8-M04/2F03
Y-M8-M03/2F03-A
Y-M8-M03/2F03-B
M8-M-FCG/J
M8-F-FCG/J
Cable length is customizable (unit: cm); standard stock lengths 2 m / 5 m. Jackets: PVC, PUR, HF (High-Flex), AW (Anti-Weld). Colors: GR/GY Gray, BK Black, OG/OR Orange, YE Yellow. All ratings per page datasheet.
Technical Parameters
| Rated Voltage | 60 V AC/DC |
| Rated Current | 4 A max. |
| IP Rating | IP67 |
| Note | FL = panel-mount double-end · Y = panel Y-type · M8-M-FCG/J metal body · M8-F-FCG/J metal cover |

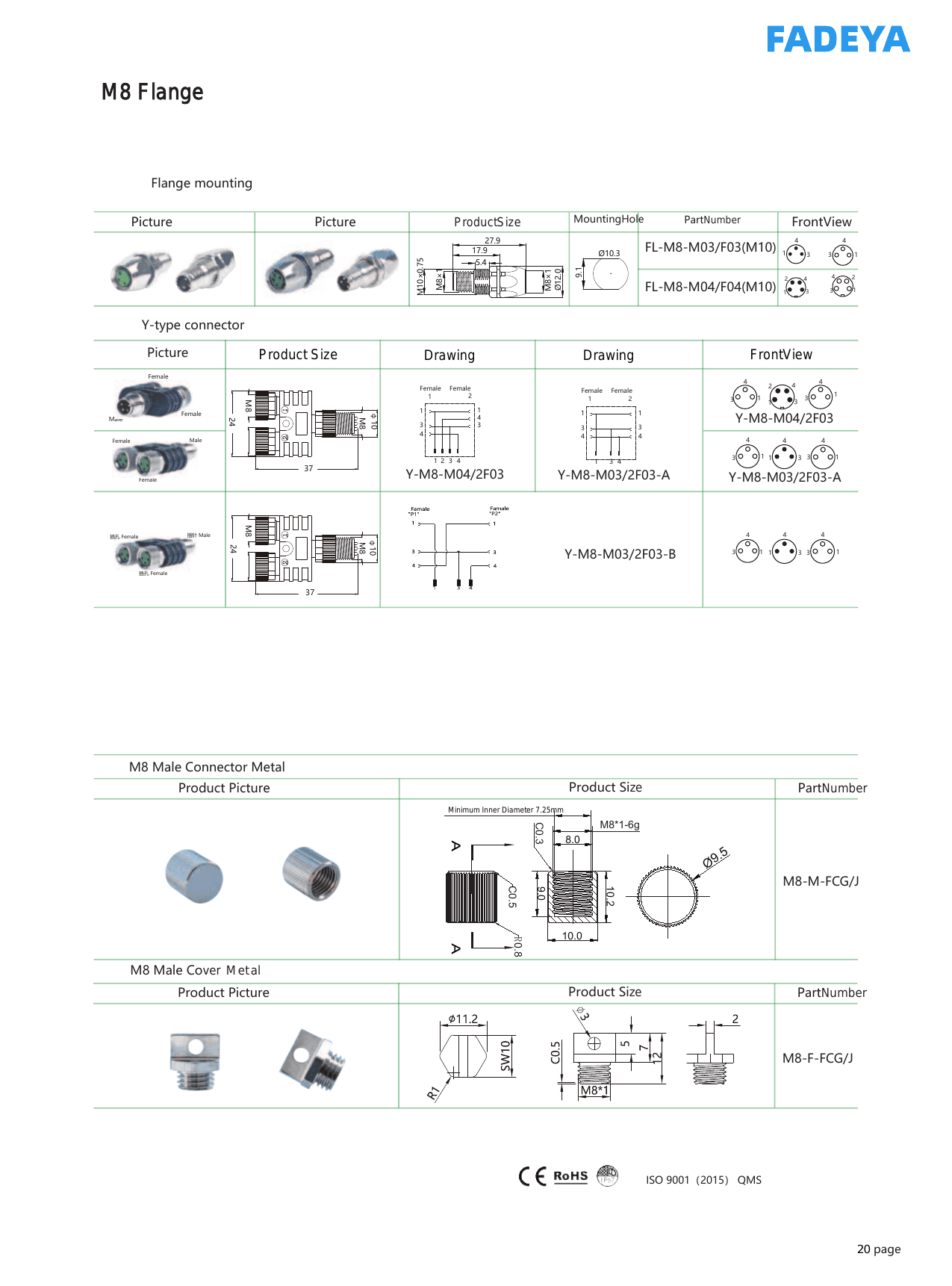

Datasheet
