Rotating Brackets
Rotating Ball Bracket
Download the complete PDF catalogue for full specifications and ordering details.
Part Numbers
FA-RGQMX-23A
FA-RGQMX-28A
FA-RGQMX-36A
FA-RGQMX-48A
FA-RGQMX-56A
FA-RGQMX-70A
Sizes are designated by hose ID (e.g. 36 = Ø36 mm). Brackets, accessories and telescopic boxes are selected to match the chosen hose diameter. Working temperature -40 °C to +105 °C across the range.
Technical Parameters
| Material | Modified Nylon + Aluminum (6061) |
| Part Code | FA-RGQMX-A |
| Working Temperature | -40 °C to +105 °C |
| Color | Black |
| Fits Hose | Hose Ø23–70 mm |
| Base Hole Spacing | 50 mm |
| Features | Follows the robot's omnidirectional rotation; abrasion-resistant, high rigidity |
| Certification | CE · RoHS |

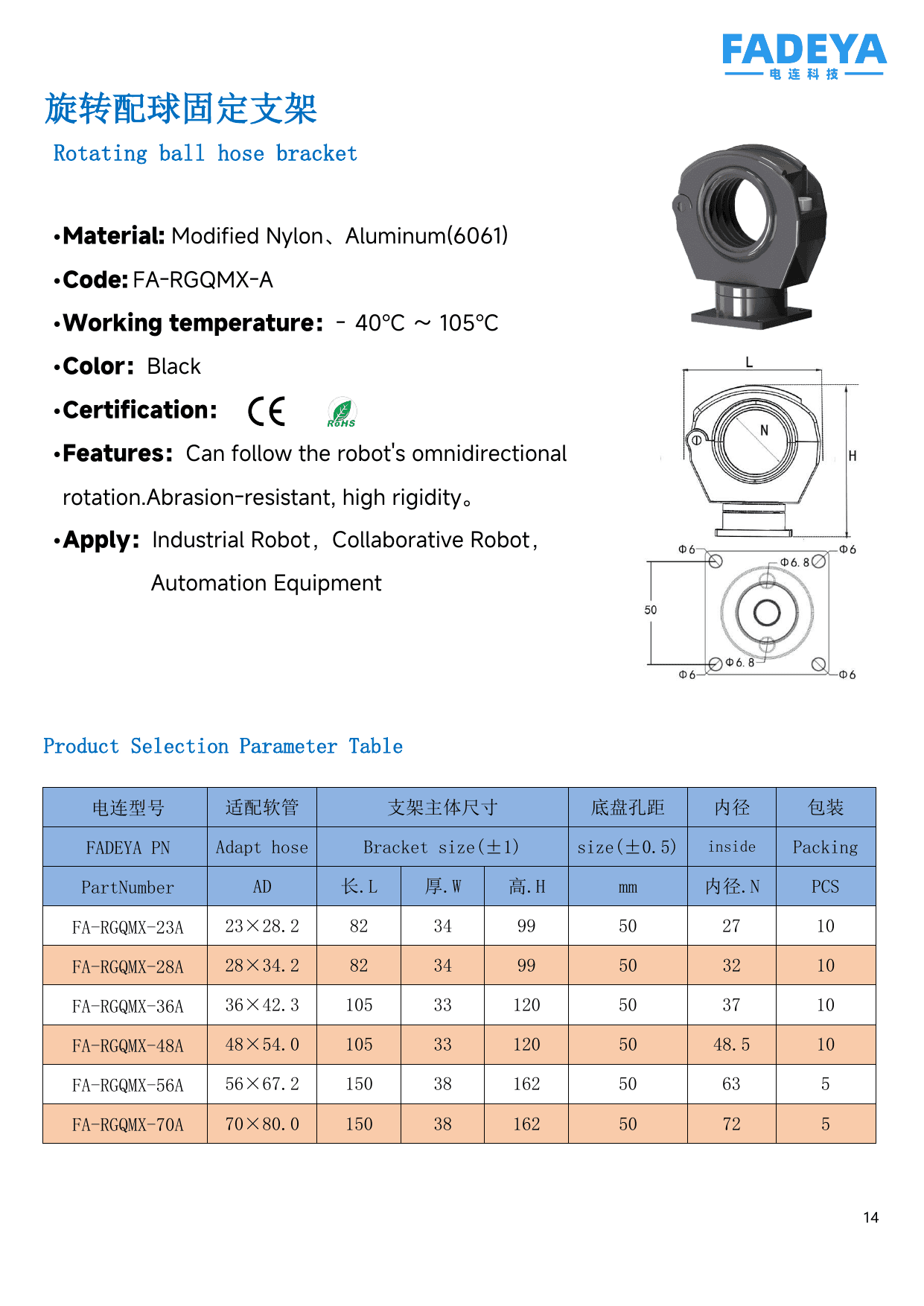

Datasheet
