Collaborative Robot Brackets
Collaborative Positioning Bracket
Download the complete PDF catalogue for full specifications and ordering details.
Part Numbers
FA-RGCPW-23A
FA-RGCPW-28A
FA-RGCPW-36A
FA-RGCPW-48A
FA-RGCPW-56A
FA-RGCPW-70A
Sizes are designated by hose ID (e.g. 36 = Ø36 mm). Brackets, accessories and telescopic boxes are selected to match the chosen hose diameter. Working temperature -40 °C to +105 °C across the range.
Technical Parameters
| Material | Modified Nylon + Stainless Steel |
| Part Code | FA-RGCPW-A |
| Working Temperature | -40 °C to +105 °C |
| Color | Black |
| Fits Hose | Hose Ø23–70 mm |
| Locking Range | Cobot arm Ø56–174 mm (selectable) |
| Features | Clamps onto the cobot arm to lock hose position |
| Availability | Some sizes are under development — confirm availability with Fadeya sales. |
| Certification | CE · RoHS |

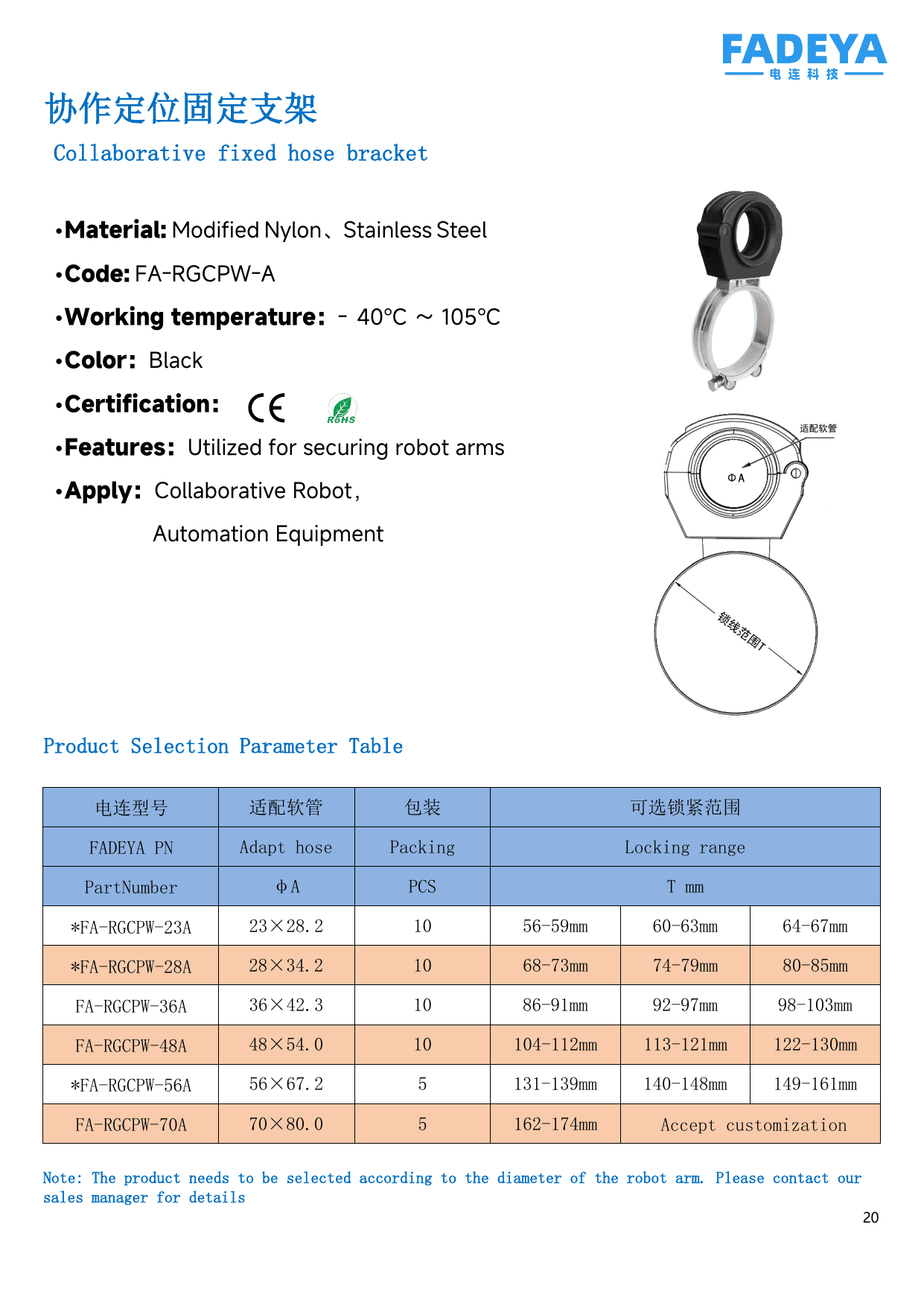

Datasheet
