Aluminum Brackets
Aluminum Fixed Bracket
Download the complete PDF catalogue for full specifications and ordering details.
Part Numbers
FA-RGLV-36/48A
FA-RGLV-56/70A
Sizes are designated by hose ID (e.g. 36 = Ø36 mm). Brackets, accessories and telescopic boxes are selected to match the chosen hose diameter. Working temperature -40 °C to +105 °C across the range.
Technical Parameters
| Material | Aluminum (6061) |
| Part Code | FA-RGLV-A |
| Working Temperature | -40 °C to +105 °C |
| Color | Black |
| Fits Hose | Hose clamp R36/48–R56/70 |
| Features | Light weight, high strength |
| Certification | CE · RoHS |

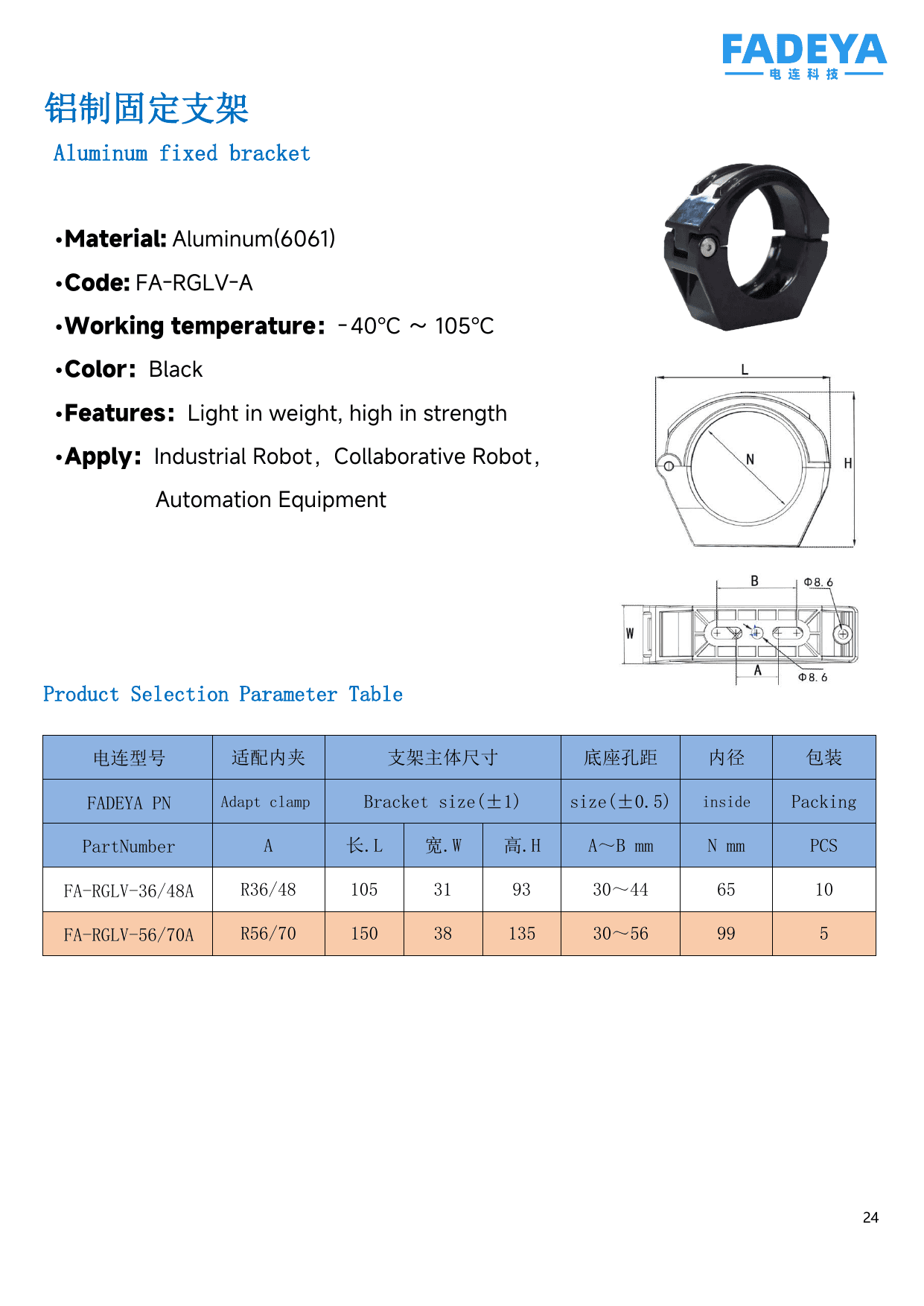

Datasheet
