Cable Splitters
Socket Internal Splitter
Download the complete PDF catalogue for full specifications and ordering details.
Part Numbers
FA-RGFX-28A
FA-RGFX-36/48A
FA-RGFX-56/70A
Sizes are designated by hose ID (e.g. 36 = Ø36 mm). Brackets, accessories and telescopic boxes are selected to match the chosen hose diameter. Working temperature -40 °C to +105 °C across the range.
Technical Parameters
| Material | Modified Rubber |
| Part Code | FA-RGFX-A |
| Working Temperature | -40 °C to +105 °C |
| Color | Black |
| Hole Pattern | Solid / 18·16·13·10·8·6 / multi-hole standard versions (customizable) |
| Features | Front-end sleeve assembly with integrated fixed bracket; high rigidity, friction- and corrosion-resistant |
| Certification | CE · RoHS |

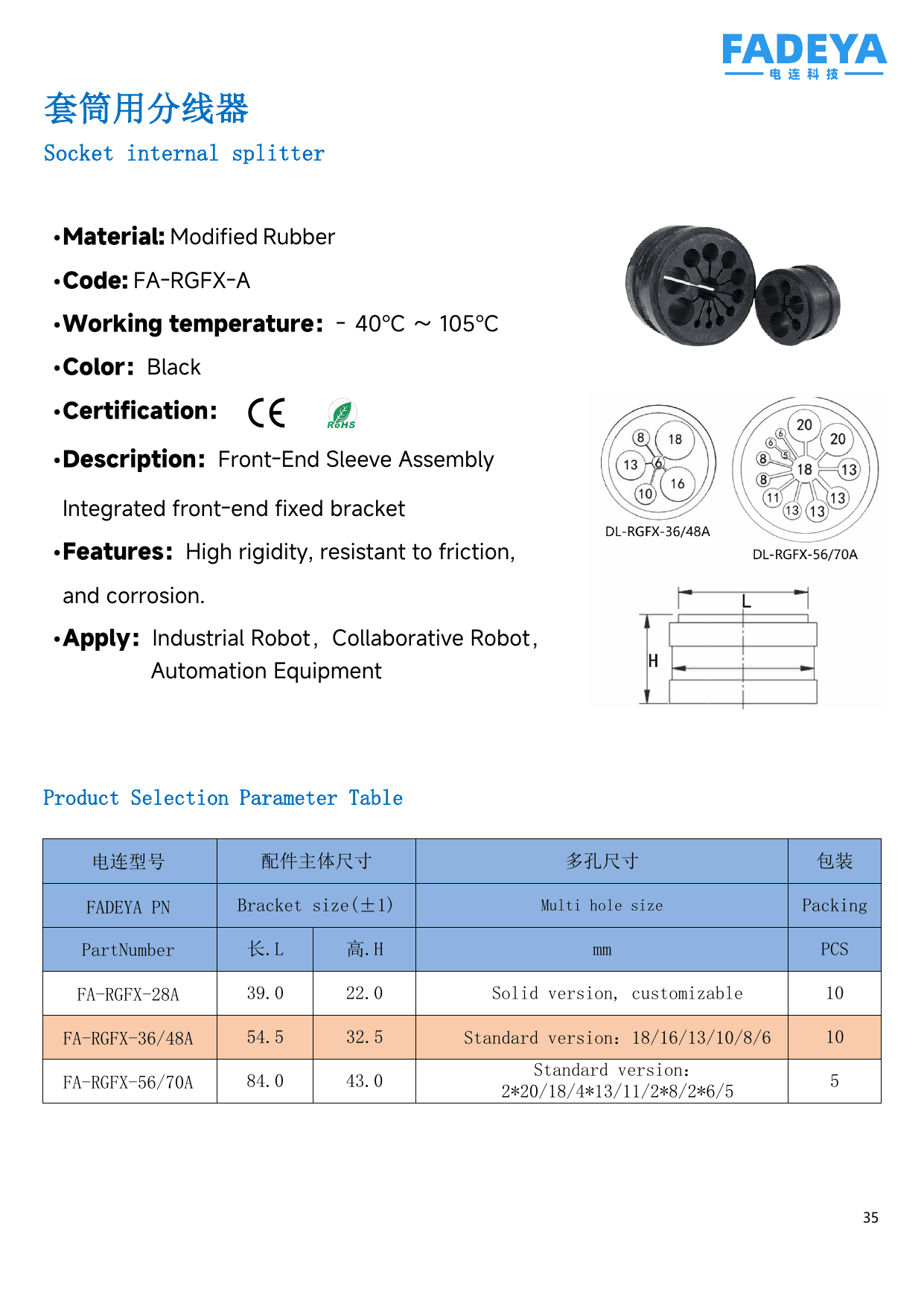

Datasheet
