Three-Axis Telescopic Spring
Download the complete PDF catalogue for full specifications and ordering details.
Part Numbers
FA-RGSC-36
FA-RGSC-48
FA-RGSC-70
Sizes are designated by hose ID (e.g. 36 = Ø36 mm). Brackets, accessories and telescopic boxes are selected to match the chosen hose diameter. Working temperature -40 °C to +105 °C across the range.
Technical Parameters
| Material | Silicon-manganese spring steel (60Si2Mn) |
| Part Code | FA-RGSC |
| Color | Black |
| Size Range | ID 52–90 mm · OD 59–100 mm |
| Travel | Expansion 300–400 mm |
| Free Length | 400 / 500 / 800 mm |
| Features | Excellent rebound, holds extended or retracted state long-term; corrosion- and bend-resistant |

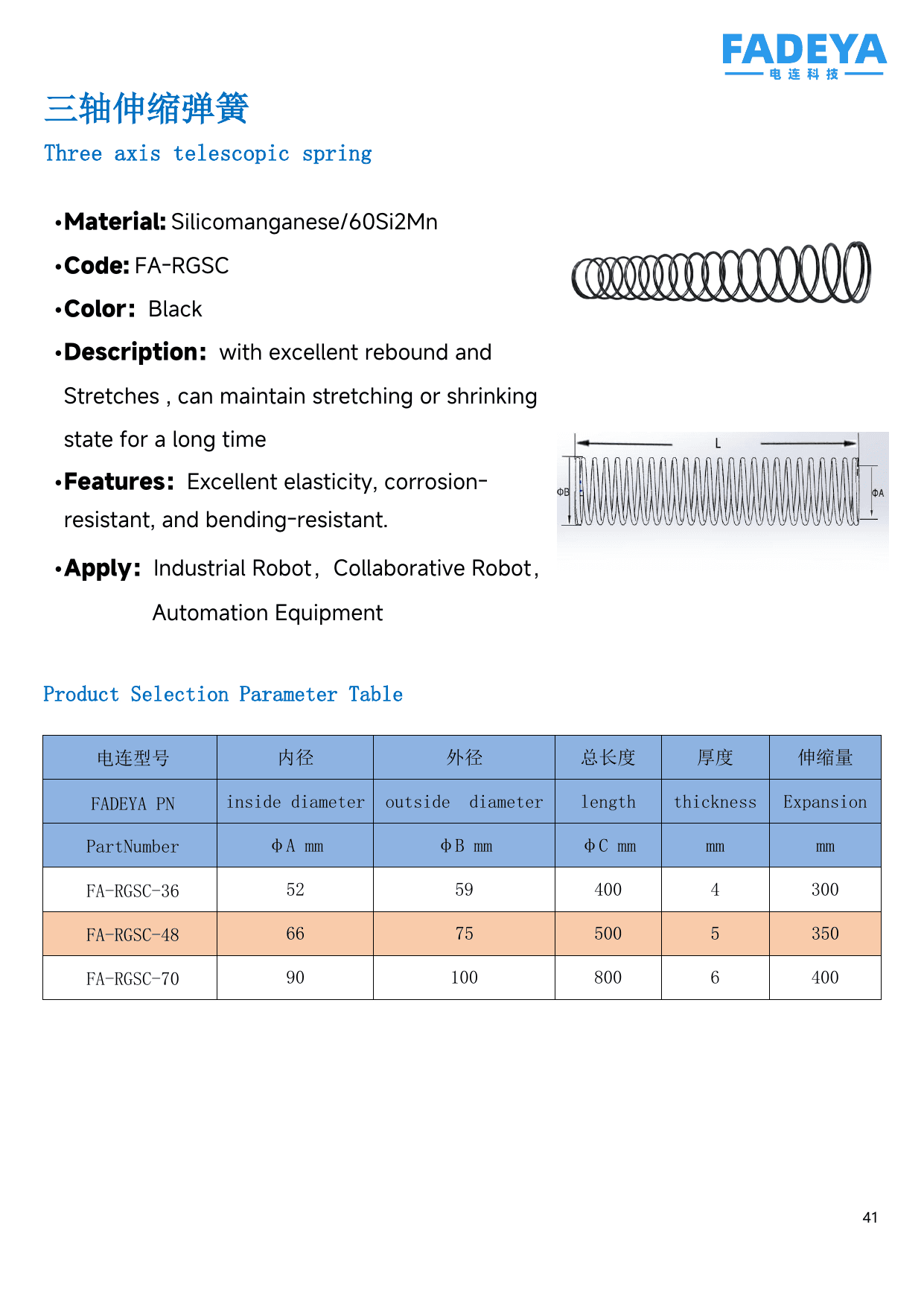

Datasheet
