Robot Drag Chain
Universal Robot Drag Chain
Download the complete PDF catalogue for full specifications and ordering details.
Part Numbers
FA-RGTL-37B
FA-RGTL-47B
FA-RGTL-47K
FA-RGTL-57B
FA-RGTL-57K
FA-RGTL-65B
FA-RGTL-65K
Sizes are designated by hose ID (e.g. 36 = Ø36 mm). Brackets, accessories and telescopic boxes are selected to match the chosen hose diameter. Working temperature -40 °C to +105 °C across the range.
Technical Parameters
| Material | Modified Nylon |
| Part Code | FA-RGTL |
| Color | Black |
| Size Range | ID 37–65 mm · OD 43–79 mm |
| Bend Radius | 75–110 mm (static) |
| Structure | Closed type (B) or side-opening type (K); matching bracket RGTLZ + connector RGTLQ |
| Features | Wear-resistant, cable protection, 3D angle adjustable |

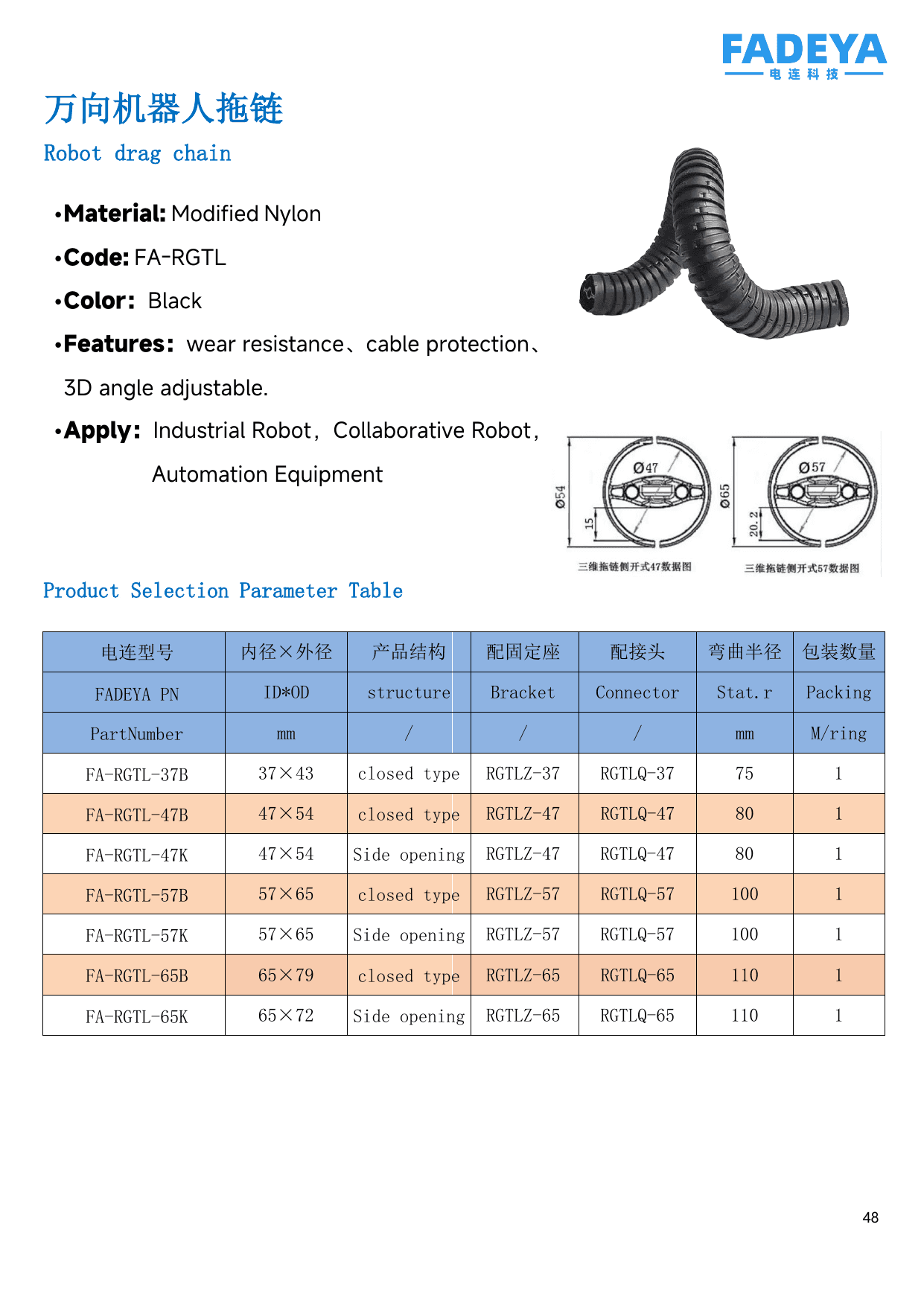

Datasheet
