Telescopic Boxes
Rail Spring Telescopic Box
Download the complete PDF catalogue for full specifications and ordering details.
Part Numbers
FA-RGDG-36A
FA-RGDG-48A
FA-RGDG-56A
FA-RGDG-70A
Sizes are designated by hose ID (e.g. 36 = Ø36 mm). Brackets, accessories and telescopic boxes are selected to match the chosen hose diameter. Working temperature -40 °C to +105 °C across the range.
Technical Parameters
| Material | Galvanized steel sheet |
| Part Code | FA-RGDG-A |
| Fits Hose | Hose Ø36–70 mm |
| Hole Spacing | 30 mm |
| Features | Built-in rails and springs with excellent rebound; used with a fixed bracket |
| Note | Suggested set: 1 rail box, 1 guide bracket, 2 ball brackets, 1 extension sheet metal. |

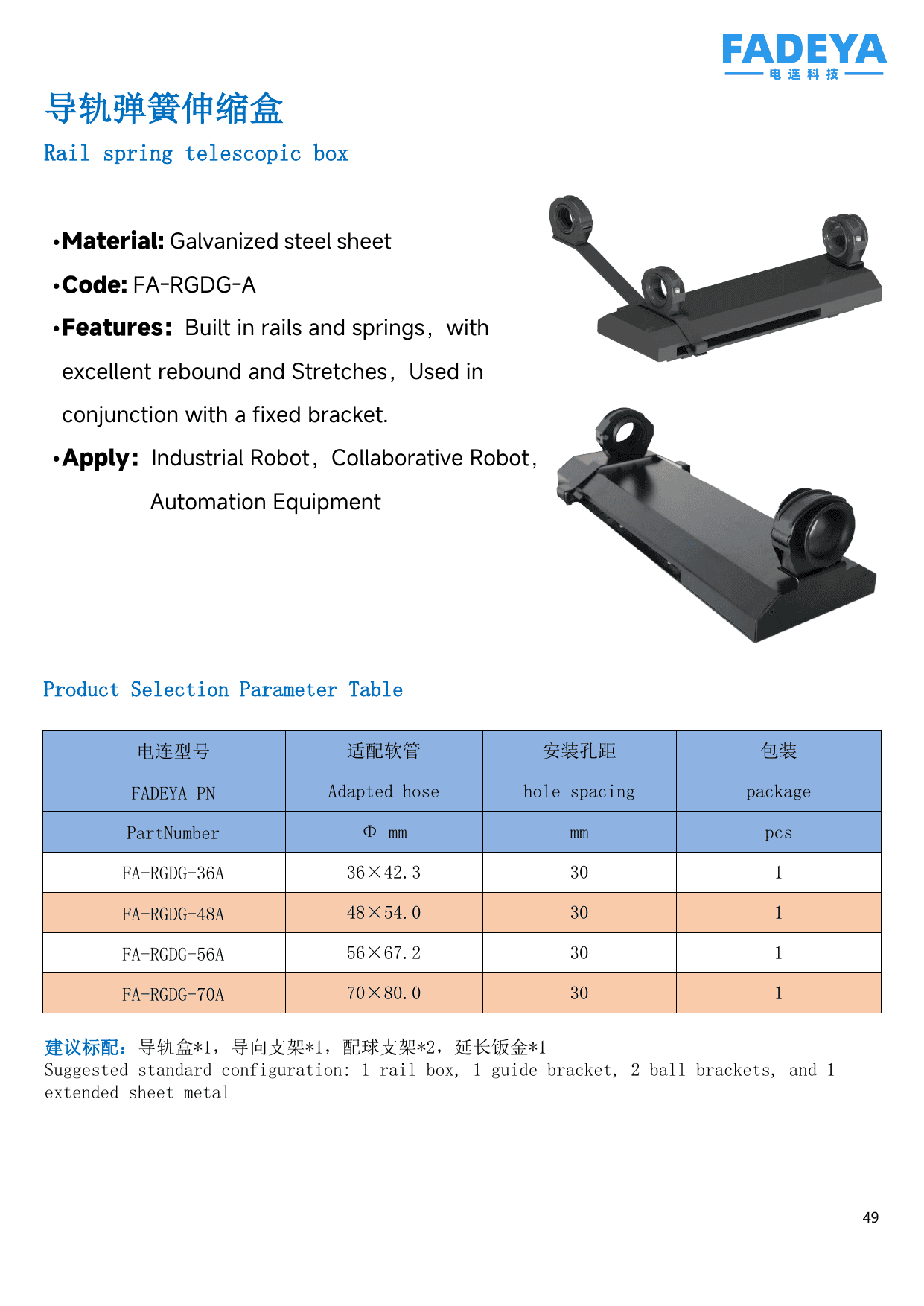

Datasheet
