DeviceNetA5 pinShieldedDeviceNet
DeviceNet M12 A-Code Double-Ended Cable (Male–Female, Shielded)
Download the complete PDF catalogue for full specifications and ordering details.
Part Numbers
M12A-M05S/F05S-2.0PUR/VT-DN
M12A-M05S/F05S-2.0PVC/GY-DN
M12A-M05A/F05A-2.0PUR/VT-DN
M12A-M05A/F05A-2.0PVC/GY-DN
Cable lengths can be customized. Coding follows protocol standard: PROFIBUS = B-Code (violet), DeviceNet = A-Code/7-8 (CAN), PROFINET/EtherNet-IP/EtherCAT = D-Code (green, CAT5e), 10G = X-Code (CAT6A).
Technical Parameters
| Rated Voltage | 125 V |
| Working Temp. | -25...+80°C |
| Connection | PreMould |
| Wire Gauge | 2 x 24AWG + 2 x 22AWG |
| IP Rating | IP67 |

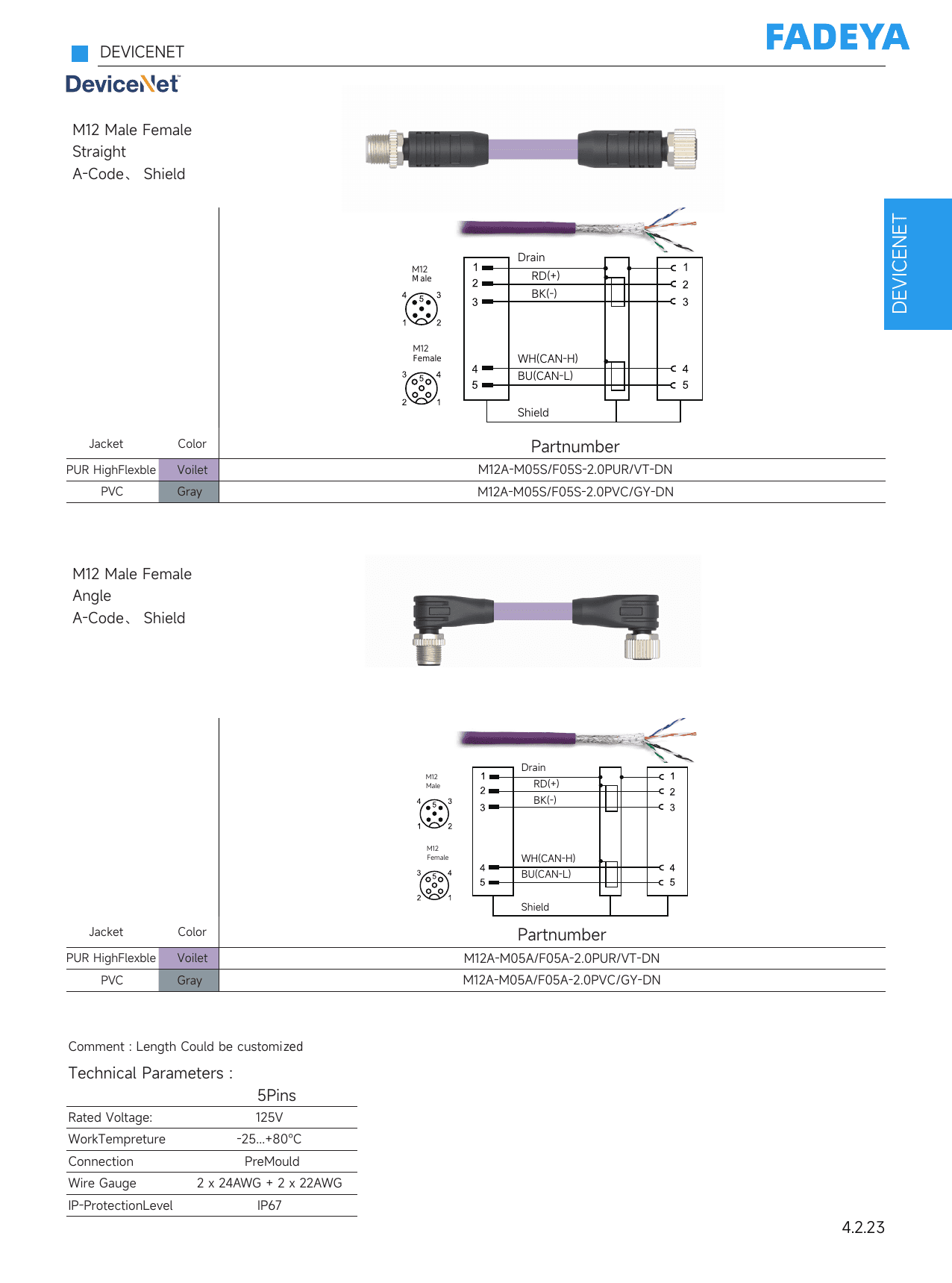

Datasheet
