DeviceNet 7/8" Single-Ended Cable (Shielded)
Download the complete PDF catalogue for full specifications and ordering details.
Part Numbers
7/8-M05S-2.0PUR/VT-DN
7/8-M05A-2.0PUR/VT-DN
7/8-M05S-2.0PVC/GY-DN
7/8-M05A-2.0PVC/GY-DN
7/8-F05S-2.0PUR/VT-DN
7/8-F05A-2.0PUR/VT-DN
7/8-F05S-2.0PVC/GY-DN
7/8-F05A-2.0PVC/GY-DN
Cable lengths can be customized. Coding follows protocol standard: PROFIBUS = B-Code (violet), DeviceNet = A-Code/7-8 (CAN), PROFINET/EtherNet-IP/EtherCAT = D-Code (green, CAT5e), 10G = X-Code (CAT6A).
Technical Parameters
| Rated Voltage | 300 V AC/DC |
| Working Temp. | -25...+80°C |
| Wire Gauge | 2 x 24AWG + 2 x 22AWG |
| IP Rating | IP67 |

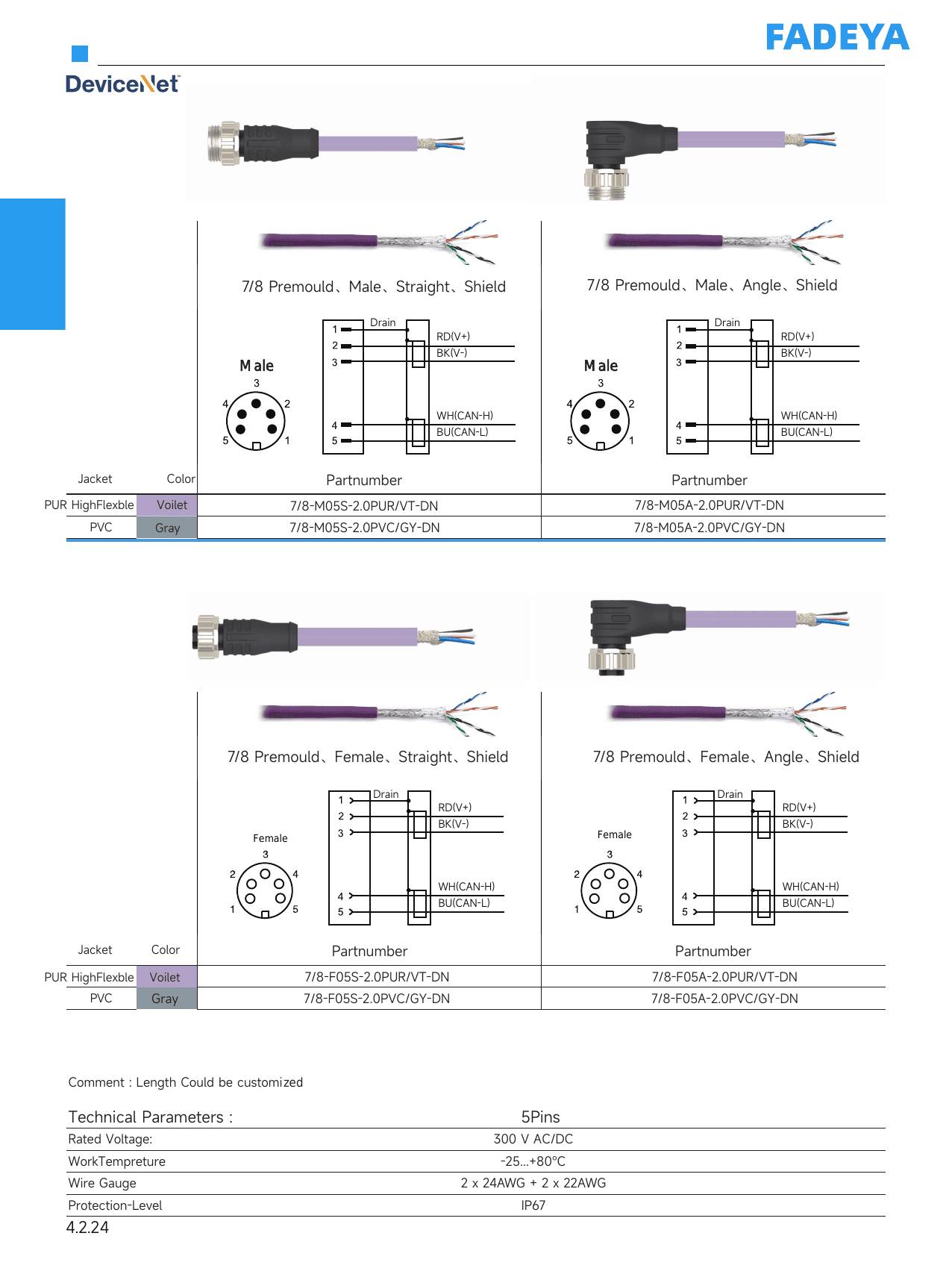

Datasheet
