Industrial EthernetD4 pinShieldedPROFINET
PROFINET M12 D-Code Cable (Single & Double-Ended, Shielded)
Download the complete PDF catalogue for full specifications and ordering details.
Part Numbers
M12D-M04S-PN-2.0PVC/GN
M12D-M04A-PN-2.0PVC/GN
M12D-M04S-PN-2.0PUR/GN
M12D-M04A-PN-2.0PUR/GN
M12D-M04S/M04S-PN-2.0PVC/GN
M12D-M04A/M04A-PN-2.0PVC/GN
M12D-M04S/M04S-PN-2.0PUR/GN
M12D-M04A/M04A-PN-2.0PUR/GN
Cable lengths can be customized. Coding follows protocol standard: PROFIBUS = B-Code (violet), DeviceNet = A-Code/7-8 (CAN), PROFINET/EtherNet-IP/EtherCAT = D-Code (green, CAT5e), 10G = X-Code (CAT6A).
Technical Parameters
| Rated Voltage | 125 V AC/DC |
| Working Temp. | -25...+80°C |
| Wire Gauge | 4 x 22AWG |
| IP Rating | IP68 |

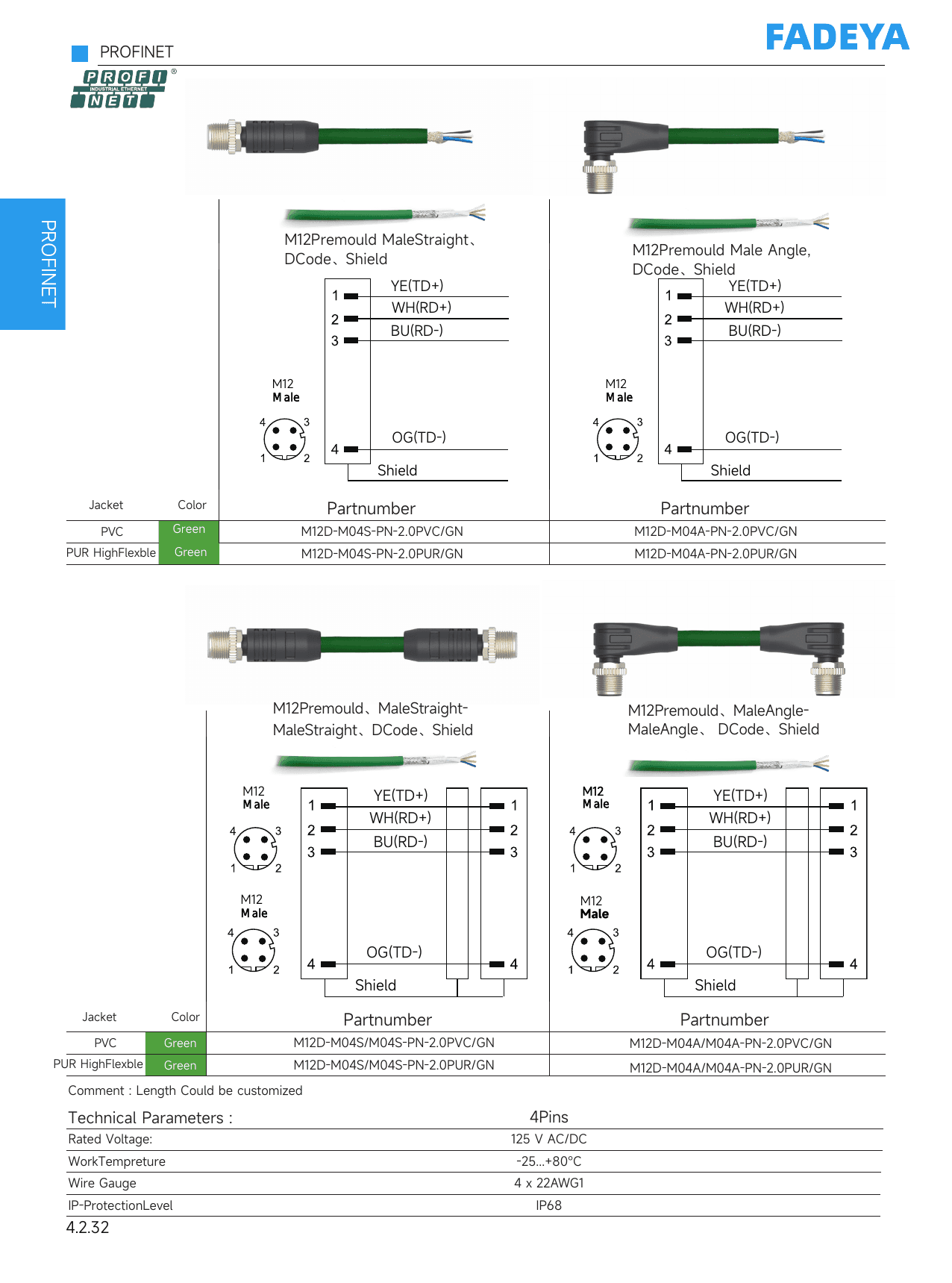

Datasheet
