Industrial EthernetD4 pinShieldedPROFINET / EtherNet/IP / EtherCAT
M8/M12 D-Code Ethernet Cable CAT5e (PROFINET/EtherNet-IP/EtherCAT)
Download the complete PDF catalogue for full specifications and ordering details.
Part Numbers
M8-M04S-2.0PVC/GN-CAT5
M8-M04A-2.0PVC/GN-CAT5
M8-M04S-2.0PUR/GN-CAT5
M8-M04A-2.0PUR/GN-CAT5
M8-M04S-2.0PVC/BU-CAT5
M8-M04A-2.0PVC/BU-CAT5
M8-M04S-2.0PUR/BU-CAT5
M8-M04A-2.0PUR/BU-CAT5
M12D-M04S-2.0PVC/GN-CAT5
M12D-M04S-2.0PUR/GN-CAT5
M12D-M04S-2.0PVC/BU-CAT5
M12D-M04S-2.0PUR/BU-CAT5
Cable lengths can be customized. Coding follows protocol standard: PROFIBUS = B-Code (violet), DeviceNet = A-Code/7-8 (CAN), PROFINET/EtherNet-IP/EtherCAT = D-Code (green, CAT5e), 10G = X-Code (CAT6A).
Technical Parameters
| Rated Voltage | 60 V AC/DC |
| Working Temp. | -25...+80°C |
| Connection | 2 x 2 x 24AWG / 2 x 2 x 24AWG |
| IP Rating | IP67 |

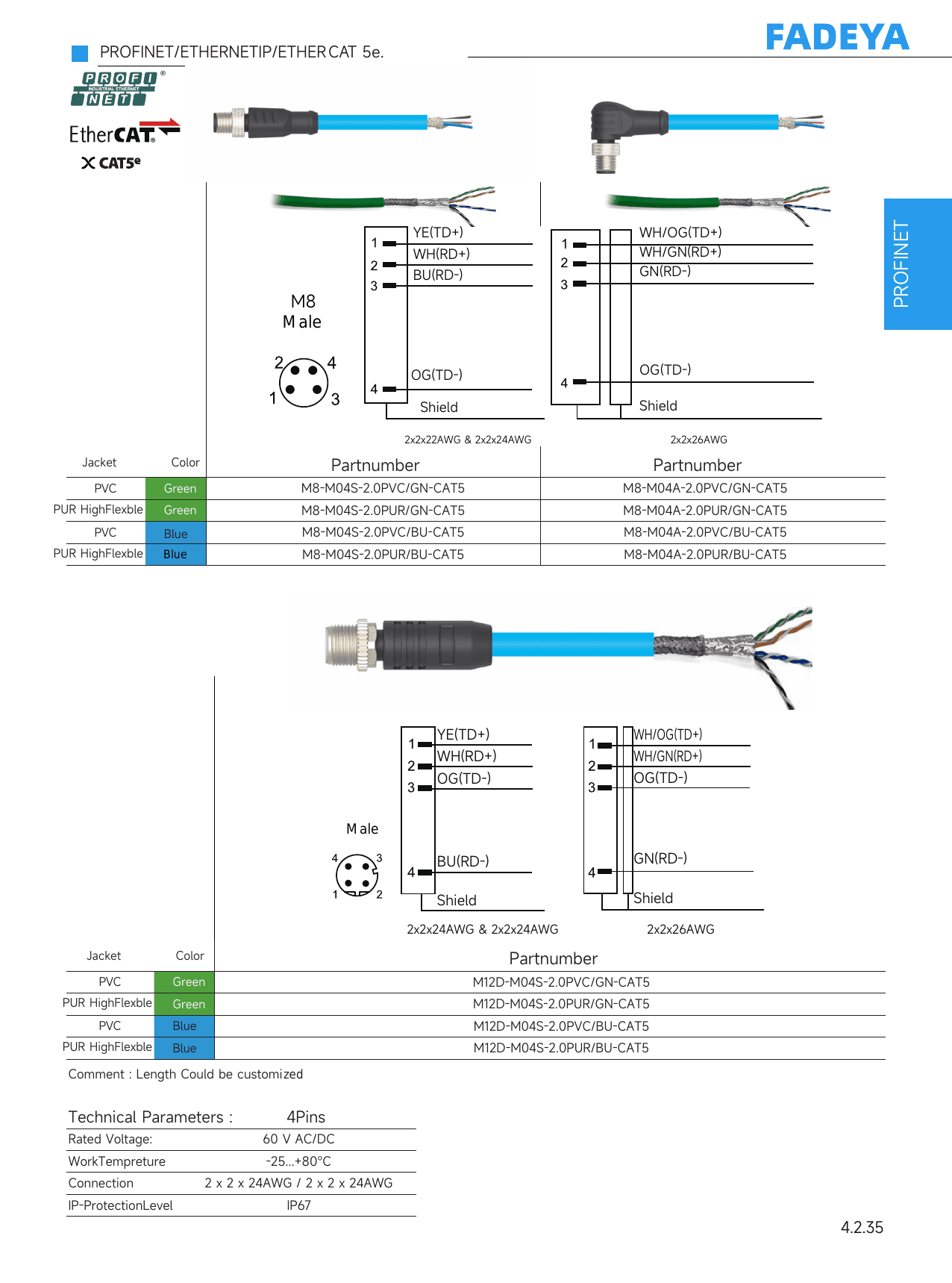

Datasheet
