Industrial EthernetX8 pinShieldedPROFINET / EtherNet/IP / EtherCAT

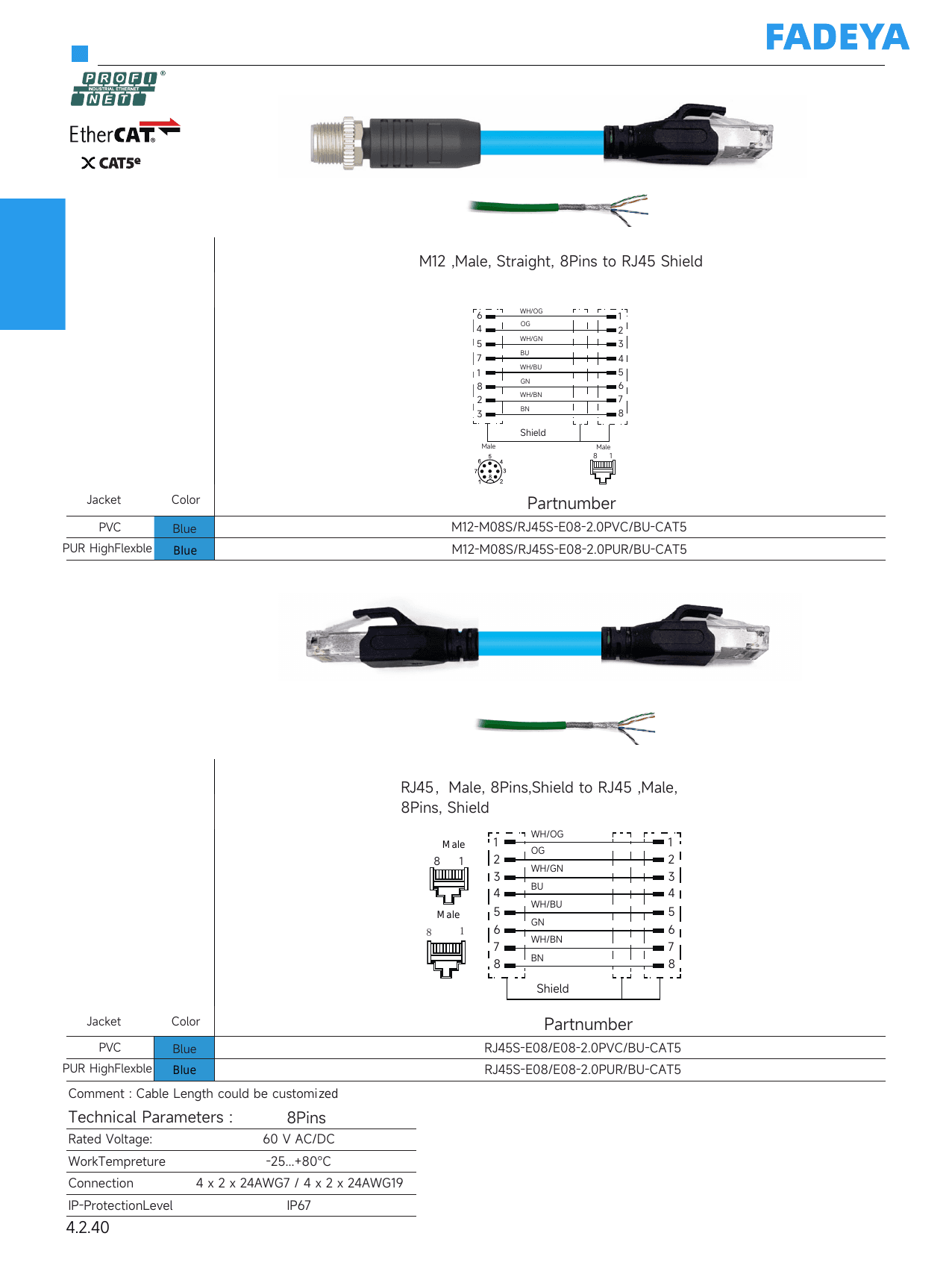

M12 8-Pin to RJ45 / RJ45 to RJ45 8-Pin Ethernet Cable (Shielded)
Download the complete PDF catalogue for full specifications and ordering details.
Part Numbers
M12-M08S/RJ45S-E08-2.0PVC/BU-CAT5
M12-M08S/RJ45S-E08-2.0PUR/BU-CAT5
RJ45S-E08/E08-2.0PVC/BU-CAT5
RJ45S-E08/E08-2.0PUR/BU-CAT5
Cable lengths can be customized. Coding follows protocol standard: PROFIBUS = B-Code (violet), DeviceNet = A-Code/7-8 (CAN), PROFINET/EtherNet-IP/EtherCAT = D-Code (green, CAT5e), 10G = X-Code (CAT6A).
Technical Parameters
| Rated Voltage | 60 V AC/DC |
| Working Temp. | -25...+80°C |
| Connection | 4 x 2 x 24AWG7 / 4 x 2 x 24AWG19 |
| IP Rating | IP67 |
Datasheet
