M12 X-Code CAT6A Cable 10 Gbps (to RJ45 / to M12, Shielded)
Download the complete PDF catalogue for full specifications and ordering details.
Part Numbers
M12X-M08S/RJ45S-2.0PVC/GN-CAT6
M12X-M08S/RJ45S-2.0PUR/GN-CAT6
M12X-M08S/M08S-2.0PVC/GN-CAT6
M12X-M08S/M08S-2.0PUR/GN-CAT6
M12X-M08S/RJ45S-E08-2.0PVC/GN-CAT6
M12X-M08S/RJ45S-E08-2.0PUR/GN-CAT6
RJ45S-E08/E08-2.0PVC/GN-CAT6
RJ45S-E08/E08-2.0PUR/GN-CAT6
Cable lengths can be customized. Coding follows protocol standard: PROFIBUS = B-Code (violet), DeviceNet = A-Code/7-8 (CAN), PROFINET/EtherNet-IP/EtherCAT = D-Code (green, CAT5e), 10G = X-Code (CAT6A).
Technical Parameters
| Rated Voltage | 30 V AC/DC |
| Working Temp. | -25...+80°C |
| Connection | 4 x 2 x 26AWG |
| IP Rating | IP67 |

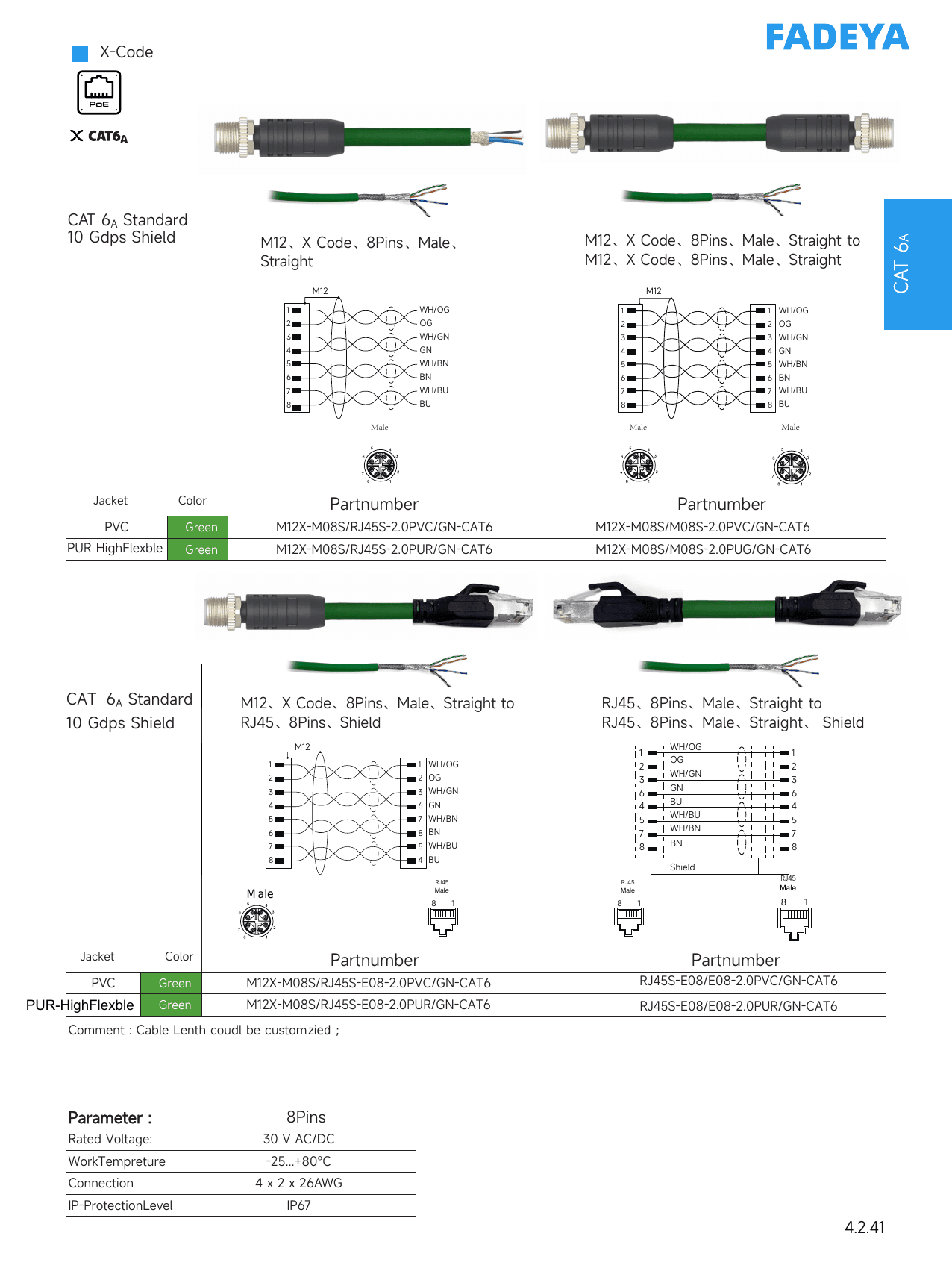

Datasheet
