CAT6A 10G (X-Code)X8 pinShieldedCAT6A 10G
M12 X-Code Field Connector + RJ45 Fast Connector CAT6A (Crimp, Shielded)
Download the complete PDF catalogue for full specifications and ordering details.
Part Numbers
M12X-M08S-SH
RJ45-M08S-SH
RJ45-M08A-SH
Cable lengths can be customized. Coding follows protocol standard: PROFIBUS = B-Code (violet), DeviceNet = A-Code/7-8 (CAN), PROFINET/EtherNet-IP/EtherCAT = D-Code (green, CAT5e), 10G = X-Code (CAT6A).
Technical Parameters
| Data Rate | 10 Mbit/s, 100 Mbit/s |
| Cover Material | Copper-zinc alloy, nickel-plated |
| Connection | Buckle locking |
| IP Rating | IP20 |
| Humidity | 95% (no condensation during operation) |

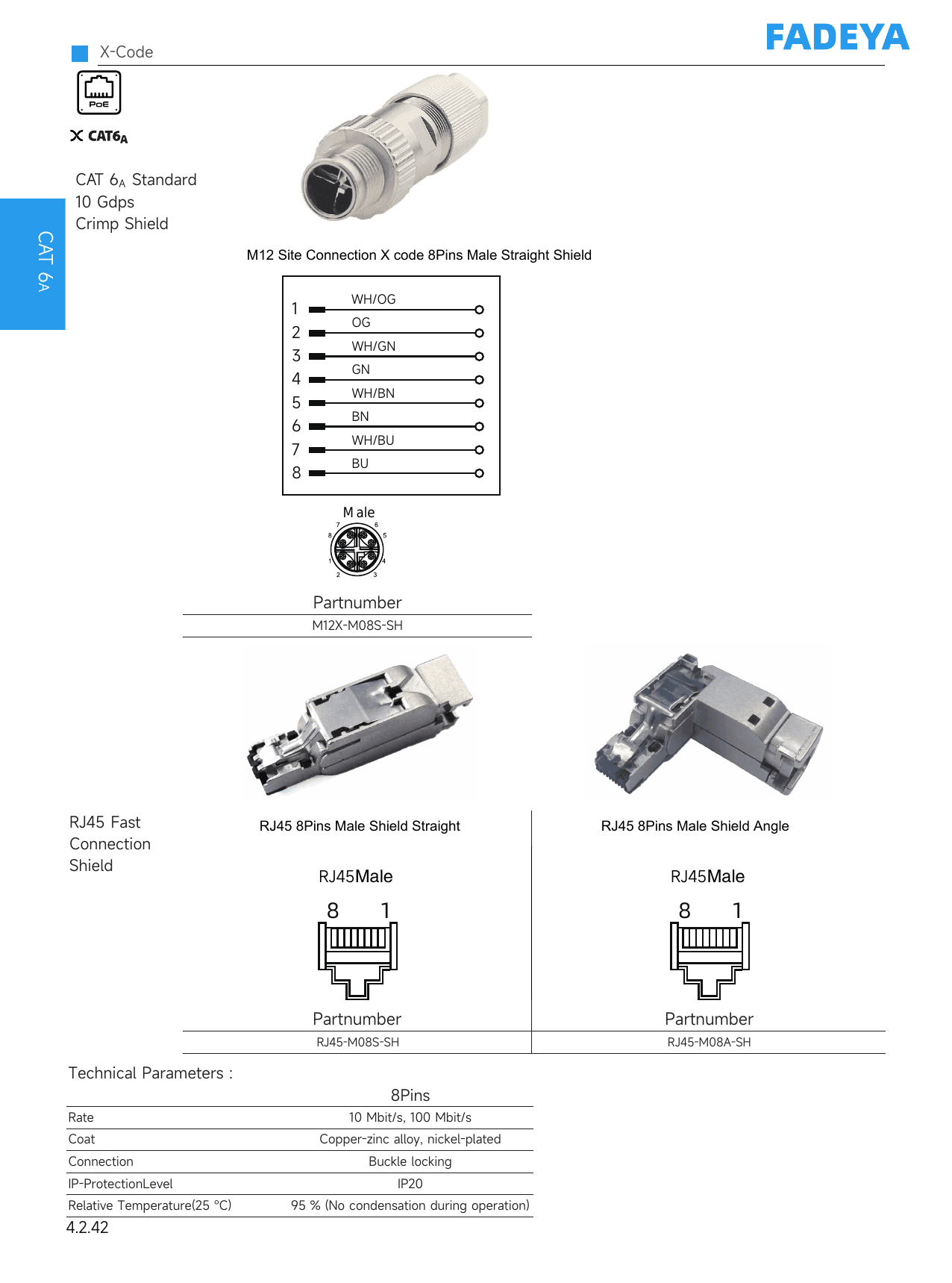

Datasheet
