Lock Nuts
Metal Lock Nut — Nickel-Plated Brass (PG / Metric)
Download the complete PDF catalogue for full specifications and ordering details.
Part Numbers
WNA-PG7/S
WNA-PG9/S
WNA-PG11/S
WNA-PG13.5/S
WNA-PG16/S
WNA-PG21/S
WNA-PG29/S
WNA-PG36/S
WNA-PG42/S
WNA-PG48/S
WNA-M12/S
WNA-M16/S
Each datasheet image is a full catalog page (contact arrangement, panel cut-out, dimensions, order table and parameters). Inserts ship as male (M) or female (F) halves and are ordered separately. Terminal-type suffix: none = screw, C = crimp, S = cage-clamp, Z = quick-lock (push-in), SS = double cage-clamp (two conductors per contact). 16A crimp contacts (CESM/CEGM silver/gold series), crimp tool TL02G and removal tool TL01 are shared accessories listed on the datasheet pages and will be catalogued in the accessories batch.
Technical Parameters
| Material | Nickel-plated brass |
| Function | Counter / lock nut for fixing glands and plugs into a panel |
| Temperature Range | -40°C … +100°C |
| Threads | PG7–PG48 / M12–M63 |
| Thickness | 2.8–5.5 mm |

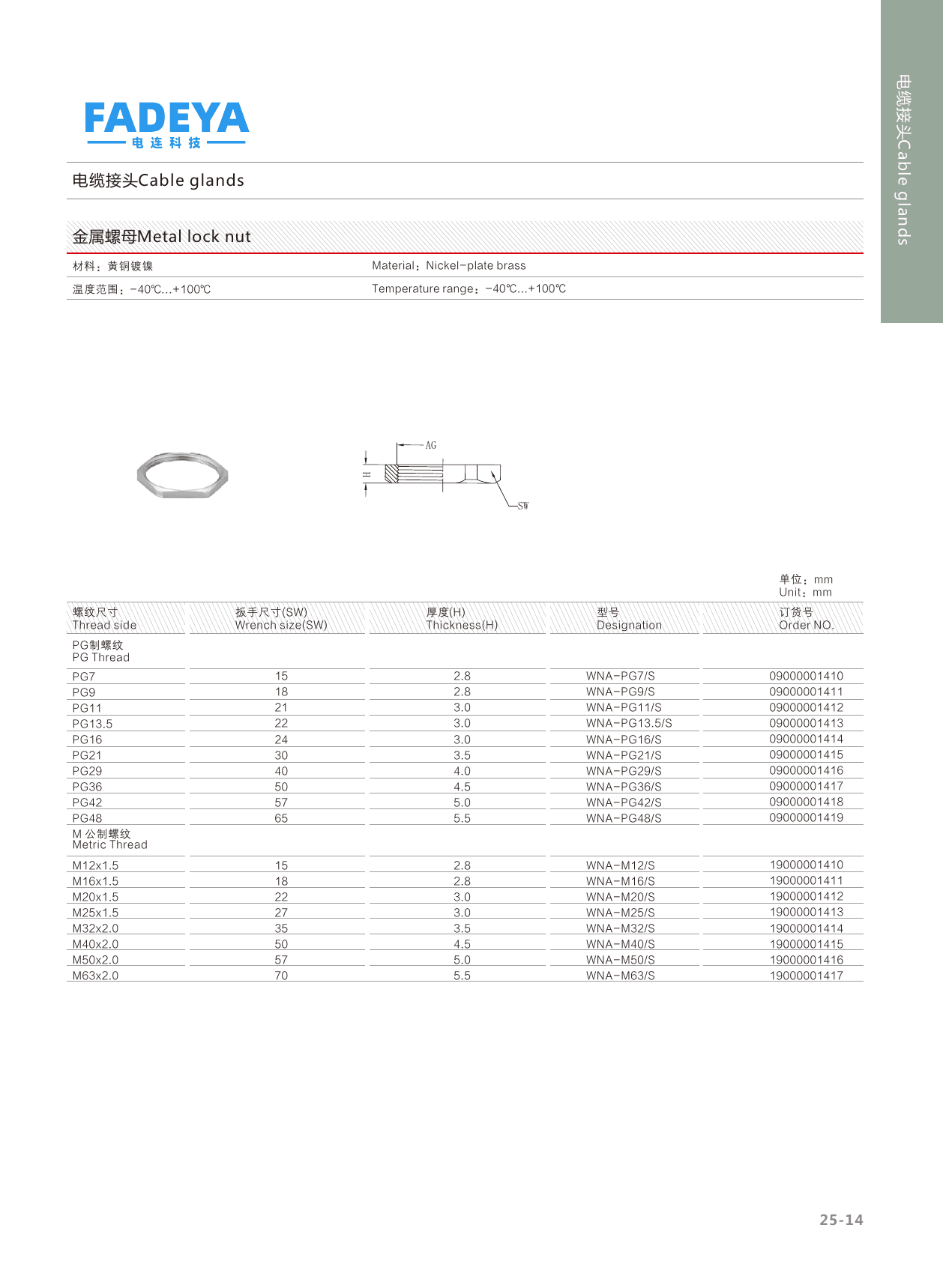

Datasheet
