Blanking Plugs
Metal Blanking Plug — Nickel-Plated Brass (IP68)
Download the complete PDF catalogue for full specifications and ordering details.
Part Numbers
WNP-PG7
WNP-PG9
WNP-PG11
WNP-PG13.5
WNP-PG16
WNP-PG21
WNP-PG29
WNP-PG36
WNP-PG42
WNP-PG48
WNP-M12
WNP-M16
Each datasheet image is a full catalog page (contact arrangement, panel cut-out, dimensions, order table and parameters). Inserts ship as male (M) or female (F) halves and are ordered separately. Terminal-type suffix: none = screw, C = crimp, S = cage-clamp, Z = quick-lock (push-in), SS = double cage-clamp (two conductors per contact). 16A crimp contacts (CESM/CEGM silver/gold series), crimp tool TL02G and removal tool TL01 are shared accessories listed on the datasheet pages and will be catalogued in the accessories batch.
Technical Parameters
| Material | Nickel-plated brass |
| Colour | Black |
| Function | Seals unused / spare threaded cable entries |
| Protection | IP68 (with O-ring) |
| Temperature Range | -40°C … +120°C |
| Threads | PG7–PG48 / M12–M63 × 1.5 |

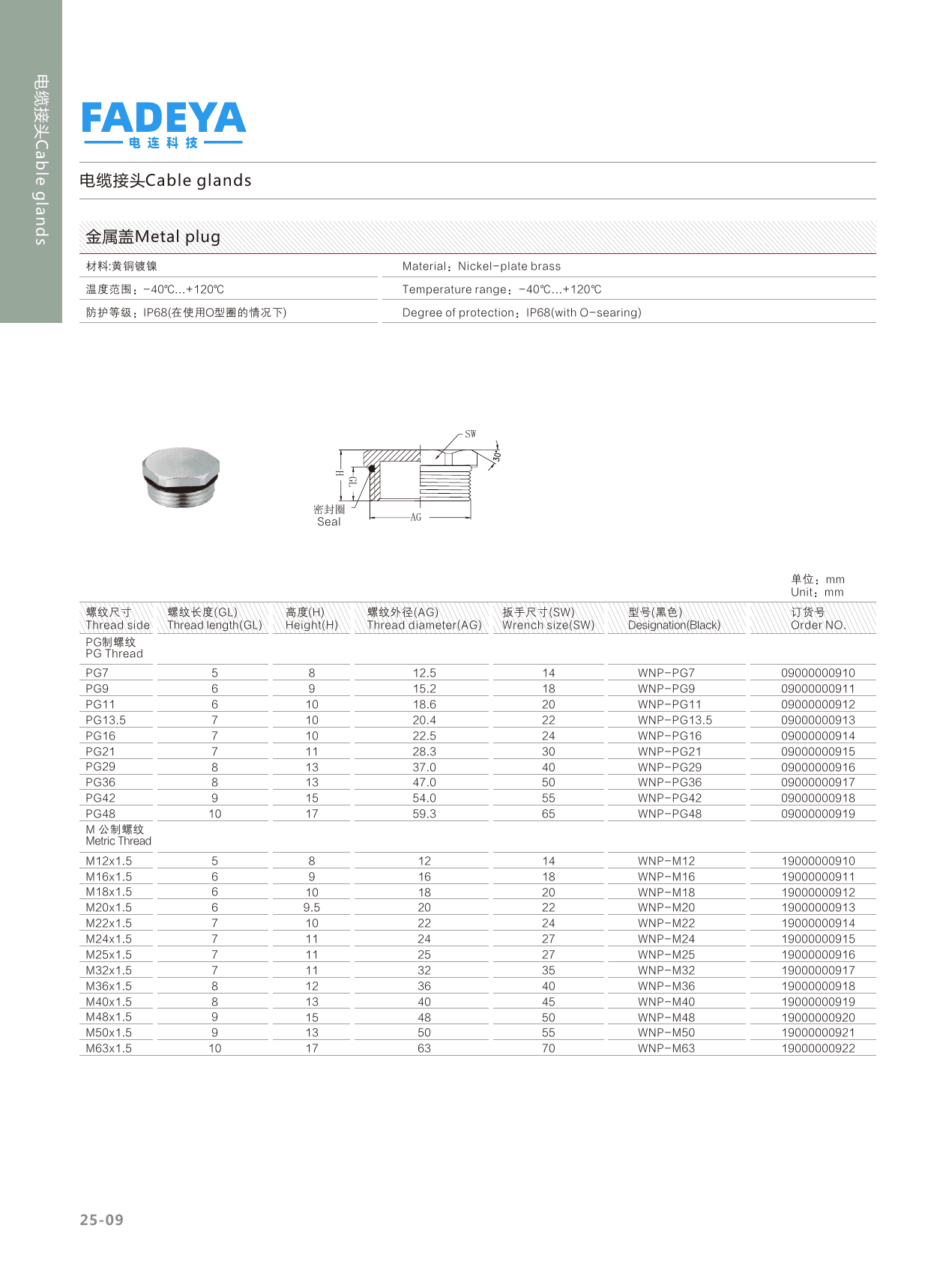

Datasheet
