Blanking Plugs
Nylon Blanking Plug — Nylon 6 (IP68)
Download the complete PDF catalogue for full specifications and ordering details.
Part Numbers
WNPP-PG7G/R
WNPP-PG9G/R
WNPP-PG11G/R
WNPP-PG13.5G/R
WNPP-PG16G/R
WNPP-PG21G/R
WNPP-PG29G/R
WNPP-PG36G/R
WNPP-PG42G/R
WNPP-PG48G/R
WNPP-M12G/R
WNPP-M16G/R
Each datasheet image is a full catalog page (contact arrangement, panel cut-out, dimensions, order table and parameters). Inserts ship as male (M) or female (F) halves and are ordered separately. Terminal-type suffix: none = screw, C = crimp, S = cage-clamp, Z = quick-lock (push-in), SS = double cage-clamp (two conductors per contact). 16A crimp contacts (CESM/CEGM silver/gold series), crimp tool TL02G and removal tool TL01 are shared accessories listed on the datasheet pages and will be catalogued in the accessories batch.
Technical Parameters
| Material | Nylon 6 |
| Colour | Grey |
| Function | Seals unused / spare threaded cable entries |
| Protection | IP68 (with O-ring) |
| Temperature Range | -40°C … +120°C |
| Threads | PG7–PG48 / M12–M63 × 1.5 |

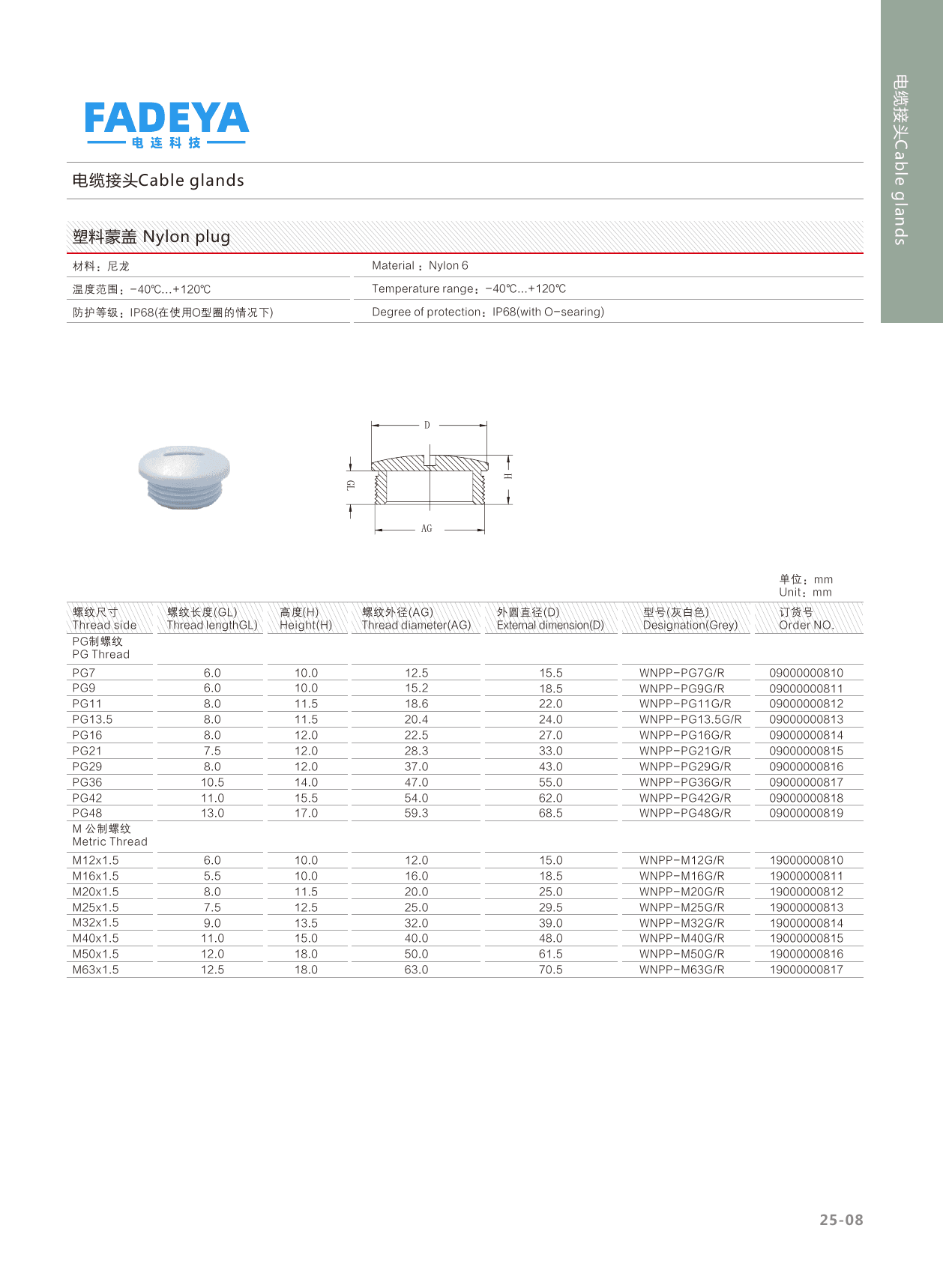

Datasheet
