Thread Adapters (Enlargers & Reducers)
Metal Thread Reducer — Nickel-Plated Brass (Hex)
Download the complete PDF catalogue for full specifications and ordering details.
Part Numbers
WNSC-PG9PG7
WNSC-PG11PG9
WNSC-PG13.5PG11
WNSC-PG16PG13.5
WNSC-PG21PG16
WNSC-PG29PG21
WNSC-PG36PG29
WNSC-PG42PG36
WNSC-PG48PG42
WNSC-M16M12
WNSC-M20M16
WNSC-M25M20
Each datasheet image is a full catalog page (contact arrangement, panel cut-out, dimensions, order table and parameters). Inserts ship as male (M) or female (F) halves and are ordered separately. Terminal-type suffix: none = screw, C = crimp, S = cage-clamp, Z = quick-lock (push-in), SS = double cage-clamp (two conductors per contact). 16A crimp contacts (CESM/CEGM silver/gold series), crimp tool TL02G and removal tool TL01 are shared accessories listed on the datasheet pages and will be catalogued in the accessories batch.
Technical Parameters
| Material | Nickel-plated brass |
| Shape | Hexagonal |
| Function | Reduces the mounting thread to the next smaller size |
| Seal | Sealing ring |
| Threads | PG9–PG48 / M16–M63 |

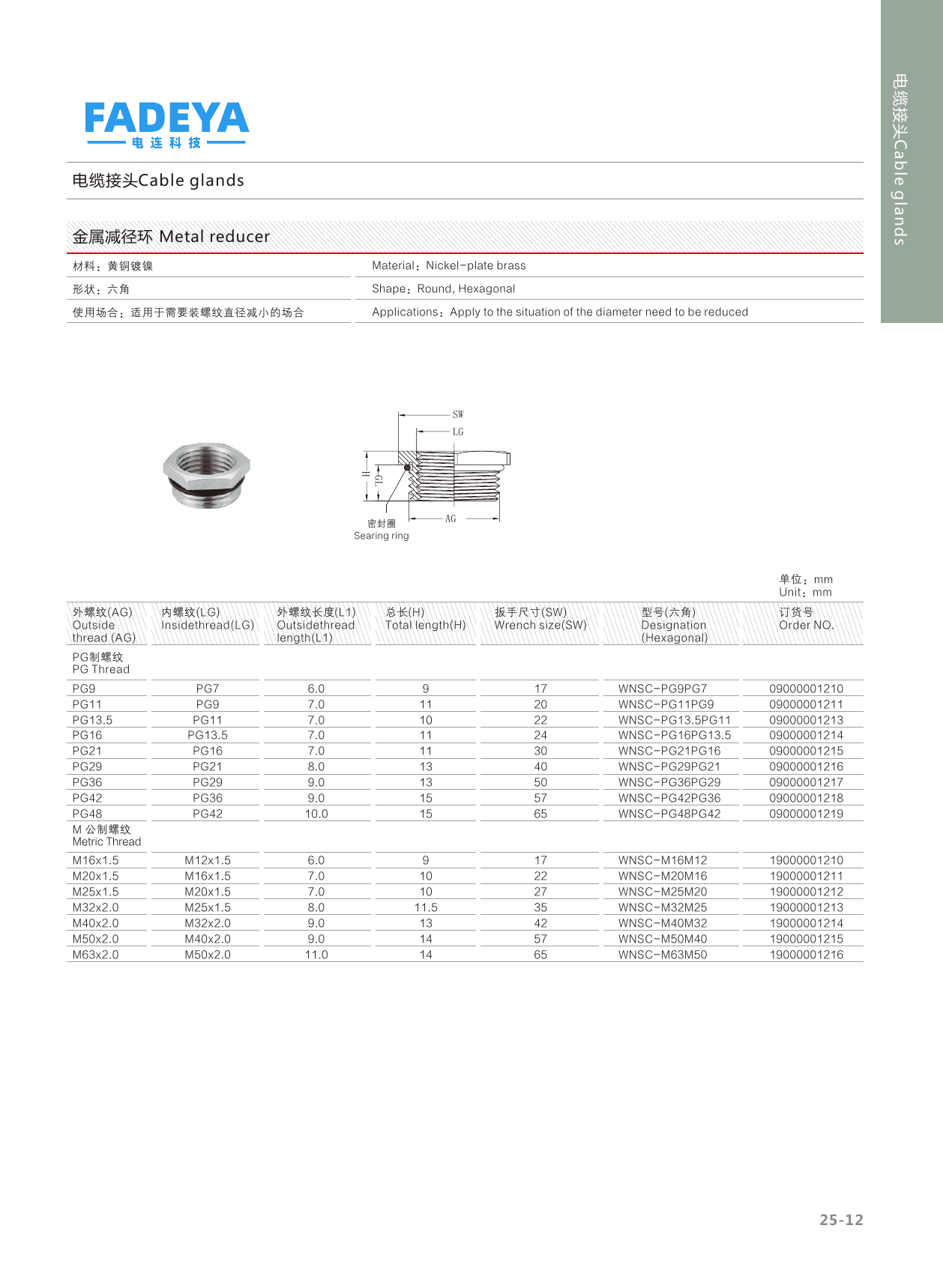

Datasheet
