Thread Adapters (Enlargers & Reducers)
Polyamide Thread Reducer (Black)
Download the complete PDF catalogue for full specifications and ordering details.
Part Numbers
WNSCP-PG11PG9
WNSCP-PG13.5PG11
WNSCP-PG16PG11
WNSCP-PG16PG13.5
WNSCP-PG21PG16
WNSCP-PG29PG21
WNSCP-M20M16
WNSCP-M25M20
WNSCP-M32M20
WNSCP-M32M25
WNSCP-M40M32
Each datasheet image is a full catalog page (contact arrangement, panel cut-out, dimensions, order table and parameters). Inserts ship as male (M) or female (F) halves and are ordered separately. Terminal-type suffix: none = screw, C = crimp, S = cage-clamp, Z = quick-lock (push-in), SS = double cage-clamp (two conductors per contact). 16A crimp contacts (CESM/CEGM silver/gold series), crimp tool TL02G and removal tool TL01 are shared accessories listed on the datasheet pages and will be catalogued in the accessories batch.
Technical Parameters
| Material | Polyamide (Nylon 66) |
| Colour | Black |
| Function | Reduces the mounting thread to the next smaller size |
| Seal | Sealing ring |
| Temperature Range | -40°C … +100°C |
| Threads | PG11–PG29 / M20–M40 × 1.5 |

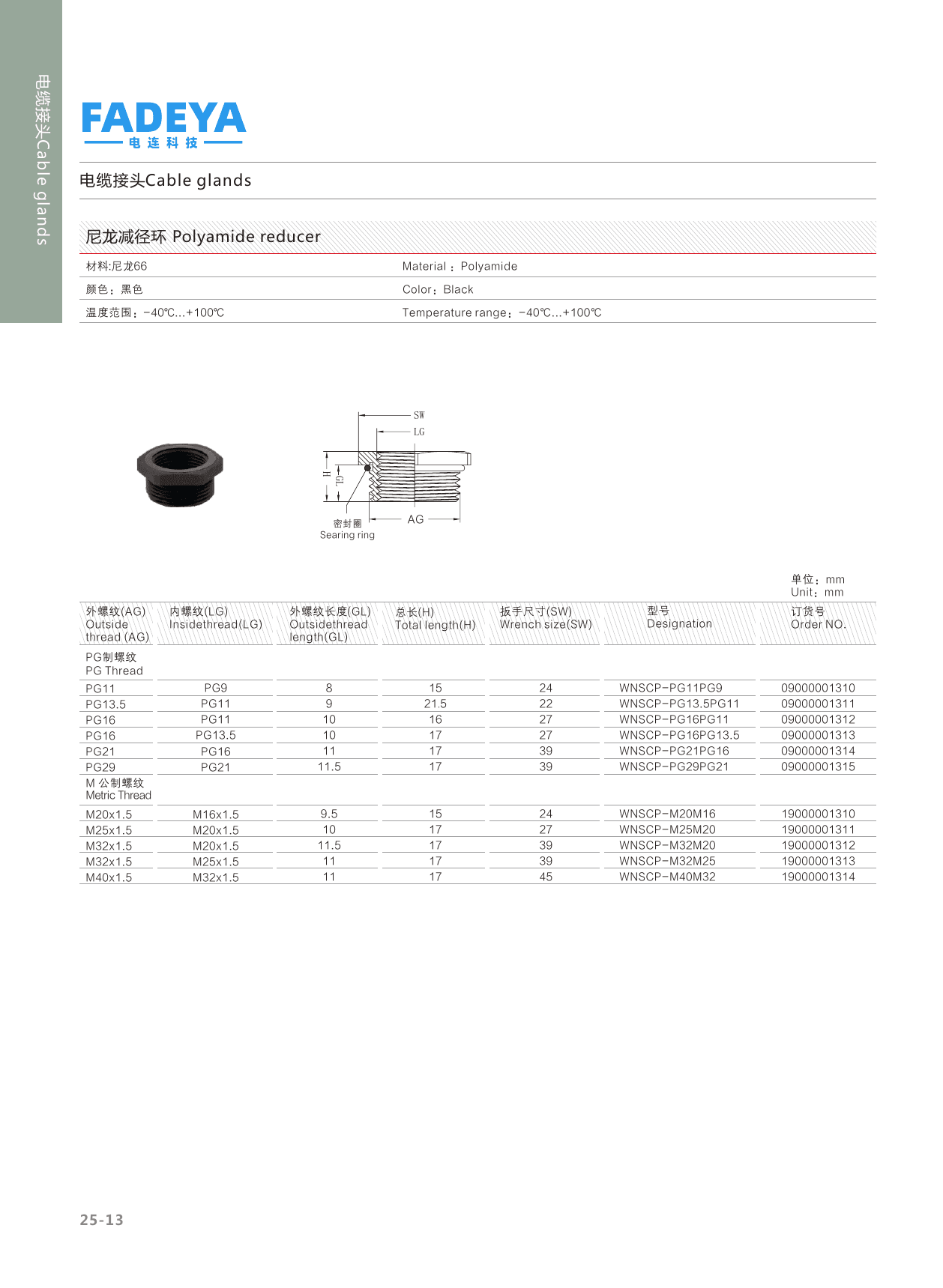

Datasheet
