Han K InsertsCrimp
HK-012/2 Combination Inserts
12 power + 2 signal + PE
Download the complete PDF catalogue for full specifications and ordering details.
Part Numbers
HK-012/2-MC
HK-012/2-FC

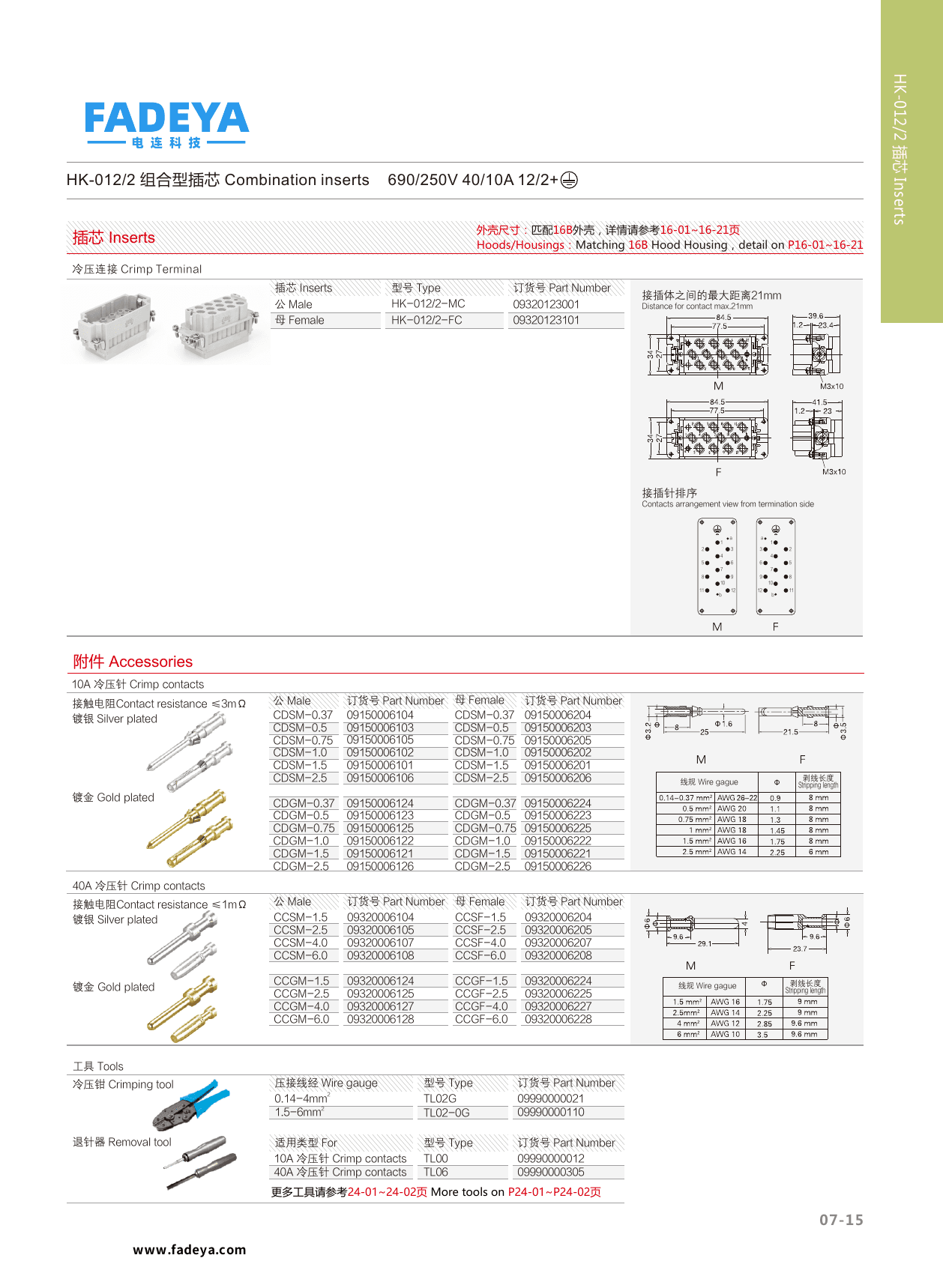

Each datasheet image is a full catalog page (contact arrangement, panel cut-out, dimensions, order table and parameters). Inserts ship as male (M) or female (F) halves and are ordered separately. Terminal-type suffix: none = screw, C = crimp, S = cage-clamp, Z = quick-lock (push-in), SS = double cage-clamp (two conductors per contact). 16A crimp contacts (CESM/CEGM silver/gold series), crimp tool TL02G and removal tool TL01 are shared accessories listed on the datasheet pages and will be catalogued in the accessories batch.
Technical Parameters
| Rated Current | 40A (power) / 10A (signal) |
| Rated Voltage | 690V (power) / 250V (signal) |
| Rated Impulse Voltage | 8kV (power) / 4kV (signal) |
| Pollution Degree | 3 |
| Rated Voltage (UL/CSA) | 600/300V |
| Contact Material | Copper alloy |
| Contact Plating | Hard-gold or hard-silver plated |
| Contact Resistance | ≤0.3mΩ (power) / ≤3mΩ (signal) |
| Insulation Resistance | ≥10¹⁰ Ω |
| Housing Material | Polycarbonate (PC) |
| Temperature Range | -40°C ... +125°C |
| Flammability | UL94 V0 |
| Mating Cycles | ≥500 |
| Wire Gauge | 1.5–6mm² AWG 16–10 (power) / 0.14–2.5mm² AWG 26–14 (signal) |
| Standards | DIN EN 60664 / DIN EN 61984 |
| Matching Hood/Housing | 16B hood/housing |
| Termination | Crimp |
Datasheet
