HK-004/8 Combination Inserts
4 power + 8 signal + PE
Download the complete PDF catalogue for full specifications and ordering details.
Part Numbers
HK-004/8-M
HK-004/8-F

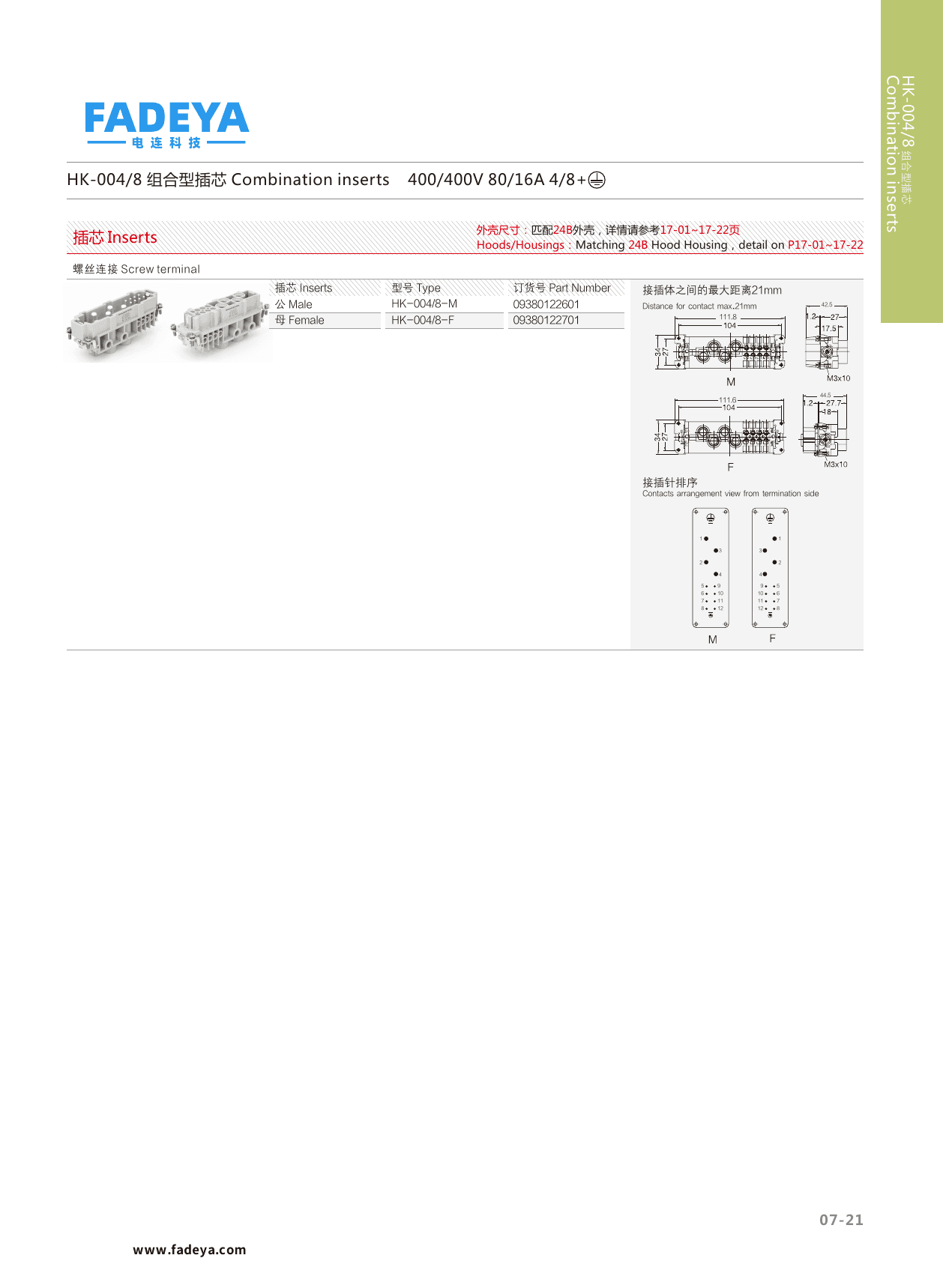

Each datasheet image is a full catalog page (contact arrangement, panel cut-out, dimensions, order table and parameters). Inserts ship as male (M) or female (F) halves and are ordered separately. Terminal-type suffix: none = screw, C = crimp, S = cage-clamp, Z = quick-lock (push-in), SS = double cage-clamp (two conductors per contact). 16A crimp contacts (CESM/CEGM silver/gold series), crimp tool TL02G and removal tool TL01 are shared accessories listed on the datasheet pages and will be catalogued in the accessories batch.
Technical Parameters
| Rated Current | 80A (power) / 16A (signal) |
| Rated Voltage | 400V (power) / 400V (signal) |
| Rated Impulse Voltage | 6kV (power) / 6kV (signal) |
| Pollution Degree | 3 |
| Rated Voltage (PD2) | Power: 80A 400/690V 6kV (pollution degree 2) |
| Rated Voltage (UL/CSA) | 600/600V |
| Contact Material | Copper alloy |
| Contact Plating | Hard-silver plated |
| Contact Resistance | ≤0.3mΩ (power) / ≤1mΩ (signal) |
| Insulation Resistance | ≥10¹⁰ Ω |
| Housing Material | Polycarbonate (PC) |
| Temperature Range | -40°C ... +125°C |
| Flammability | UL94 V0 |
| Mating Cycles | ≥500 |
| Wire Gauge | 1.5–16mm² AWG 16–6 (power) / 0.5–2.5mm² AWG 20–14 (signal) |
| Tightening Torque | Power: 1.2–3Nm (by size) · Signal: 0.5Nm |
| Strip Length | 14mm (power) / 7.5mm (signal) |
| Standards | DIN EN 60664 / DIN EN 61984 |
| Matching Hood/Housing | 24B hood/housing |
| Termination | Screw |
