Han-Modular Power ModulesAxial screw
H2MK-001 Axial Power Module — 200A
1 contact
Download the complete PDF catalogue for full specifications and ordering details.
Part Numbers
H2MK-001.1-M (25–40mm²)
H2MK-001.2-M (40–70mm²)
H2MK-001.1-F (25–40mm²)
H2MK-001.2-F (40–70mm²)

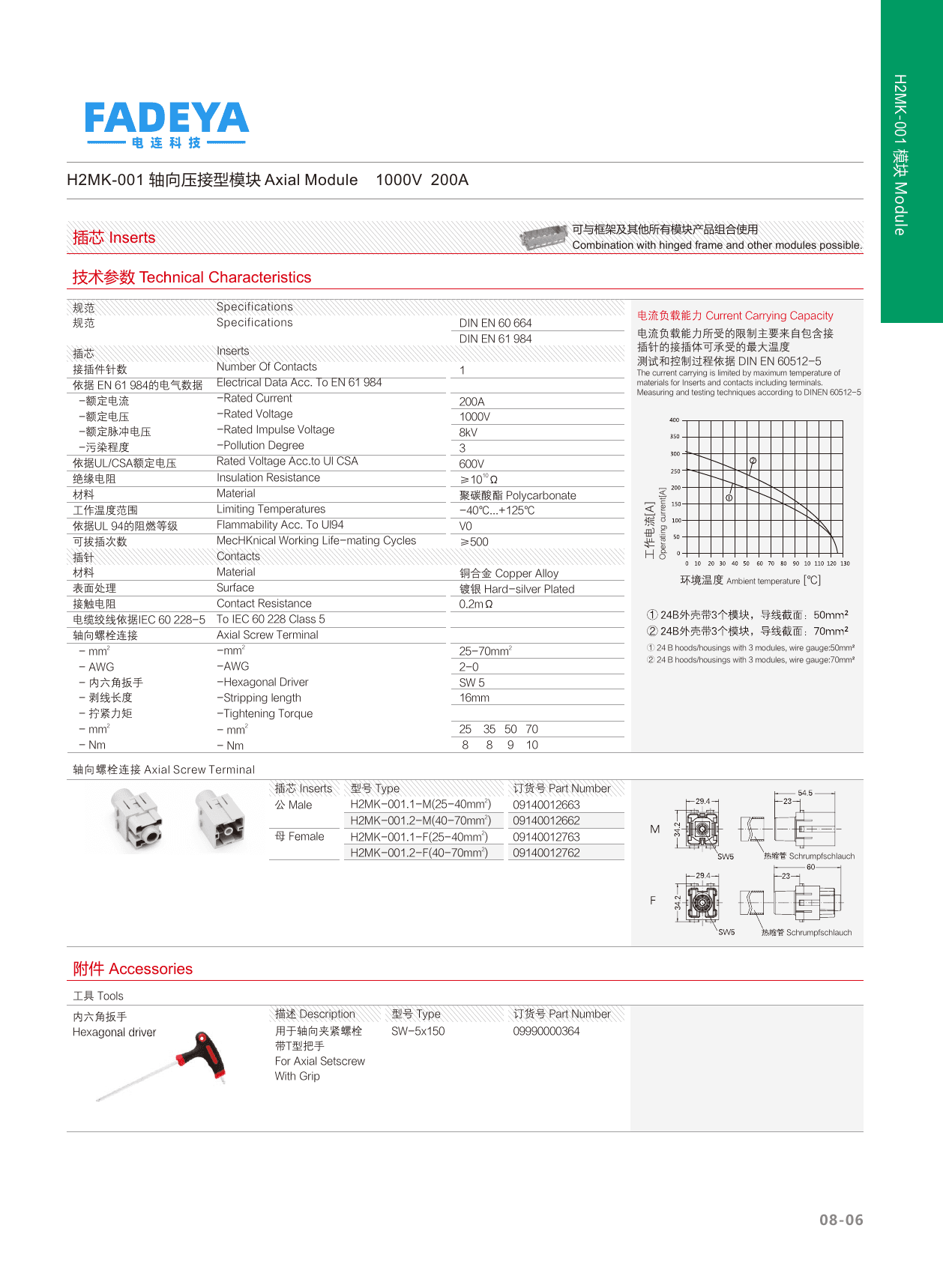

Each datasheet image is a full catalog page (contact arrangement, panel cut-out, dimensions, order table and parameters). Inserts ship as male (M) or female (F) halves and are ordered separately. Terminal-type suffix: none = screw, C = crimp, S = cage-clamp, Z = quick-lock (push-in), SS = double cage-clamp (two conductors per contact). 16A crimp contacts (CESM/CEGM silver/gold series), crimp tool TL02G and removal tool TL01 are shared accessories listed on the datasheet pages and will be catalogued in the accessories batch.
Technical Parameters
| Pollution Degree | 3 |
| Contact Material | Copper alloy |
| Insulation Resistance | ≥10¹⁰ Ω |
| Housing Material | Polycarbonate (PC) |
| Temperature Range | -40°C ... +125°C |
| Flammability | UL94 V0 |
| Mating Cycles | ≥500 |
| Standards | DIN EN 60664 / DIN EN 61984 |
| Rated Current | 200A |
| Rated Voltage | 1000V |
| Rated Impulse Voltage | 8kV |
| Rated Voltage (UL/CSA) | 600V |
| Contact Plating | Hard-silver plated |
| Contact Resistance | 0.2mΩ |
| Wire Gauge | 25–70mm² (AWG 2–0) |
| Hex Driver | SW5 |
| Stripping Length | 16mm |
| Matching Hood/Housing | 24B hood/housing — 3 modules |
| Order Numbers | H2MK-001.1-M 09140012663 · H2MK-001.2-M 09140012662 · H2MK-001.1-F 09140012763 · H2MK-001.2-F 09140012762 |
