H2MK-001 Crimp Power Module — 200A
1 contact
Download the complete PDF catalogue for full specifications and ordering details.
Part Numbers
H2MK-001-MC
H2MK-001-FC

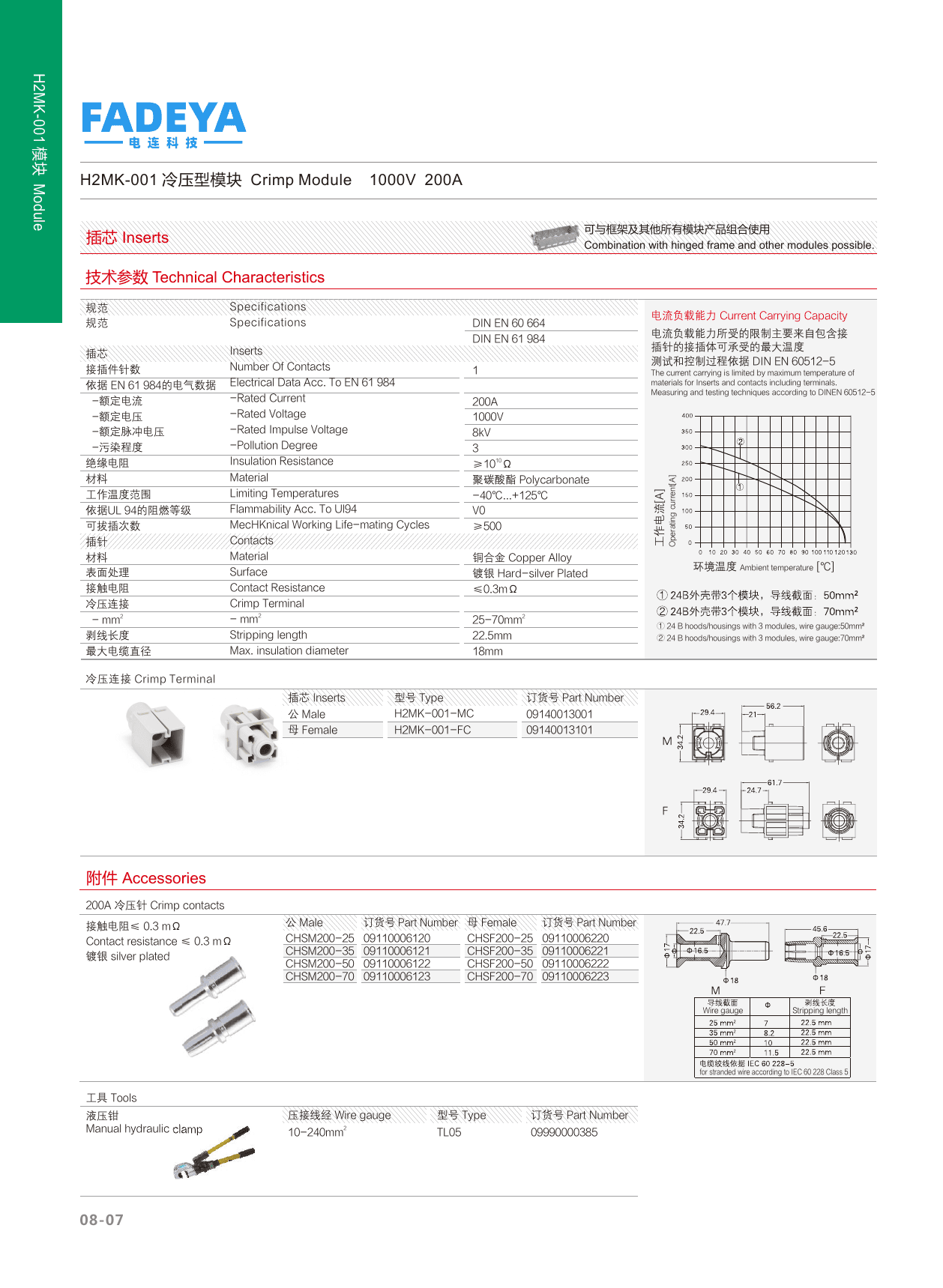

Each datasheet image is a full catalog page (contact arrangement, panel cut-out, dimensions, order table and parameters). Inserts ship as male (M) or female (F) halves and are ordered separately. Terminal-type suffix: none = screw, C = crimp, S = cage-clamp, Z = quick-lock (push-in), SS = double cage-clamp (two conductors per contact). 16A crimp contacts (CESM/CEGM silver/gold series), crimp tool TL02G and removal tool TL01 are shared accessories listed on the datasheet pages and will be catalogued in the accessories batch.
Technical Parameters
| Pollution Degree | 3 |
| Contact Material | Copper alloy |
| Insulation Resistance | ≥10¹⁰ Ω |
| Housing Material | Polycarbonate (PC) |
| Temperature Range | -40°C ... +125°C |
| Flammability | UL94 V0 |
| Mating Cycles | ≥500 |
| Standards | DIN EN 60664 / DIN EN 61984 |
| Rated Current | 200A |
| Rated Voltage | 1000V |
| Rated Impulse Voltage | 8kV |
| Contact Plating | Hard-silver plated |
| Contact Resistance | ≤0.3mΩ |
| Wire Gauge | 25–70mm² |
| Stripping Length | 22.5mm |
| Max. Insulation Diameter | 18mm |
| Crimp Contacts | CHSM200-25/35/50/70 (M) · CHSF200-25/35/50/70 (F) |
| Matching Hood/Housing | 24B hood/housing — 3 modules |
| Order Numbers | H2MK-001-MC 09140013001 · H2MK-001-FC 09140013101 |
