HMP-002 Pneumatic Module (2-way)
2 air ways
Download the complete PDF catalogue for full specifications and ordering details.
Part Numbers
HMP-002
PCM-6.0
PCF-6.0
PCFS-6.0

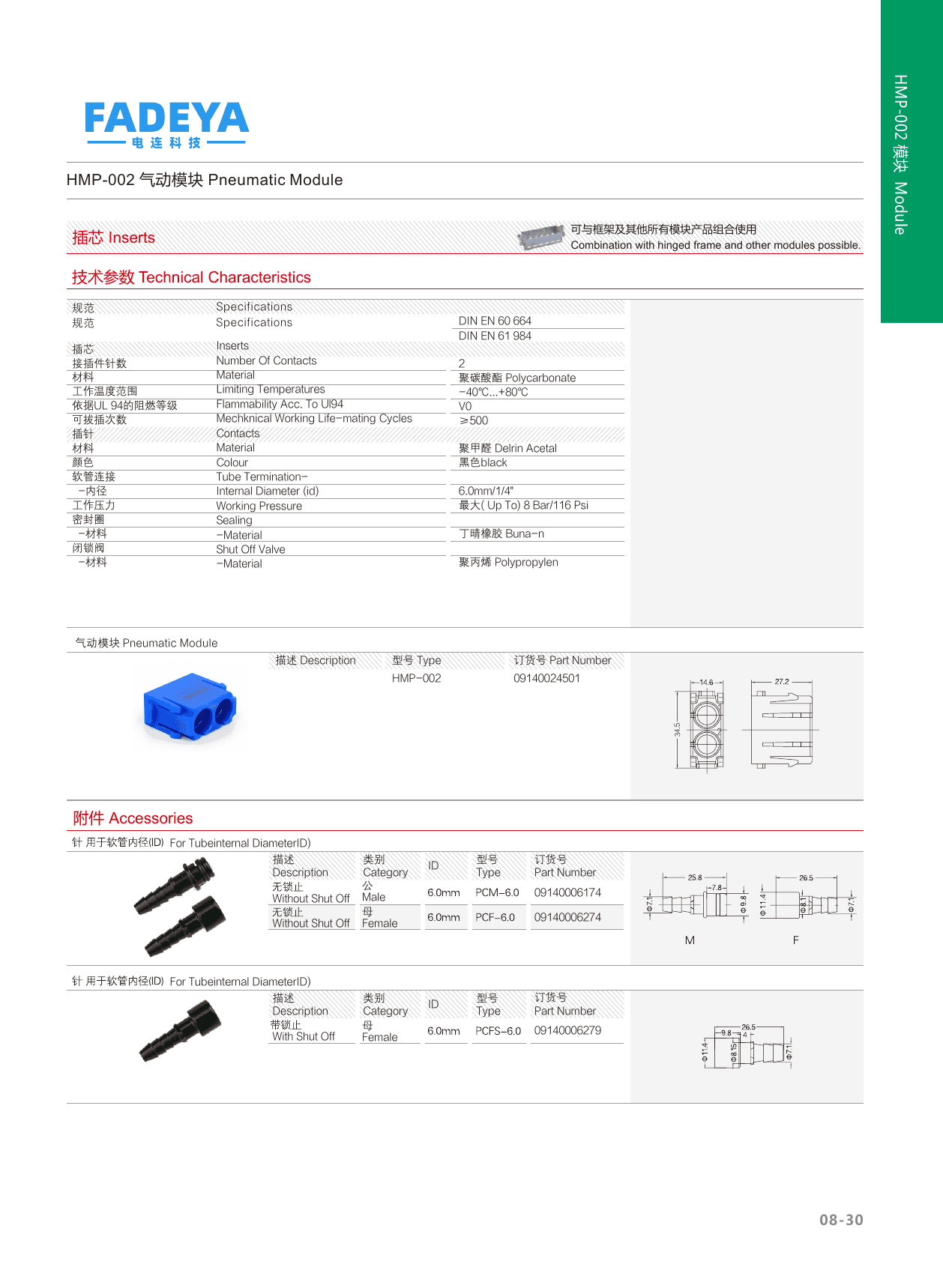

Each datasheet image is a full catalog page (contact arrangement, panel cut-out, dimensions, order table and parameters). Inserts ship as male (M) or female (F) halves and are ordered separately. Terminal-type suffix: none = screw, C = crimp, S = cage-clamp, Z = quick-lock (push-in), SS = double cage-clamp (two conductors per contact). 16A crimp contacts (CESM/CEGM silver/gold series), crimp tool TL02G and removal tool TL01 are shared accessories listed on the datasheet pages and will be catalogued in the accessories batch.
Technical Parameters
| Air Ways | 2 |
| Tube Inner Ø | 6.0mm / 1/4" |
| Working Pressure | Up to 8 bar / 116 psi |
| Contact Material | Delrin acetal (black) |
| Seal Material | Buna-N (nitrile) |
| Shut-Off Valve Material | Polypropylene |
| Housing Material | Polycarbonate (PC) |
| Temperature Range | -40°C ... +80°C |
| Flammability | UL94 V0 |
| Mating Cycles | ≥500 |
| Fittings | PCM-6.0 male (09140006174) · PCF-6.0 female (09140006274) · PCFS-6.0 female w/ shut-off (09140006279) |
| Standards | DIN EN 60664 / DIN EN 61984 |
| Order Numbers | HMP-002 09140024501 |
