Han-Modular Coax / EMC ModulesCarrier insert
H2M-002 Coax Carrier Insert (side entry) + APT-H2MQ Adapter
Hosts 1× Coax / Q-Coax module
Download the complete PDF catalogue for full specifications and ordering details.
Part Numbers
H2M-002-M
H2M-002-F
APT-H2MQ

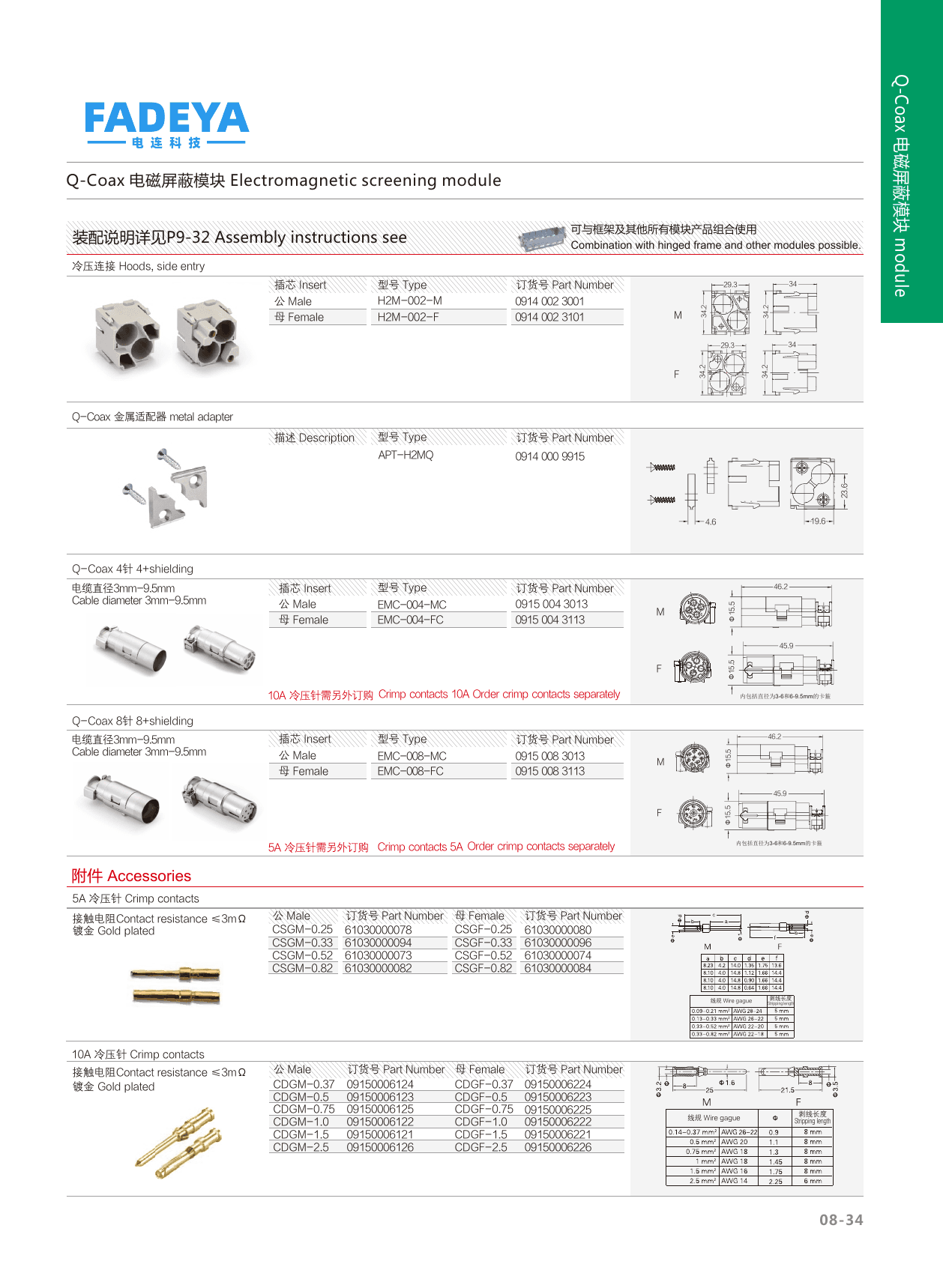

Each datasheet image is a full catalog page (contact arrangement, panel cut-out, dimensions, order table and parameters). Inserts ship as male (M) or female (F) halves and are ordered separately. Terminal-type suffix: none = screw, C = crimp, S = cage-clamp, Z = quick-lock (push-in), SS = double cage-clamp (two conductors per contact). 16A crimp contacts (CESM/CEGM silver/gold series), crimp tool TL02G and removal tool TL01 are shared accessories listed on the datasheet pages and will be catalogued in the accessories batch.
Technical Parameters
| Function | Side-entry insert that carries one shielded Coax/Q-Coax module; the APT-H2MQ metal adapter clamps the module in place |
| Compatibility | Accepts EMC-001 (Coax) and EMC-004 / EMC-008 (Q-Coax) modules |
| Housing Material | Polycarbonate (PC) insert + metal adapter |
| Temperature Range | -40°C ... +85°C |
| Flammability | UL94 V0 |
| Mating Cycles | ≥500 |
| Standards | DIN EN 60664 / DIN EN 61984 |
| Order Numbers | H2M-002-M 0914 002 3001 · H2M-002-F 0914 002 3101 · APT-H2MQ 0914 000 9915 |
