Han-Modular Coax / EMC ModulesCarrier insert
H3A-001 Coax Carrier (size 3A, direct housing)
Hosts 1× Coax / Q-Coax module
Download the complete PDF catalogue for full specifications and ordering details.
Part Numbers
H3A-001-M
H3A-001-F

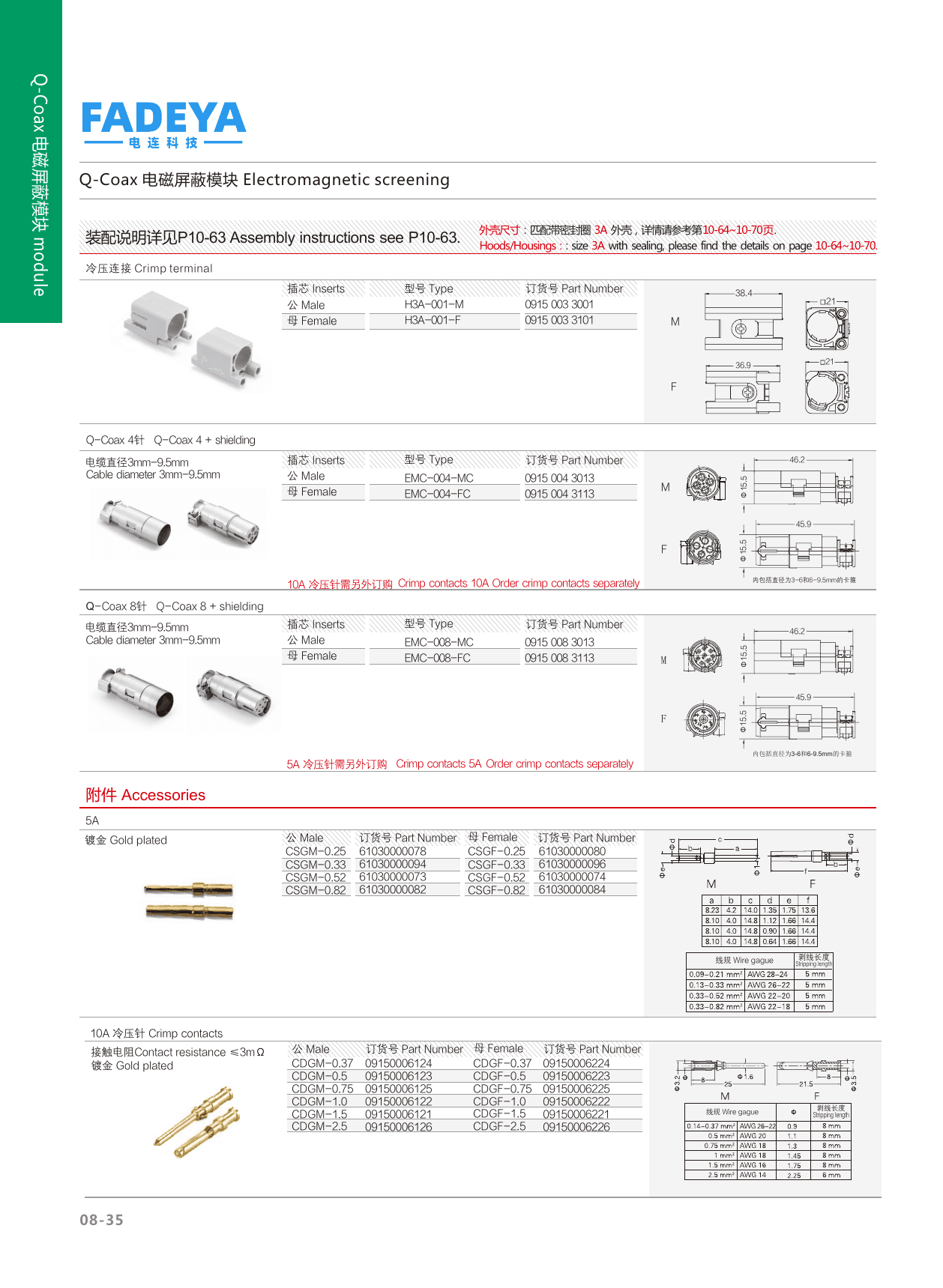

Each datasheet image is a full catalog page (contact arrangement, panel cut-out, dimensions, order table and parameters). Inserts ship as male (M) or female (F) halves and are ordered separately. Terminal-type suffix: none = screw, C = crimp, S = cage-clamp, Z = quick-lock (push-in), SS = double cage-clamp (two conductors per contact). 16A crimp contacts (CESM/CEGM silver/gold series), crimp tool TL02G and removal tool TL01 are shared accessories listed on the datasheet pages and will be catalogued in the accessories batch.
Technical Parameters
| Function | Size-3A direct-housing carrier (with sealing) for one shielded Coax/Q-Coax module |
| Compatibility | Accepts EMC-001 (Coax) and EMC-004 / EMC-008 (Q-Coax) modules; uses size 3A sealed hoods/housings |
| Housing Material | Polycarbonate (PC) |
| Temperature Range | -40°C ... +85°C |
| Flammability | UL94 V0 |
| Mating Cycles | ≥500 |
| Standards | DIN EN 60664 / DIN EN 61984 |
| Order Numbers | H3A-001-M 0915 003 3001 · H3A-001-F 0915 003 3101 |
