Hoods & Housings A SeriesSize 3A
3A Metal Protection Covers & M25 Top-Entry Hood
Download the complete PDF catalogue for full specifications and ordering details.
Part Numbers
H3A-MCV-1L/1M
H3A-MCV-1L/1F
H3A-MCV-2B/1M
H3A-MCV-2B/2M
H3A-MCV-2B/1F
H3A-MCV-2B/2F
H3A-TE-2B-M25

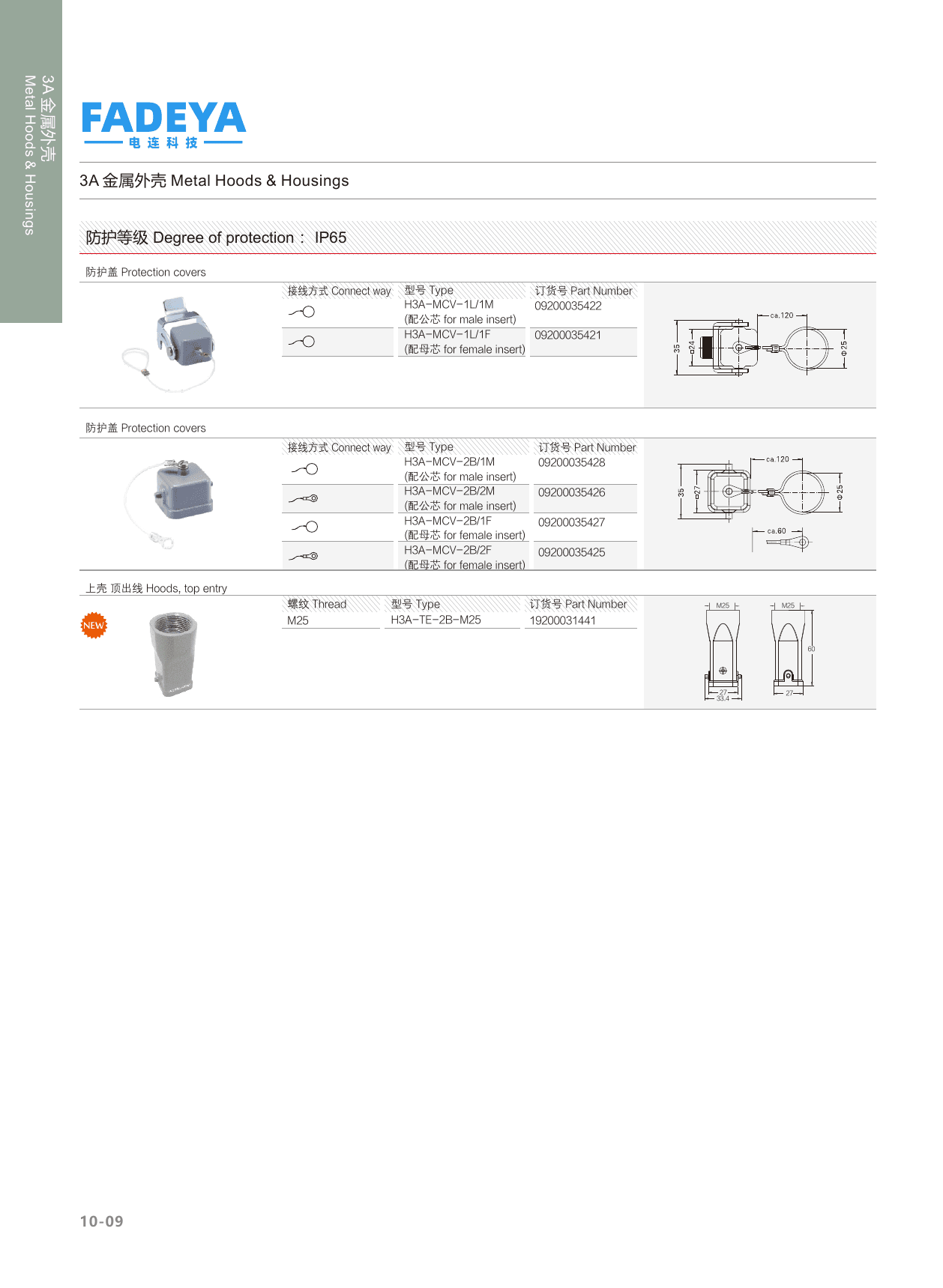

Each datasheet image is a full catalog page (contact arrangement, panel cut-out, dimensions, order table and parameters). Inserts ship as male (M) or female (F) halves and are ordered separately. Terminal-type suffix: none = screw, C = crimp, S = cage-clamp, Z = quick-lock (push-in), SS = double cage-clamp (two conductors per contact). 16A crimp contacts (CESM/CEGM silver/gold series), crimp tool TL02G and removal tool TL01 are shared accessories listed on the datasheet pages and will be catalogued in the accessories batch.
Technical Parameters
| Temperature Range | -40°C ... +125°C |
| Flammability | UL94 V0 |
| Seal | NBR |
| Standards | DIN EN 60529 |
| Material | Zinc / aluminium die-cast (corrosion resistant) |
| Colour | Grey |
| Locking Element | Metal spring lever (galvanized / nickel-plated steel) |
| Protection | IP65 |
| Component Type | Metal protection covers (MCV, tethered) + new M25 top-entry hood |
| Threads | M25 (new top-entry hood) |
| Note | H3A-TE-2B-M25 is a new M25-thread metal top-entry hood; MCV covers fit 1L housings and 2B hoods |
