Hoods & Housings A SeriesSize 3A
3A Pressure-Tight Hoods & Housings (IP68) — H Version
Download the complete PDF catalogue for full specifications and ordering details.
Part Numbers
HP3A/H-TE-2S-M20
HP3A/H-TE-2S-PG13.5
HP3A/H-TE-2T-M20
HP3A/H-TE-2T-PG13.5
C.HP3A/H-TE-2S-M20
C.HP3A/H-TE-2S-PG13.5
C.HP3A/H-TE-2T-M20
C.HP3A/H-TE-2T-PG13.5
HP3A/H-BK-2H
HP3A/H-BK-2T
C.HP3A/H-BK-2H
C.HP3A/H-BK-2T

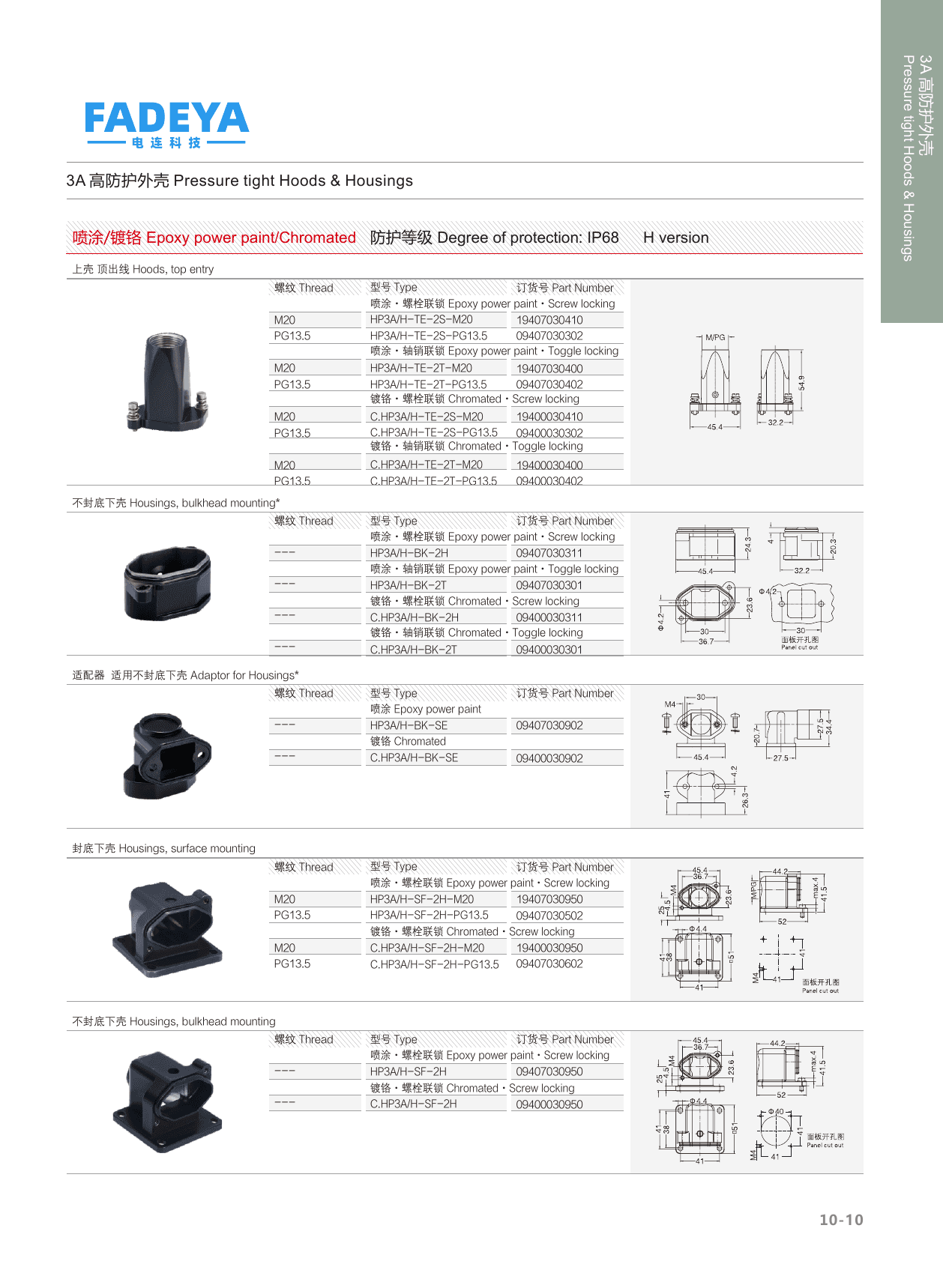

Each datasheet image is a full catalog page (contact arrangement, panel cut-out, dimensions, order table and parameters). Inserts ship as male (M) or female (F) halves and are ordered separately. Terminal-type suffix: none = screw, C = crimp, S = cage-clamp, Z = quick-lock (push-in), SS = double cage-clamp (two conductors per contact). 16A crimp contacts (CESM/CEGM silver/gold series), crimp tool TL02G and removal tool TL01 are shared accessories listed on the datasheet pages and will be catalogued in the accessories batch.
Technical Parameters
| Temperature Range | -40°C ... +125°C |
| Flammability | UL94 V0 |
| Seal | NBR |
| Standards | DIN EN 60529 |
| Surface | Epoxy powder paint / chromated |
| Material | Zinc / aluminium die-cast (corrosion resistant) |
| Colour | Black or grey |
| Locking Element | Stainless-steel screw or toggle locking |
| Protection | IP68 (pressure-tight) |
| Housing Types | Top-entry hood, bulkhead housing, bulkhead adaptor, surface-mount housing |
| Threads | M20 / PG13.5 |
| Locking | 2S = screw locking / 2T = toggle locking; 2H = screw bulkhead |
| Finish | HP3A/H = epoxy powder paint · C.HP3A/H = chromated |
