3A Pressure-Tight Hoods & Housings (IP68) — High-Construction & W Version
Download the complete PDF catalogue for full specifications and ordering details.
Part Numbers
HP3A/H-TEH-2S-M25
HP3A/H-TEH-2T-M25
C.HP3A/H-TEH-2S-M25
C.HP3A/H-TEH-2T-M25
HP3A-TE-2S-M20
HP3A-TE-2S-PG11
HP3A-BK-2H
HP3A/H-MCV-2S
HP3A/H-MCV-2S/2S
HP3A/H-MCV-2T
HP3A/H-MCV-2T/2S
C.HP3A/H-MCV-2S

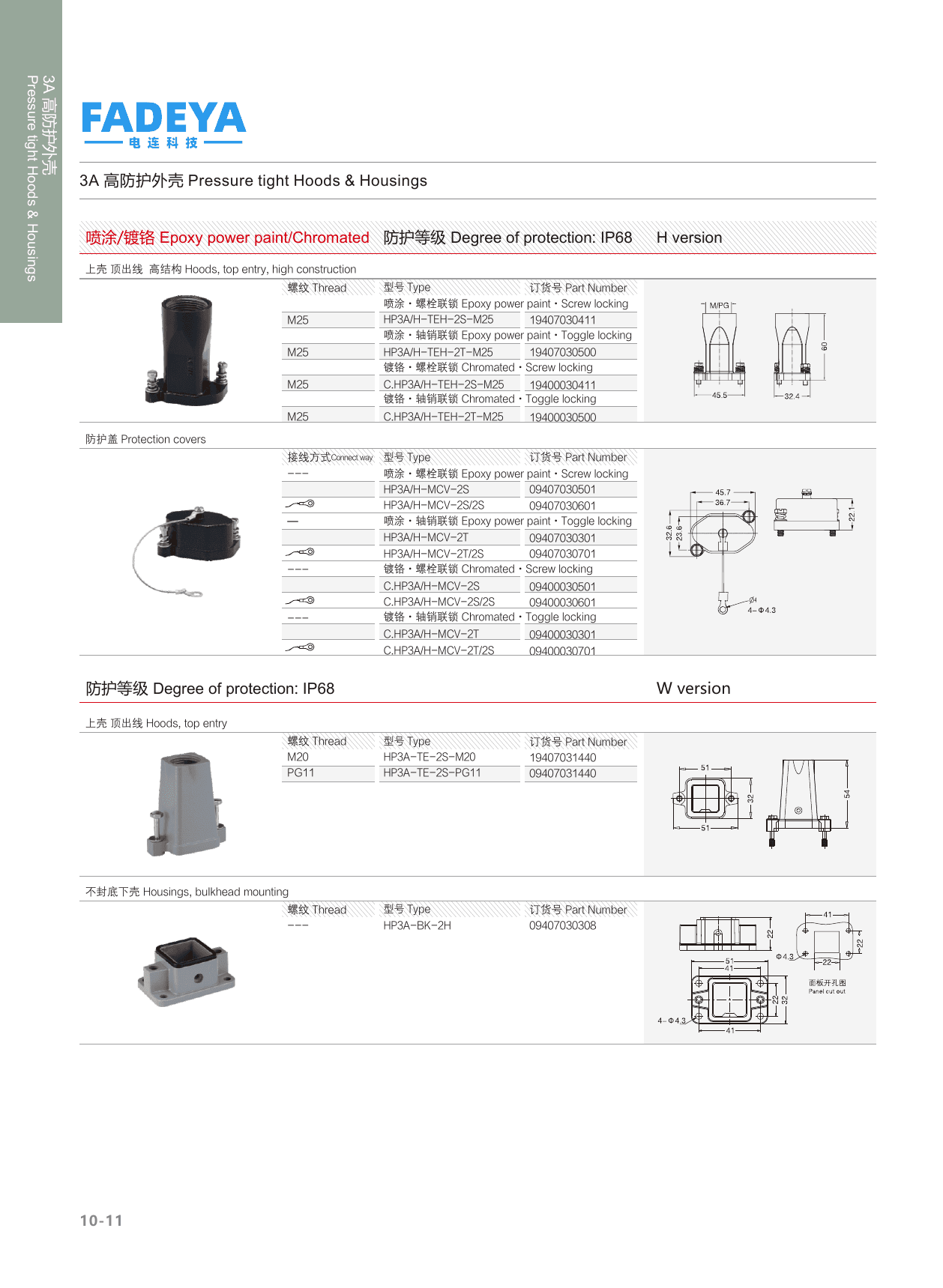

Each datasheet image is a full catalog page (contact arrangement, panel cut-out, dimensions, order table and parameters). Inserts ship as male (M) or female (F) halves and are ordered separately. Terminal-type suffix: none = screw, C = crimp, S = cage-clamp, Z = quick-lock (push-in), SS = double cage-clamp (two conductors per contact). 16A crimp contacts (CESM/CEGM silver/gold series), crimp tool TL02G and removal tool TL01 are shared accessories listed on the datasheet pages and will be catalogued in the accessories batch.
Technical Parameters
| Temperature Range | -40°C ... +125°C |
| Flammability | UL94 V0 |
| Seal | NBR |
| Standards | DIN EN 60529 |
| Surface | Epoxy powder paint / chromated |
| Material | Zinc / aluminium die-cast (corrosion resistant) |
| Colour | Black or grey |
| Locking Element | Stainless-steel screw or toggle locking |
| Protection | IP68 (pressure-tight) |
| Housing Types | High-construction top-entry hood (TEH, M25), top-entry hood, bulkhead housing, protection covers (MCV) |
| Threads | M25 (high construction) / M20 / PG11 |
| Locking | 2S = screw / 2T = toggle locking |
| Versions | H version (screw/toggle) and W version (HP3A-...) |
| Finish | HP3A/H = epoxy powder paint · C.HP3A/H = chromated |
