Hoods & Housings A SeriesSize 16A
16A Metal Hoods & Housings (IP65)
Download the complete PDF catalogue for full specifications and ordering details.
Part Numbers
H16A-SE-2B-M20
H16A-SE-2B-PG16
H16A-SEH-2B-M25
H16A-SEH-2B-PG16
H16A-SEH-2B-PG21
H16A-TE-2B-M20
H16A-TE-2B-PG16
H16A-TEH-2B-M25
H16A-TEH-2B-PG16
H16A-TEH-2B-PG21
H16A-BK-1L
H16A-BK-1L-CV

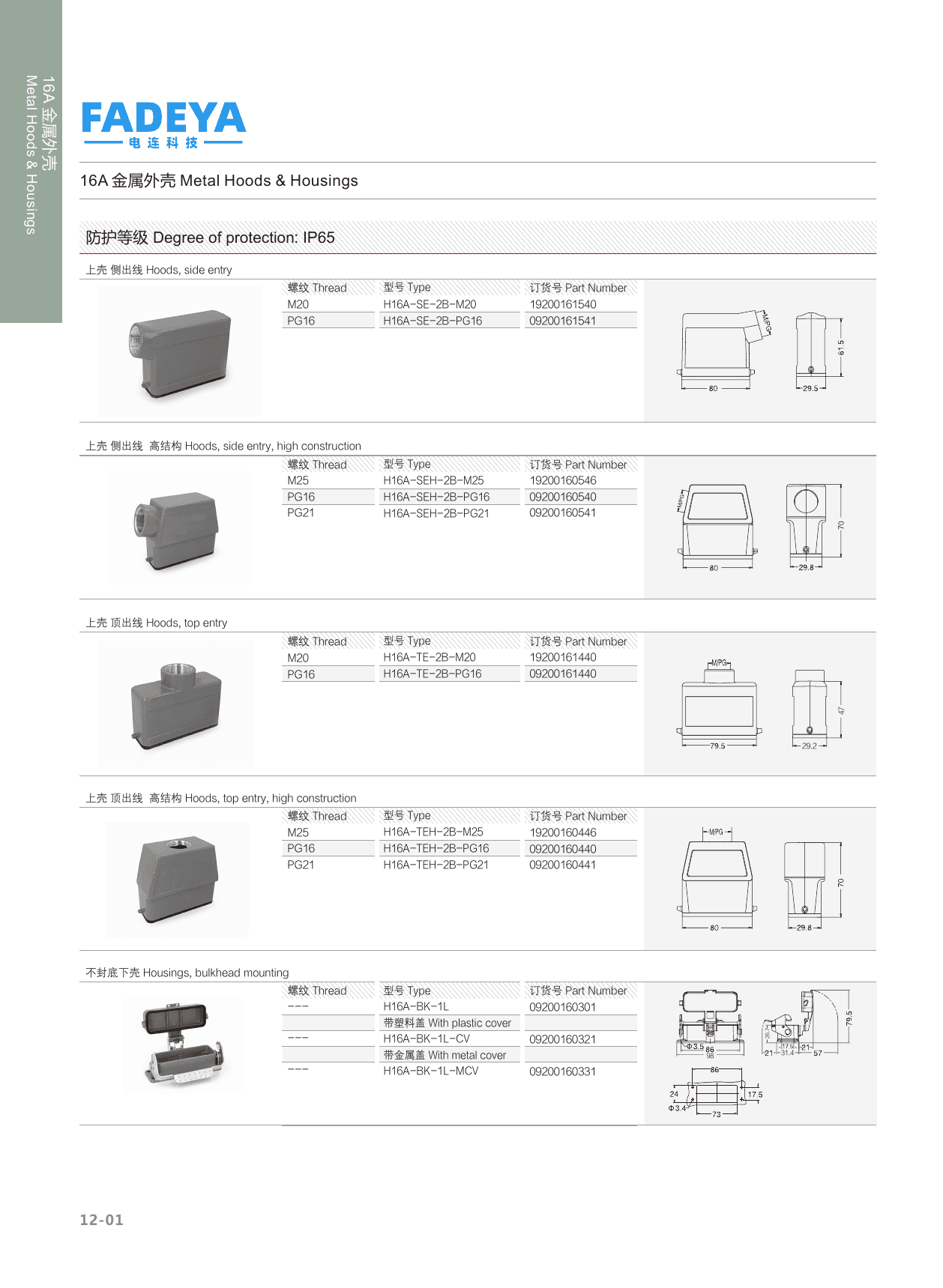

Each datasheet image is a full catalog page (contact arrangement, panel cut-out, dimensions, order table and parameters). Inserts ship as male (M) or female (F) halves and are ordered separately. Terminal-type suffix: none = screw, C = crimp, S = cage-clamp, Z = quick-lock (push-in), SS = double cage-clamp (two conductors per contact). 16A crimp contacts (CESM/CEGM silver/gold series), crimp tool TL02G and removal tool TL01 are shared accessories listed on the datasheet pages and will be catalogued in the accessories batch.
Technical Parameters
| Temperature Range | -40°C ... +125°C |
| Flammability | UL94 V0 |
| Seal | NBR |
| Standards | DIN EN 60529 |
| Material | Zinc / aluminium die-cast (corrosion resistant) |
| Colour | Grey |
| Locking Element | Metal spring lever (galvanized / nickel-plated steel) |
| Protection | IP65 |
| Housing Types | Side-entry hood (std + high SEH), top-entry hood (std + high TEH), bulkhead housing (plain / plastic cover CV / metal cover MCV) |
| Threads | M20 / M25 / PG16 / PG21 |
| Locking | 2 levers (2B hood) / 1 lever (1L housing) |
Datasheet
