Hoods & Housings A SeriesSize 32A
32A Metal Hoods & Housings (IP65)
Download the complete PDF catalogue for full specifications and ordering details.
Part Numbers
H32A-SE-4B-M25
H32A-SE-4B-PG21
H32A-SEH-4B-M32
H32A-SEH-4B-PG21
H32A-SEH-4B-PG29
H32A-TEH-4B-M25
H32A-TEH-4B-M32
H32A-TEH-4B-PG21
H32A-TEH-4B-PG29
H32A-BK-2L
H32A-SF-2L-M25
H32A-SF-2L-M32

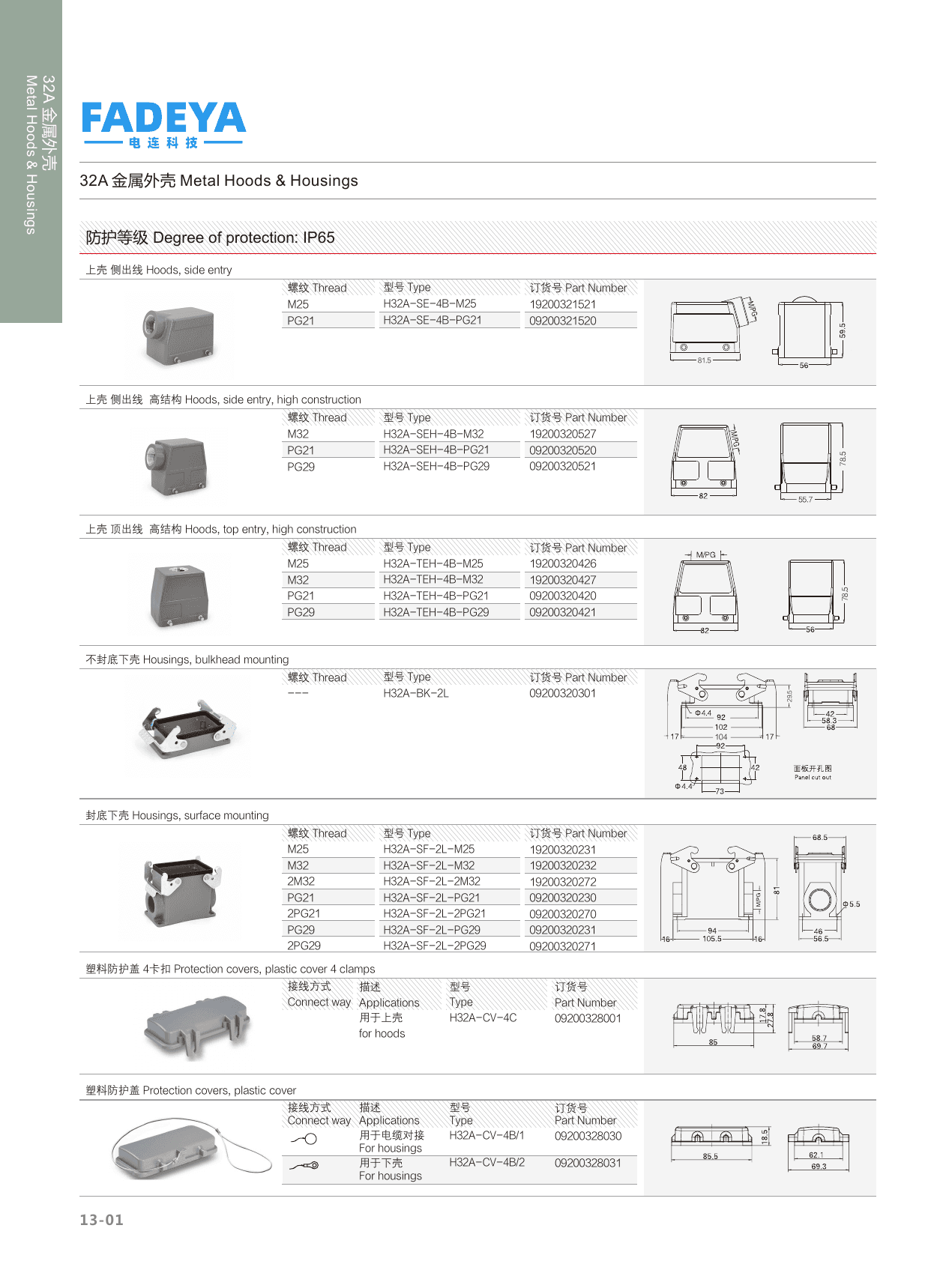

Each datasheet image is a full catalog page (contact arrangement, panel cut-out, dimensions, order table and parameters). Inserts ship as male (M) or female (F) halves and are ordered separately. Terminal-type suffix: none = screw, C = crimp, S = cage-clamp, Z = quick-lock (push-in), SS = double cage-clamp (two conductors per contact). 16A crimp contacts (CESM/CEGM silver/gold series), crimp tool TL02G and removal tool TL01 are shared accessories listed on the datasheet pages and will be catalogued in the accessories batch.
Technical Parameters
| Temperature Range | -40°C ... +125°C |
| Flammability | UL94 V0 |
| Seal | NBR |
| Standards | DIN EN 60529 |
| Material | Zinc / aluminium die-cast (corrosion resistant) |
| Colour | Grey |
| Locking Element | Metal spring lever (galvanized / nickel-plated steel) |
| Protection | IP65 |
| Housing Types | Side-entry hood (std + high SEH), high top-entry hood (TEH), bulkhead housing (2L), surface-mount housing (2L), plastic protection covers (4C hood / 4B housing) |
| Threads | M25 / M32 / PG21 / PG29 |
| Locking | 4 bolts (4B) / 2 levers (2L) |
Datasheet
