Hoods & Housings B Series (32B / 48B)Size 48B
48B Metal Hoods & Housings — Side & Top Entry, Bulkhead & Surface Mount · 2-Bolt / 1-Lever (IP65)
Download the complete PDF catalogue for full specifications and ordering details.
Part Numbers
H48B-SE-2B-M32
H48B-SE-2B-M40
H48B-SE-2B-M50
H48B-SE-2B-PG29
H48B-SE-2B-PG36
H48B-SE-2B-PG42
H48B-TE-2B-M32
H48B-TE-2B-M40
H48B-TE-2B-M50
H48B-TE-2B-PG29
H48B-TE-2B-PG36
H48B-TE-2B-PG42
Each datasheet image is a full catalog page (contact arrangement, panel cut-out, dimensions, order table and parameters). Inserts ship as male (M) or female (F) halves and are ordered separately. Terminal-type suffix: none = screw, C = crimp, S = cage-clamp, Z = quick-lock (push-in), SS = double cage-clamp (two conductors per contact). 16A crimp contacts (CESM/CEGM silver/gold series), crimp tool TL02G and removal tool TL01 are shared accessories listed on the datasheet pages and will be catalogued in the accessories batch.
Technical Parameters
| Protection | IP65 |
| Compatible Insert Size | 48B |
| Material | Zinc / aluminium die-cast |
| Colour | Grey |
| Locking Element | Metal spring lever (galvanized / nickel-plated steel) |
| Temperature Range | -40°C ... +125°C |
| Standards | DIN EN 60529 |
| Seal | NBR |
| Housing Types | side-entry hood, top-entry hood, bulkhead housing (plain / plastic-cover / metal-cover), surface-mount housing (plain / plastic-cover / metal-cover) |
| Locking | 2-Bolt, 1-Lever |
| Threads | M32 / M40 / M50 / PG29 / PG36 / PG42 |

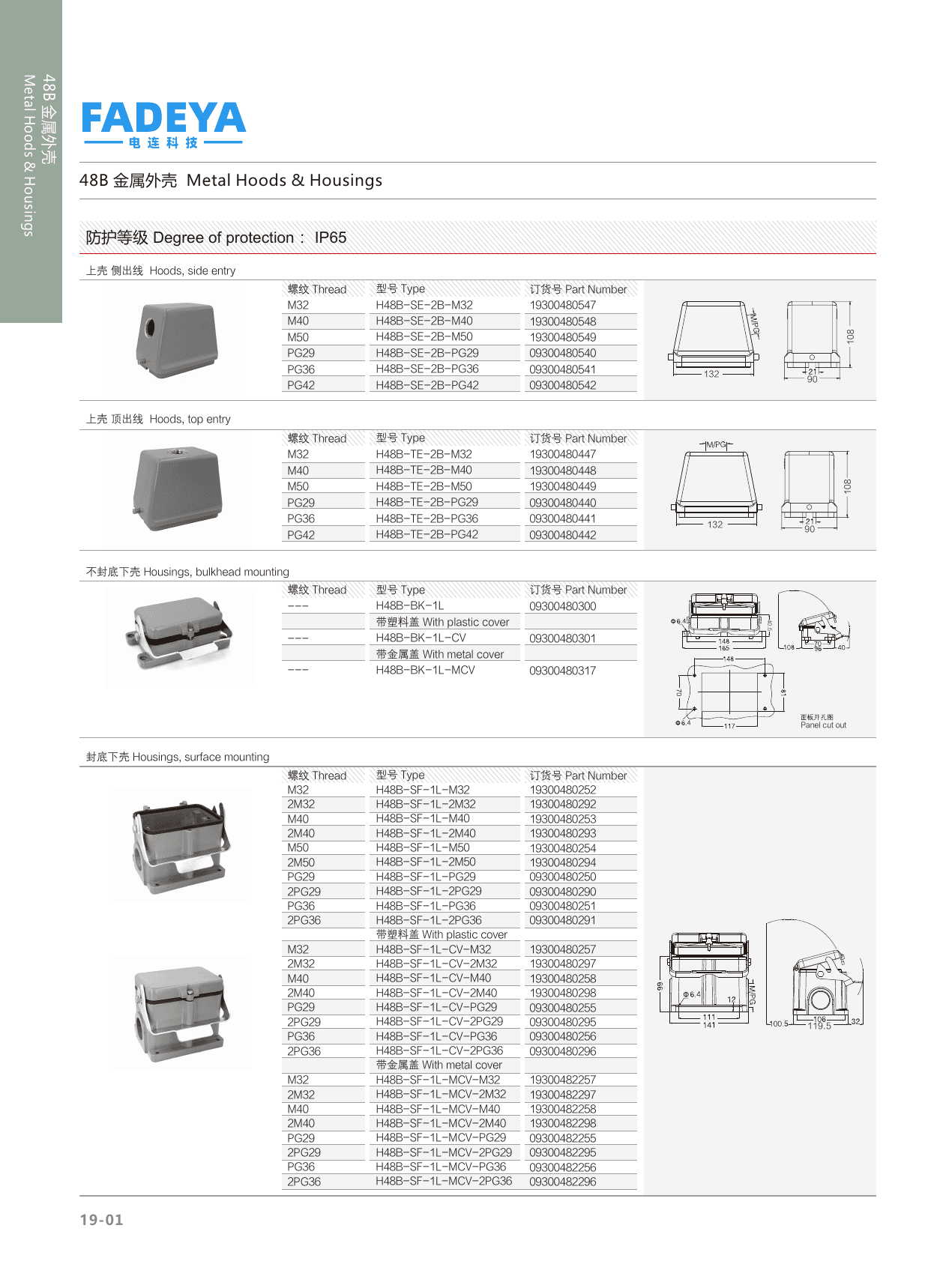

Datasheet
