Han Q InsertsAxial screw
HQV-002/0 Compact Inserts (High Voltage)
2 pin + PE
Download the complete PDF catalogue for full specifications and ordering details.
Part Numbers
HQV-002.1-M
HQV-002.2-M
HQV-002.1-F
HQV-002.2-F

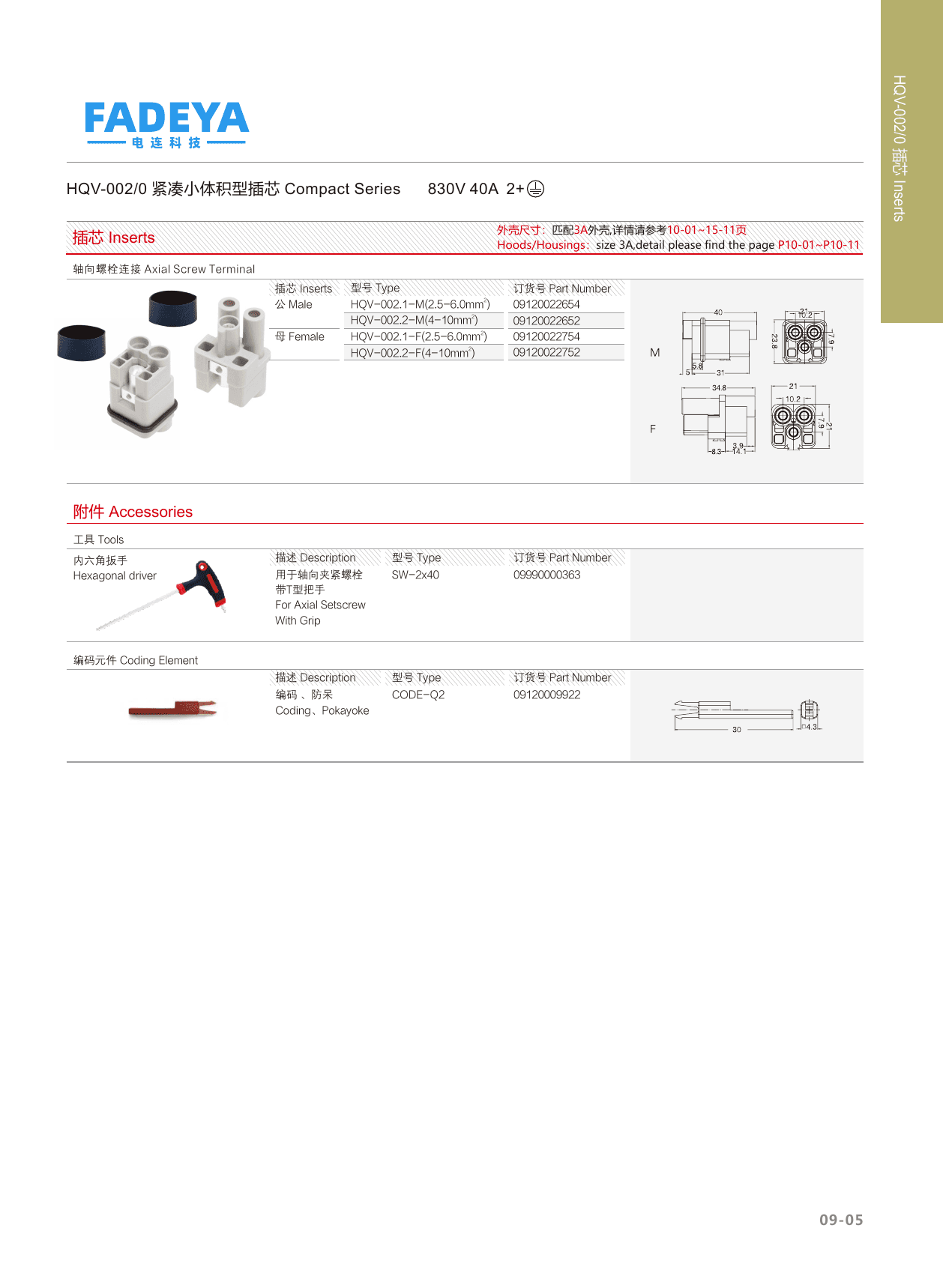

Each datasheet image is a full catalog page (contact arrangement, panel cut-out, dimensions, order table and parameters). Inserts ship as male (M) or female (F) halves and are ordered separately. Terminal-type suffix: none = screw, C = crimp, S = cage-clamp, Z = quick-lock (push-in), SS = double cage-clamp (two conductors per contact). 16A crimp contacts (CESM/CEGM silver/gold series), crimp tool TL02G and removal tool TL01 are shared accessories listed on the datasheet pages and will be catalogued in the accessories batch.
Technical Parameters
| Rated Current | 40A |
| Rated Voltage | 830V |
| Rated Impulse Voltage | 6kV |
| Pollution Degree | 3 |
| Rated Voltage (UL/CSA) | 600V |
| Contact Material | Copper alloy |
| Contact Plating | Hard-silver plated |
| Contact Resistance | ≤1mΩ |
| Insulation Resistance | ≥10¹⁰ Ω |
| Housing Material | Polycarbonate (PC) plastic hood / Zinc die-cast metal hood |
| Temperature Range | -40°C ... +125°C |
| Flammability | UL94 V0 |
| Protection | IP67 (plastic) / IP44 metal, IP67 with seal screw |
| Mating Cycles | ≥500 |
| Wire Gauge | HQV-002.1: 2.5–6.0mm² · HQV-002.2: 4–10mm² (overall 2.5–10mm², AWG 14–8) |
| Tightening Torque | 1.8Nm |
| Stripping Length | 8mm |
| Termination | Axial screw |
| Standards | DIN EN 60664 / DIN EN 61984 |
| Matching Hood/Housing | 3A hood/housing |
| Order Numbers | HQV-002.1-M 09120022654 · HQV-002.2-M 09120022652 · HQV-002.1-F 09120022754 · HQV-002.2-F 09120022752 |
| Accessory | Hex driver SW-2x40 (09990000363) · Coding/Pokayoke CODE-Q2 (09120009922) |
