Han Q InsertsCrimp
HQ-005/0 Compact Inserts
5 pin + PE
Download the complete PDF catalogue for full specifications and ordering details.
Part Numbers
HQ-005/0-MC
HQ-005/0-FC

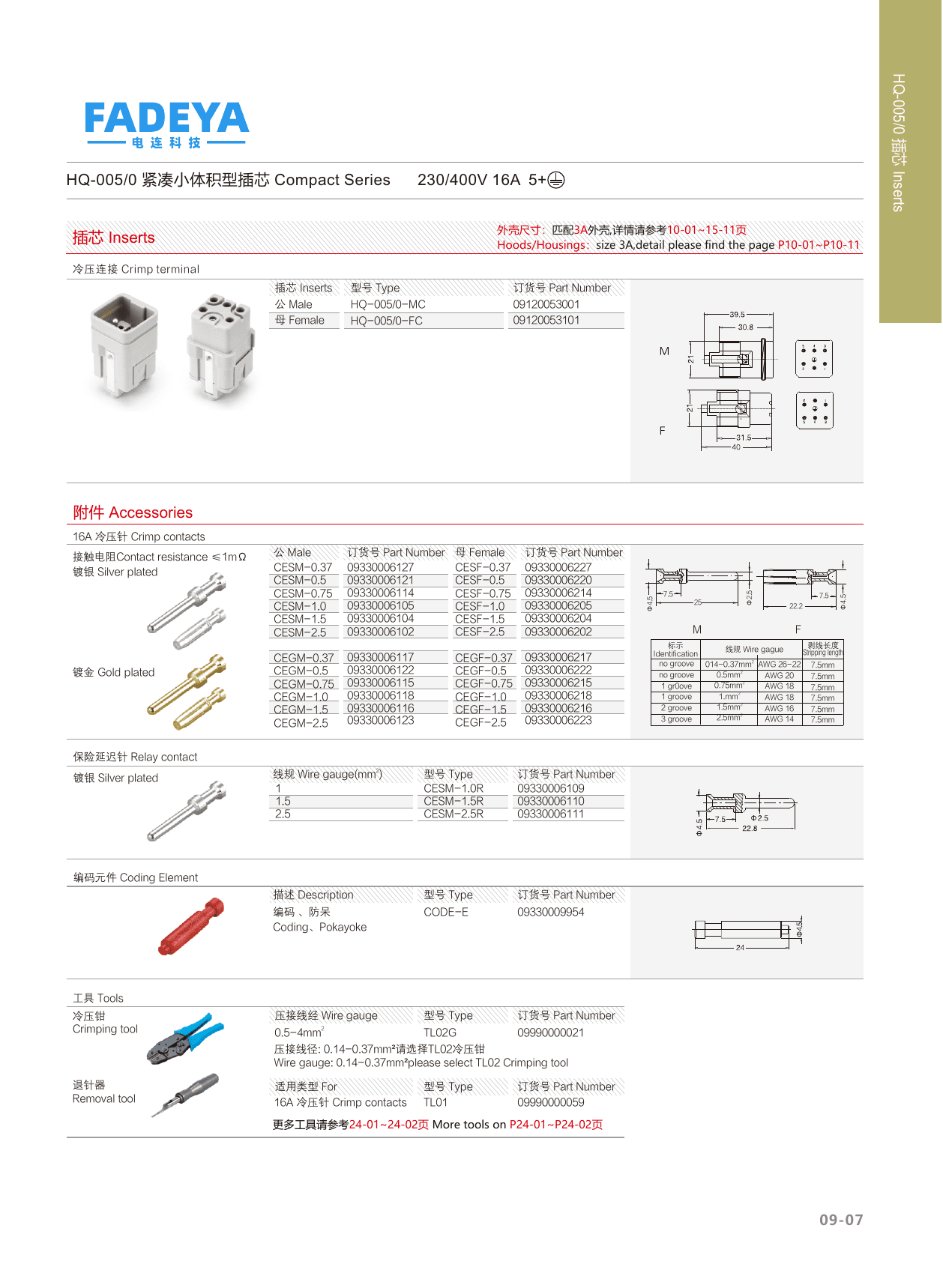

Each datasheet image is a full catalog page (contact arrangement, panel cut-out, dimensions, order table and parameters). Inserts ship as male (M) or female (F) halves and are ordered separately. Terminal-type suffix: none = screw, C = crimp, S = cage-clamp, Z = quick-lock (push-in), SS = double cage-clamp (two conductors per contact). 16A crimp contacts (CESM/CEGM silver/gold series), crimp tool TL02G and removal tool TL01 are shared accessories listed on the datasheet pages and will be catalogued in the accessories batch.
Technical Parameters
| Rated Current | 16A |
| Rated Voltage | 230V (conductor-ground) / 400V (conductor-conductor) |
| Rated Impulse Voltage | 4kV |
| Pollution Degree | 3 |
| Rated Voltage (PD2) | 16A 320/500V 4kV (pollution degree 2) |
| Rated Voltage (UL/CSA) | 600V |
| Contact Material | Copper alloy |
| Contact Plating | Hard-silver or hard-gold plated |
| Contact Resistance | ≤1mΩ |
| Insulation Resistance | ≥10¹⁰ Ω |
| Housing Material | Polycarbonate (PC) plastic hood / Zinc die-cast metal hood |
| Temperature Range | -40°C ... +125°C |
| Flammability | UL94 V0 |
| Protection | IP67 (plastic) / IP44 metal, IP67 with seal screw |
| Mating Cycles | ≥500 |
| Wire Gauge | 0.14–2.5mm² AWG 26–14 (PE screw terminal 2.5mm² AWG 14) |
| Termination | Crimp |
| Standards | DIN EN 60664 / DIN EN 61984 |
| Matching Hood/Housing | 3A hood/housing |
| Order Numbers | HQ-005/0-MC 09120053001 · HQ-005/0-FC 09120053101 |
| Crimp Contacts | 16A contacts: CESM/CESF (silver), CEGM/CEGF (gold), 0.37–2.5mm²; relay contacts CESM-1.0R / 1.5R / 2.5R |
| Accessory | Coding/Pokayoke CODE-E (09330009954) · Crimp tool TL02G (09990000021) · Removal tool TL01 (09990000059) |
Datasheet
