Crimp Contacts
100A Crimp Contacts — Crown-Spring Socket · Silver (for HM, HK inserts)
Download the complete PDF catalogue for full specifications and ordering details.
Part Numbers
CKSM-10
CKSM-16
CKSM-25
CKSM-35
CKSF-10G
CKSF-16G
CKSF-25G
CKSF-35G
CKSF-10
CKSF-16
CKSF-25
CKSF-35

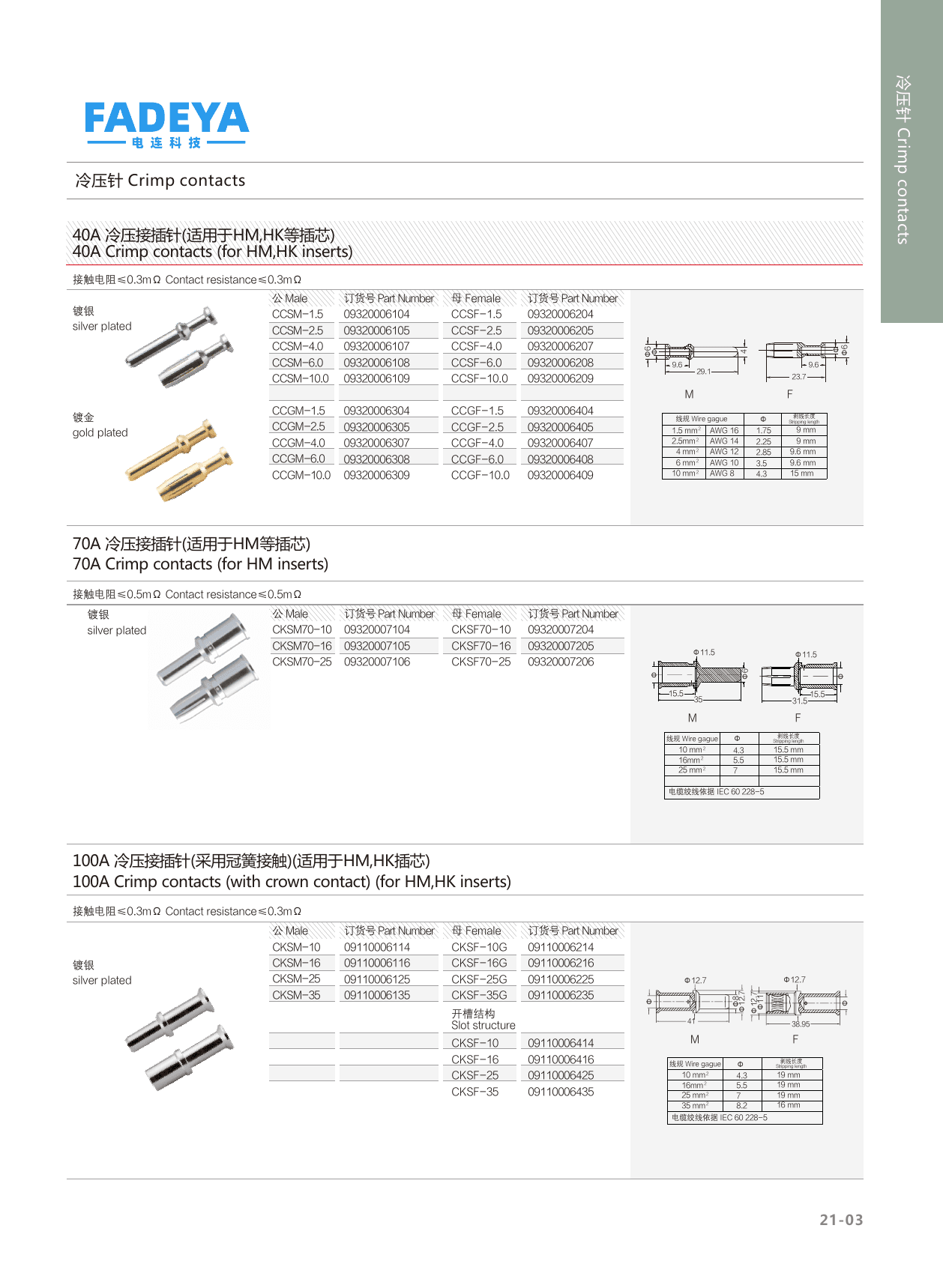

Each datasheet image is a full catalog page (contact arrangement, panel cut-out, dimensions, order table and parameters). Inserts ship as male (M) or female (F) halves and are ordered separately. Terminal-type suffix: none = screw, C = crimp, S = cage-clamp, Z = quick-lock (push-in), SS = double cage-clamp (two conductors per contact). 16A crimp contacts (CESM/CEGM silver/gold series), crimp tool TL02G and removal tool TL01 are shared accessories listed on the datasheet pages and will be catalogued in the accessories batch.
Technical Parameters
| Current Rating | 100 A |
| Contact Type | Crimp (solder-free), crown-spring female contact |
| Gender | Male & female (pin & socket) |
| Plating | Silver |
| Contact Resistance | ≤ 0.3 mΩ |
| Wire Range | 10 ... 35 mm² |
| Stripping Length | 16 ... 19 mm |
| Conductor Standard | Stranded to IEC 60228-5 |
| Compatible Inserts | HM / HK |
| Note | Female available as crown-spring (…G) or slot-structure (standard) socket |
