Crimp Contacts
200A Crimp Contacts — Silver (for HM inserts)
Download the complete PDF catalogue for full specifications and ordering details.
Part Numbers
CHSM200-25
CHSM200-35
CHSM200-50
CHSM200-70
CHSF200-25
CHSF200-35
CHSF200-50
CHSF200-70
Each datasheet image is a full catalog page (contact arrangement, panel cut-out, dimensions, order table and parameters). Inserts ship as male (M) or female (F) halves and are ordered separately. Terminal-type suffix: none = screw, C = crimp, S = cage-clamp, Z = quick-lock (push-in), SS = double cage-clamp (two conductors per contact). 16A crimp contacts (CESM/CEGM silver/gold series), crimp tool TL02G and removal tool TL01 are shared accessories listed on the datasheet pages and will be catalogued in the accessories batch.
Technical Parameters
| Current Rating | 200 A |
| Contact Type | Crimp (solder-free) |
| Gender | Male & female (pin & socket) |
| Plating | Silver |
| Contact Resistance | ≤ 0.3 mΩ |
| Wire Range | 25 ... 70 mm² |
| Stripping Length | 22.5 mm |
| Conductor Standard | Stranded to IEC 60228-5 |
| Compatible Inserts | HM |

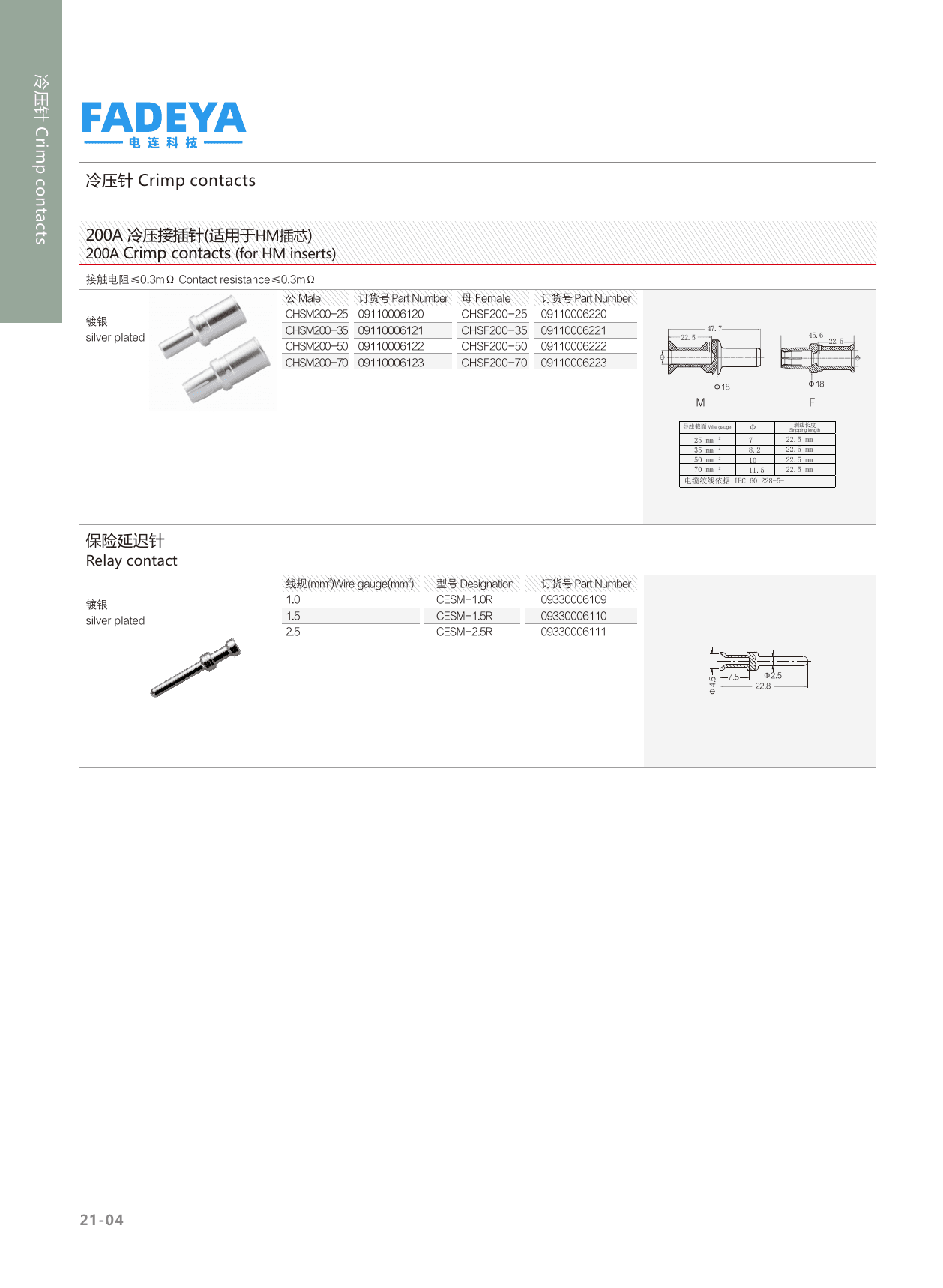

Datasheet
