M8 Boxes · Integrated Cable16-portSingleIntegrated cable
M8 Junction Box, 16-Port Wide, Integrated Cable
Wide M8 body, 16 ports, single-channel, integrated PVC/PUR cable.
Download the complete PDF catalogue for full specifications and ordering details.
Part Numbers
M8-16P-1CW-PNP-5.0PVC/GY
M8-16P-1CW-PNP-5.0PUR/GY
M8-16P-1CW-NPN-5.0PVC/GY
M8-16P-1CW-NPN-5.0PUR/GY
M8-16P-1CW-NON-5.0PVC/GY
M8-16P-1CW-NON-5.0PUR/GY
Standard cable length 5.0 m, customizable in 0.5 m increments. Channel codes: 1CN/1CW single, 2CN/2CW double (M8); 1C single, 2C double (M12). Trunk codes: 5.0PVC/PUR integrated cable, M12/M23 plug, PW bare PCB header, TB screw-terminal hood. Colors: GY/GR Gray. Reference pages 03-06 cover the product overview, model numbering and mounting dimensions.
Technical Parameters
| Rated Supply | 24 V DC/AC (Ue) |
| Rated Voltage | 10 ... 30 V DC (Ub) |
| Load Current | 2 A per port |
| Current Capacity | 6 A total |
| Power LED | Green |
| IP Rating | IP67 |
| Std. Cable Length | 5.0 m (0.5 m increments) |

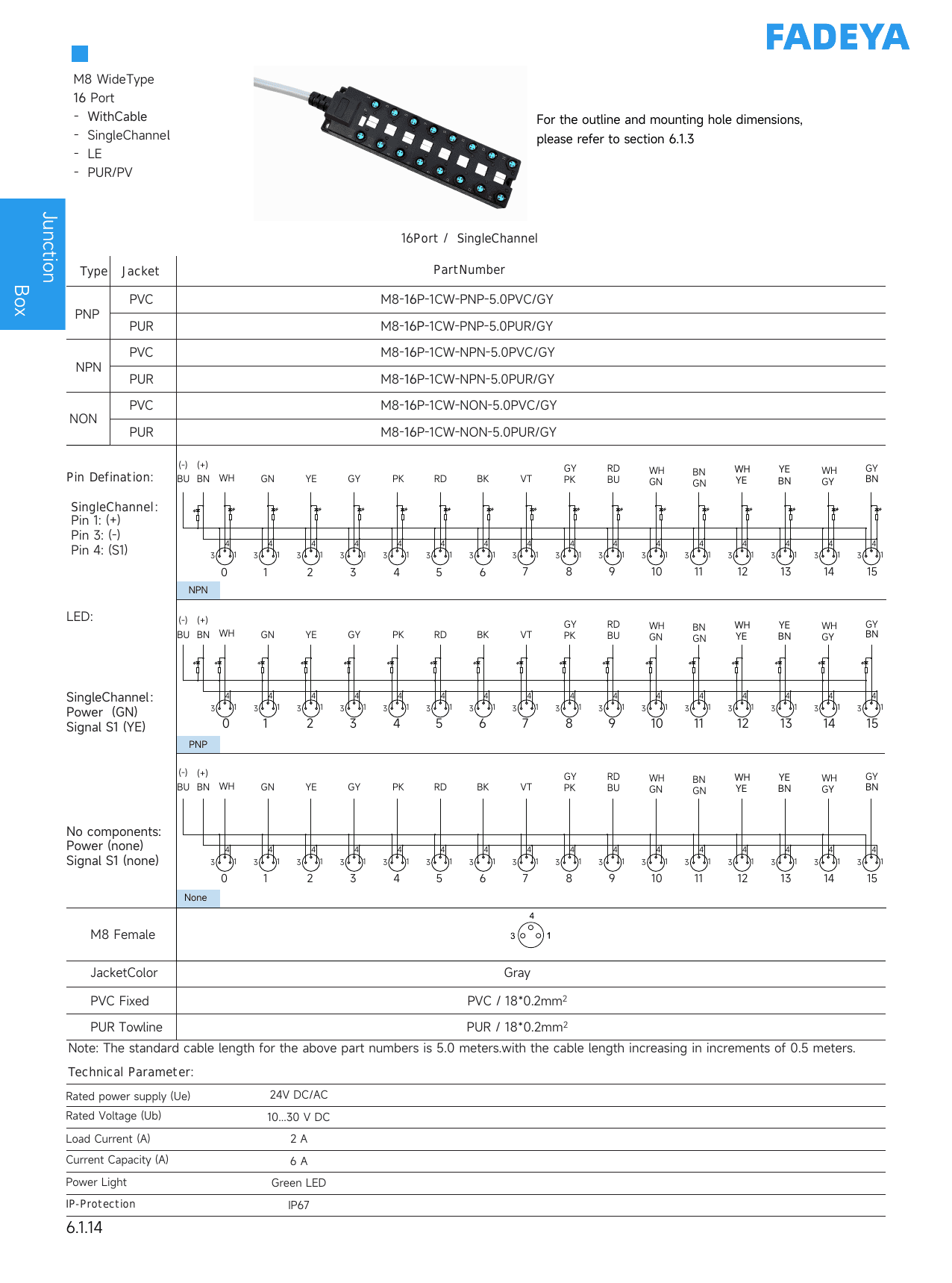

Datasheet
