Field-Wireable ConnectorsA/B/D4 · 5 · 8 pin
M12 Field-Wireable Connector — Male
Download the complete PDF catalogue for full specifications and ordering details.
Part Numbers
M12A-M04S
M12A-M05S
M12A-M08S
M12B-M05S
M12D-M04S
M12A-M04A
M12A-M05A
M12A-M08A
M12B-M05A
M12D-M04A
Standard cable length 2m (cordsets) / 0.5m (flanges); custom lengths available. B or D coding available on request — replace M12A with M12B or M12D in the part number. Cable jacket (PVC / PUR / High-Flexible / Anti-Welding) and color (GY / BK / OG) options as listed; contact us to confirm stock for a specific configuration.
Technical Parameters
| Rated Voltage | 250V (4-pin) · 125V (5-pin) · 60V (8-pin) |
| IP Rating | IP67 |
| Cable Connection | Screw (field-wireable) |
| Cross Section | 0.75mm² / 0.5mm² |
| Locking | Metal nut locking |
| Cable Entry | PG7: 4-6mm · PG9: 6-8mm |

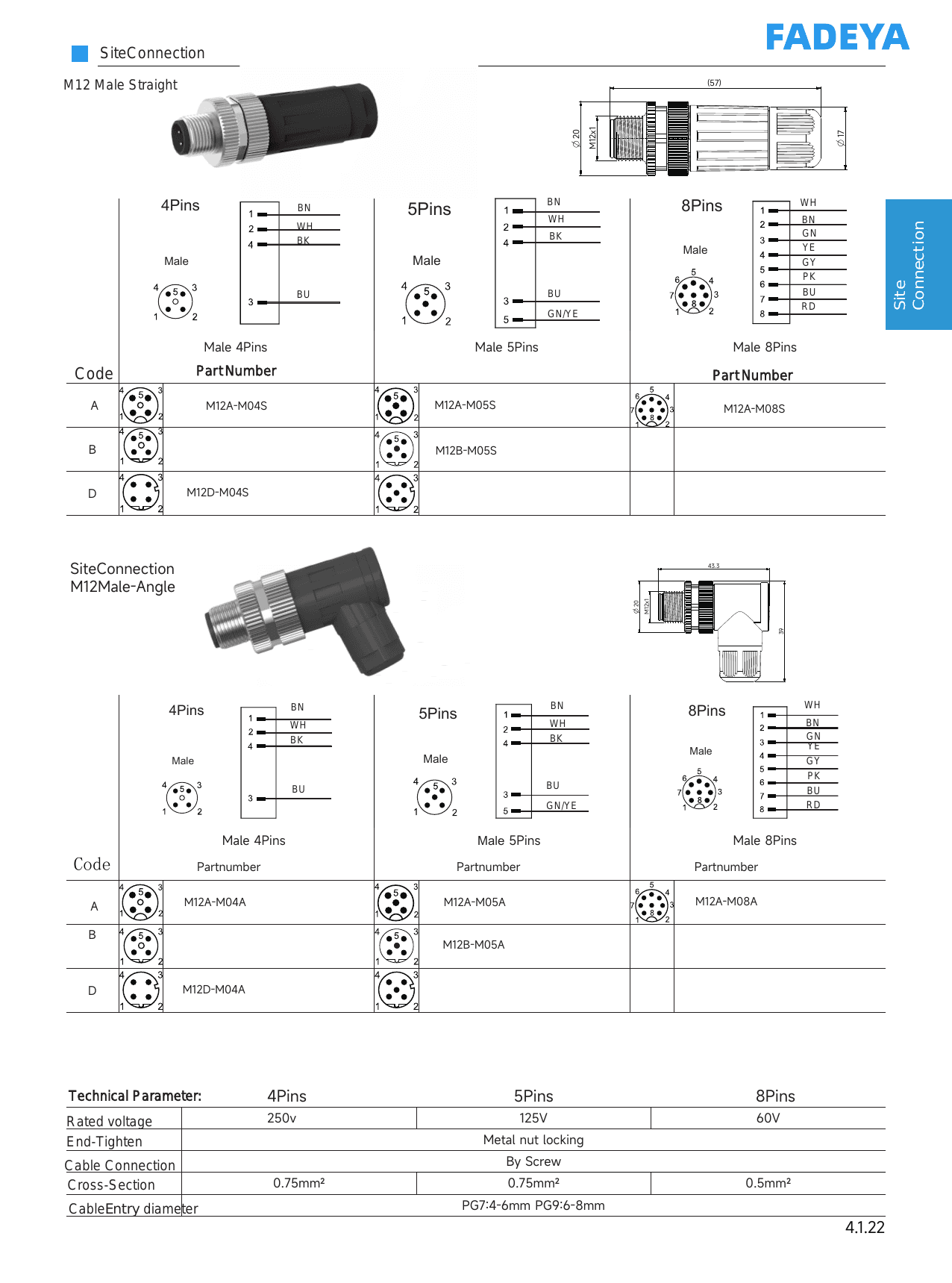

Datasheet
