M12 Field-Wireable — 6-Interface Junction
Download the complete PDF catalogue for full specifications and ordering details.
Part Numbers
M12-M04S-YA
M12-M04S-YB
Standard cable length 2m (cordsets) / 0.5m (flanges); custom lengths available. B or D coding available on request — replace M12A with M12B or M12D in the part number. Cable jacket (PVC / PUR / High-Flexible / Anti-Welding) and color (GY / BK / OG) options as listed; contact us to confirm stock for a specific configuration.
Technical Parameters
| Rated Voltage | 60V AC/DC |
| Rated Current | max. 4A |
| Cross Section | max. 0.75mm² |
| IP Rating | IP67 (EN 60529) |
| Tightening | By screw |
| Note | Pins 1 & 3 can connect 2 wires |

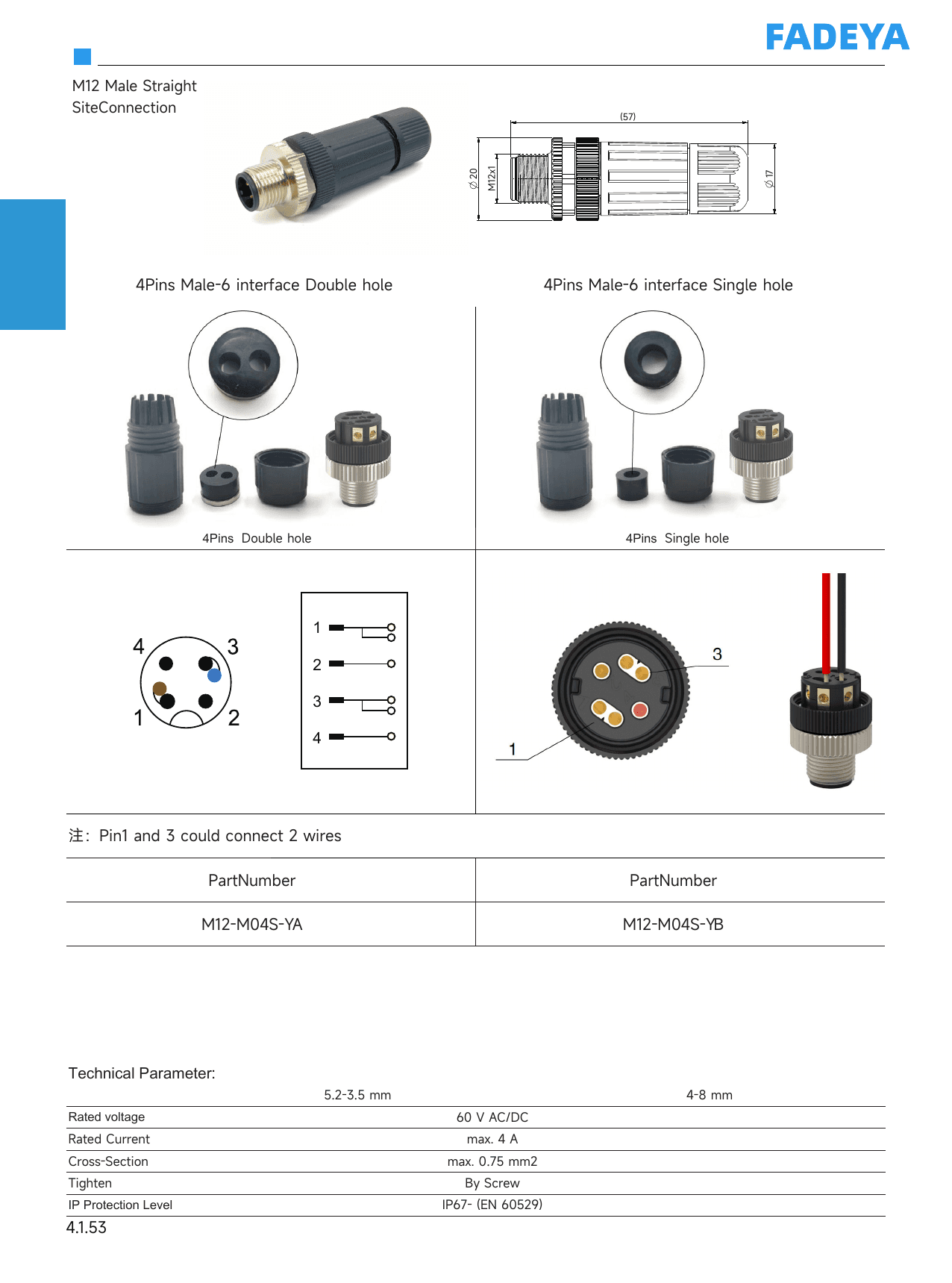

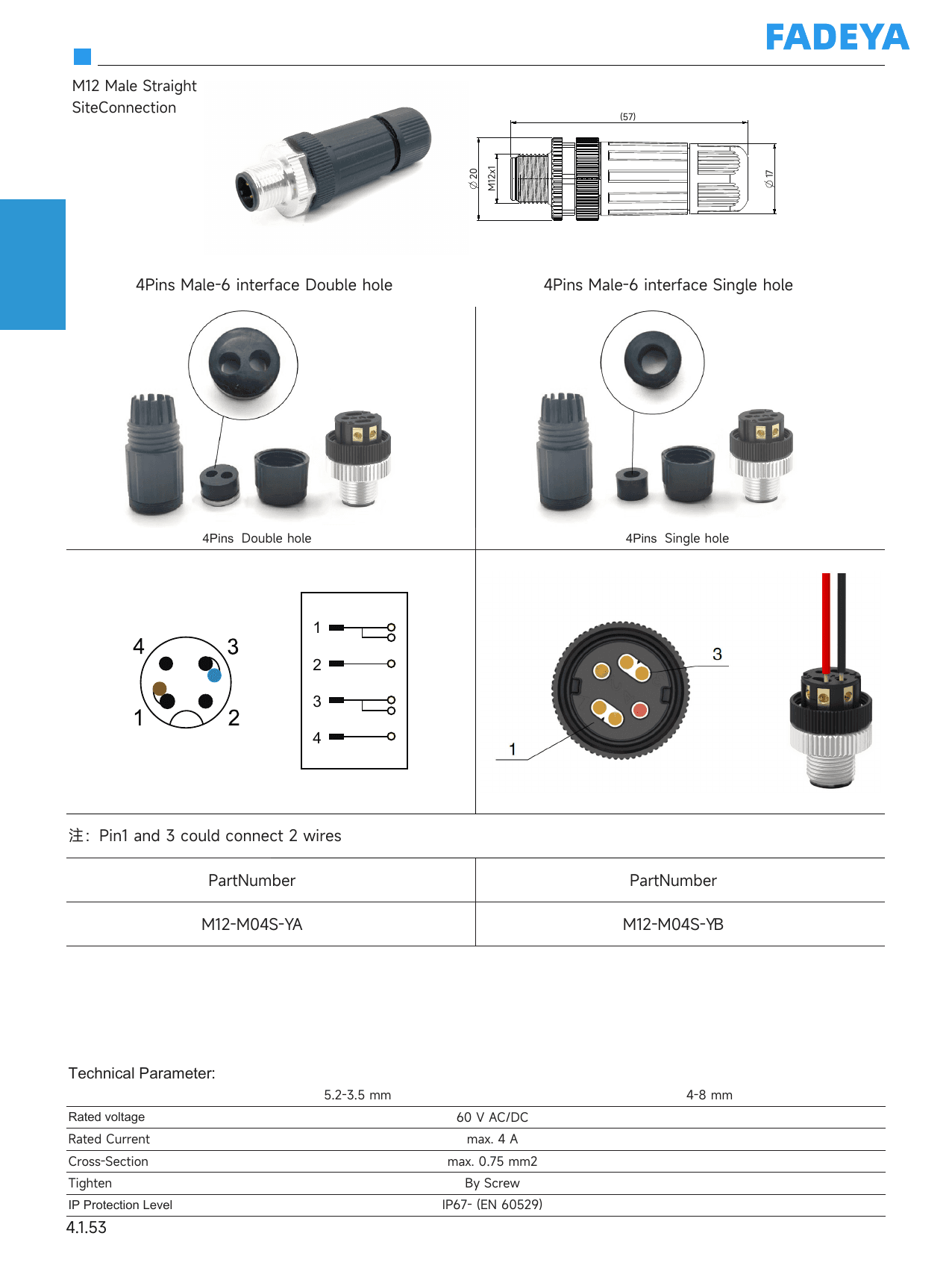

Datasheet
