Standard Mounting Brackets
Nylon Fixing Bracket
Download the complete PDF catalogue for full specifications and ordering details.
Part Numbers
FA-RGQM-23/28A
FA-RGQM-36/48A
FA-RGQM-56/70A
FA-RGQM-95A
Sizes are designated by hose ID (e.g. 36 = Ø36 mm). Brackets, accessories and telescopic boxes are selected to match the chosen hose diameter. Working temperature -40 °C to +105 °C across the range.
Technical Parameters
| Material | Modified Nylon |
| Part Code | FA-RGQM-A |
| Working Temperature | -40 °C to +105 °C |
| Color | Black |
| Fits Hose | Hose clamp R23/28–R95 |
| Features | Abrasion-resistant, high rigidity |
| Note | Single fixed bracket — requires a matching hose clamp. |
| Certification | CE · RoHS |

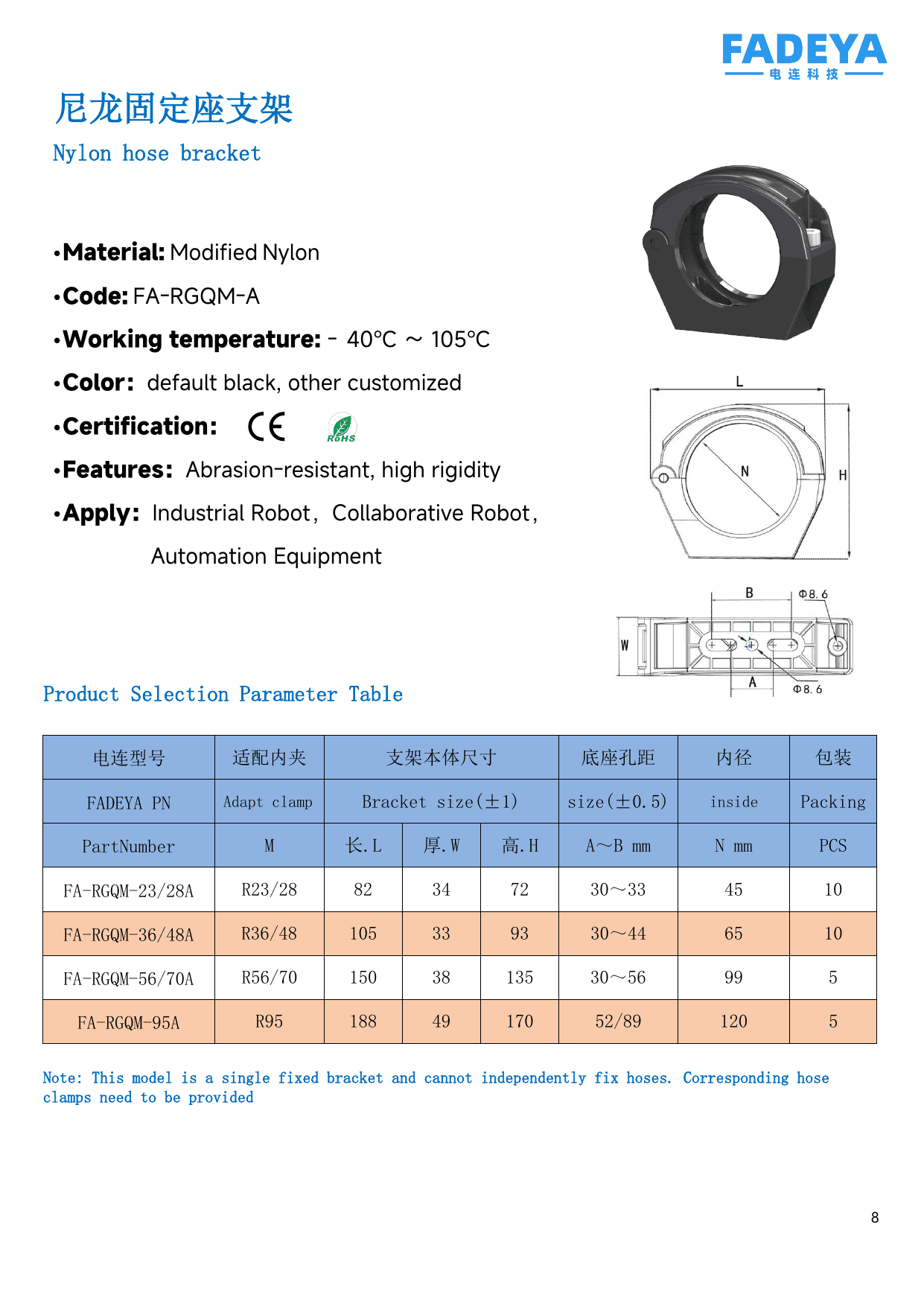

Datasheet
