Ball-Joint Fixing Bracket
Download the complete PDF catalogue for full specifications and ordering details.
Part Numbers
FA-RGHQ-23A
FA-RGHQ-28A
FA-RGHQ-36A
FA-RGHQ-48A
FA-RGHQ-56A
FA-RGHQ-70A
FA-RGHQ-95A
Sizes are designated by hose ID (e.g. 36 = Ø36 mm). Brackets, accessories and telescopic boxes are selected to match the chosen hose diameter. Working temperature -40 °C to +105 °C across the range.
Technical Parameters
| Material | Modified Nylon |
| Part Code | FA-RGHQ-A |
| Working Temperature | -40 °C to +105 °C |
| Color | Black |
| Fits Hose | Hose Ø23–95 mm |
| Features | Abrasion-resistant, high rigidity |
| Certification | CE · RoHS |

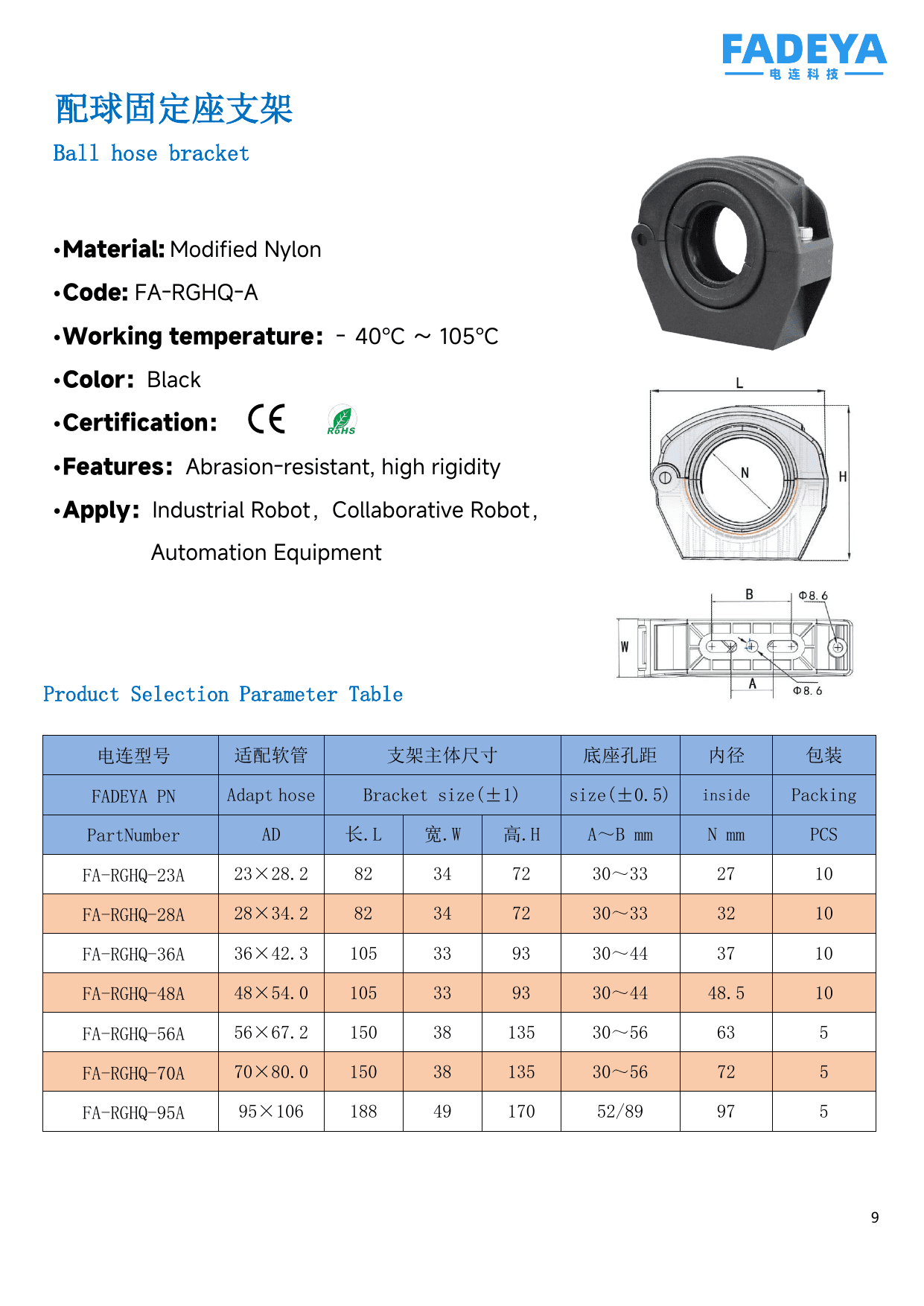

Datasheet
