Collaborative Robot Brackets
Binding Ball Fixing Bracket
Download the complete PDF catalogue for full specifications and ordering details.
Part Numbers
FA-RGCPQ-23A-L500
FA-RGCPQ-28A-L500
FA-RGCPQ-36A-L500
FA-RGCPQ-48A-L500
FA-RGCPQ-23A-L600
FA-RGCPQ-28A-L600
FA-RGCPQ-36A-L600
FA-RGCPQ-48A-L600
FA-RGCPQ-23A-L700
FA-RGCPQ-28A-L700
FA-RGCPQ-36A-L700
FA-RGCPQ-48A-L700
Sizes are designated by hose ID (e.g. 36 = Ø36 mm). Brackets, accessories and telescopic boxes are selected to match the chosen hose diameter. Working temperature -40 °C to +105 °C across the range.
Technical Parameters
| Material | Modified Nylon + Rubber |
| Part Code | FA-RGCPQ-L |
| Working Temperature | -40 °C to +105 °C |
| Color | Black |
| Strap Length | 500 / 600 / 700 / 800 mm |
| Fits Hose | Hose Ø23–48 mm |
| Features | Ball-joint bracket on a Velcro strap; compatible with many cobot brands |
| Certification | CE · RoHS |

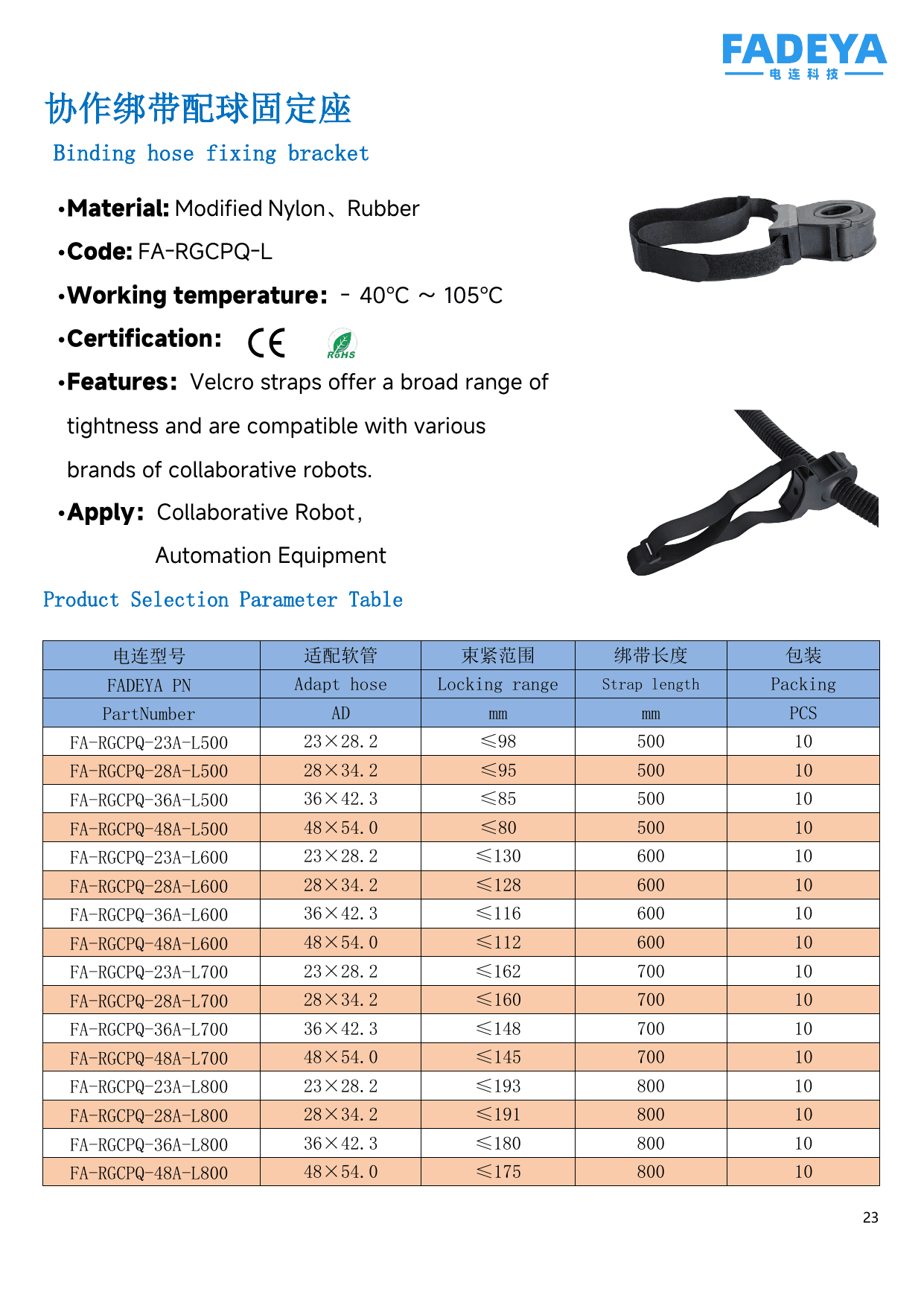

Datasheet
