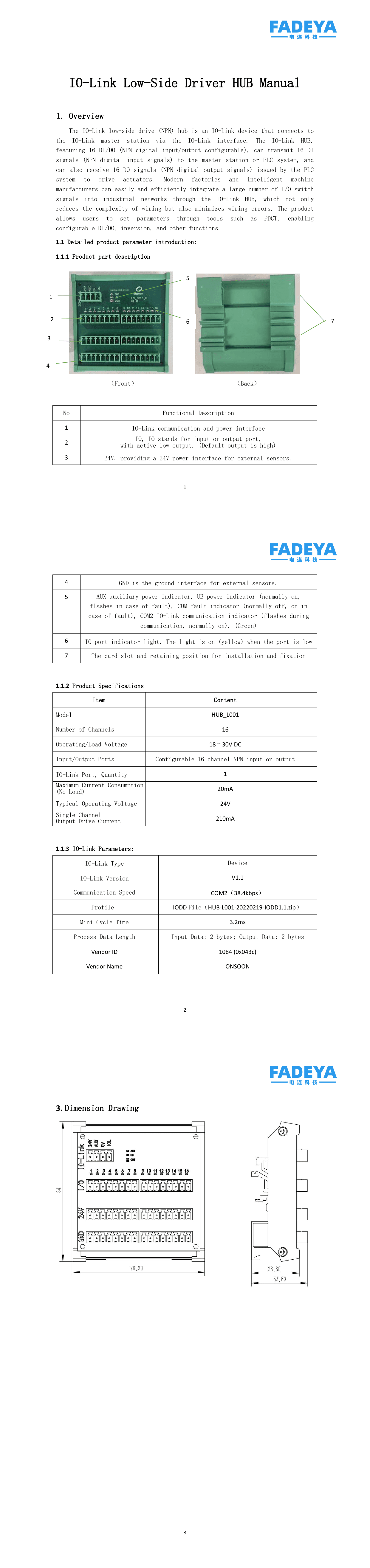

IO-Link I/O Hub, 16-Channel NPN, DIN-Rail Terminal Block
Download the complete PDF catalogue for full specifications and ordering details.
Part Numbers
HUB-NIO16-N20FE
Cable lengths can be customized. Coding follows protocol standard: PROFIBUS = B-Code (violet), DeviceNet = A-Code/7-8 (CAN), PROFINET/EtherNet-IP/EtherCAT = D-Code (green, CAT5e), 10G = X-Code (CAT6A).
Technical Parameters
| Channels | 16 × NPN digital I/O, each channel configurable as input or output |
| Supply Voltage | 18–30 V DC (24 V typical) |
| Output Drive Current | 210 mA per channel |
| Current Consumption | ≤20 mA (no load) |
| Io Link Version | V1.1, COM2 (38.4 kbps) |
| Io Link Ports | 1 |
| Min Cycle Time | 3.2 ms |
| Process Data Length | Input 2 bytes / Output 2 bytes |
| Iodd Identity | Vendor ONSOON (ID 1084 / 0x043C), product HUB_L001 |
| Configurable Functions | Port direction, input inversion, short-circuit recovery mode, fail-safe output state on communication loss (via IO-Link master / PDCT) |
| Protection | Per-channel short-circuit, overload and overtemperature protection with IO-Link diagnostic events |
| Connection | Screw terminal blocks (I/O, 24 V sensor supply, GND per channel) |
| Indicators | AUX / UB / COM / COM2 status LEDs, yellow LED per channel |
| Dimensions | 84 × 79.2 × 33.6 mm |
