IO-Link Input Hub, 16-Channel PNP, IP67, 8× M12
Download the complete PDF catalogue for full specifications and ordering details.
Part Numbers
HUB-PIO16-N67CB
Cable lengths can be customized. Coding follows protocol standard: PROFIBUS = B-Code (violet), DeviceNet = A-Code/7-8 (CAN), PROFINET/EtherNet-IP/EtherCAT = D-Code (green, CAT5e), 10G = X-Code (CAT6A).
Technical Parameters
| Channels | 16 × PNP digital inputs — 8 × M12 ports, 2 inputs per port |
| Io Link Port | M12×1 male, 4-pin, A-coded |
| Input Ports | M12×1 female, 5-pin, A-coded (pin 4 = Input 1, pin 2 = Input 2) |
| Supply Voltage | 18–30 V DC (24 V rated) |
| Rated Current | 4 A |
| Current Consumption | 50 mA |
| Io Link Version | V1.1, COM2 (38.4 kbps) |
| Min Cycle Time | 3 ms |
| Process Data Length | Input 2 bytes |
| Device Id | 5666960 |
| Sio Mode | Not supported |
| Port Protection | Short-circuit, overvoltage and undervoltage protection per port; configurable logic level per port |
| Housing Material | PA66 |
| IP Rating | IP65 / IP67 |
| Ambient Temperature | -25 °C to +60 °C |
| Dimensions | 152 × 60 × 35 mm |

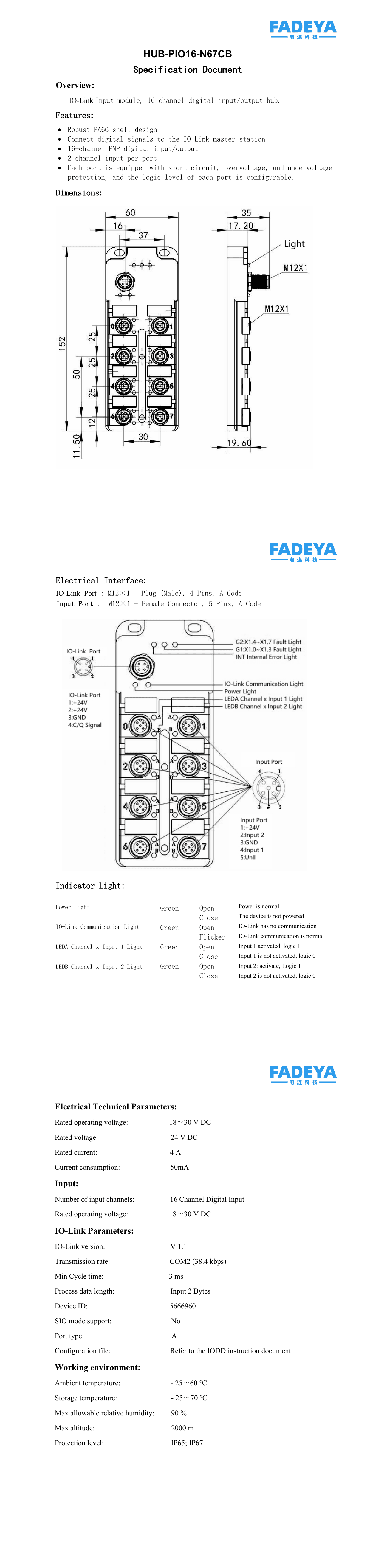

Datasheet
