PROFIBUS M12 B-Code Double-Ended Cable (Male–Female)
Download the complete PDF catalogue for full specifications and ordering details.
Part Numbers
M12B-M03S/F03S-2.0PVC/VT
M12B-M03S/F03S-2.0PUR/VT
M12B-M03A/F03A-2.0PVC/VT
M12B-M03A/F03A-2.0PUR/VT
Cable lengths can be customized. Coding follows protocol standard: PROFIBUS = B-Code (violet), DeviceNet = A-Code/7-8 (CAN), PROFINET/EtherNet-IP/EtherCAT = D-Code (green, CAT5e), 10G = X-Code (CAT6A).
Technical Parameters
| Rated Voltage | 125 V |
| Working Temp. | -25...+80°C |
| Connection | PreMold |
| Wire Gauge | 1 x 2 x Ø0.64 mm |
| IP Rating | IP67 |

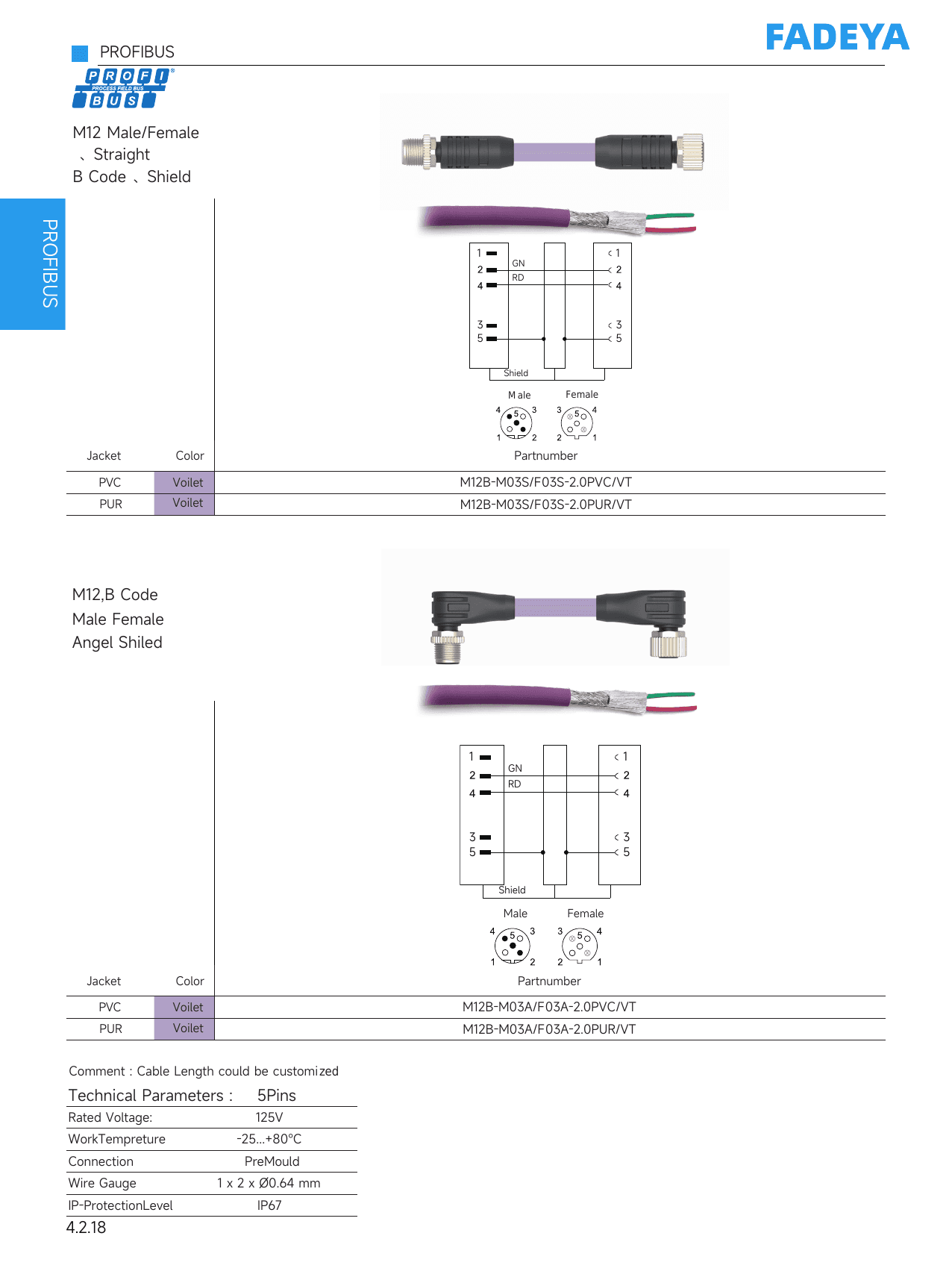

Datasheet
